X48 Aluminum Four-Sided Optical Rail System
X48 Aluminum Four-Sided Optical Rail System

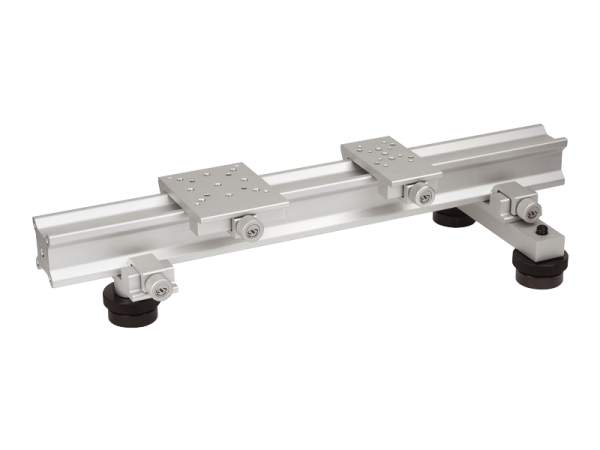

The X48 Series Rail System is made of solid, yet lightweight, aluminum with a symmetrical cruciform cross-section to accommodate its dovetail-style carriers on all four sides, which are mounted and removed easily. The unique shape of the rail also increases its longitudinal and torsional stiffness, despite its versatile profile.
- Solid aluminum rails with secure dovetail style mounting
- Unique cross section has four mounting surfaces & optimal rigidity
- Four rail lengths and two carrier lengths are available
- Compatible with a wide range of stages and mounts
- Excellent for larger optical systems See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | BCX48D 48 mm Aluminum Four-Sided Optical RailsDouble Foot Support Leg, X48 Series Optical Rails | |||||
| BCX48S 48 mm Aluminum Four-Sided Optical RailsSingle Foot Support Leg, X48 Series Optical Rails | |||||

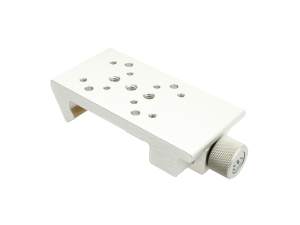

 | CXL48-50 48 mm Aluminum Four-Sided Optical RailsOptical Rail Carrier, X48, 50 mm Length, 1/4-20, 8-32 and 4-40 Thread | |||||

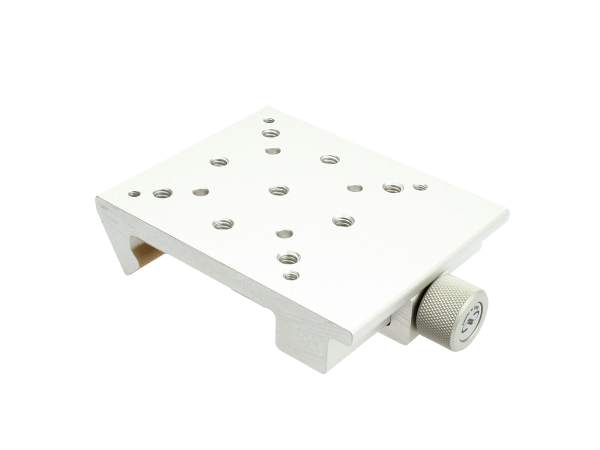

 | CXL48-80 48 mm Aluminum Four-Sided Optical RailsOptical Rail Carrier, X48, 80 mm Length, 1/4-20, 8-32 and 4-40 Thread | |||||

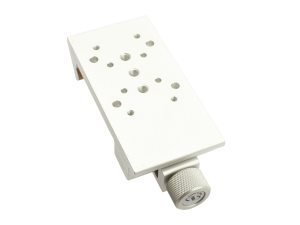

 | M-CXL48-50 48 mm Aluminum Four-Sided Optical RailsOptical Rail Carrier, X48, 50 mm Length, M3, M4, and M6 Thread | |||||

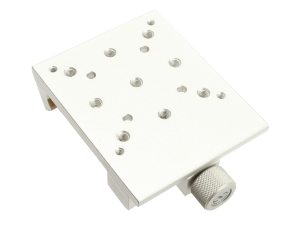

 | M-CXL48-80 48 mm Aluminum Four-Sided Optical RailsOptical Rail Carrier, X48, 80 mm Length, M3, M4, and M6 Thread | |||||
 | X48-0.5 48 mm Aluminum Four-Sided Optical RailsOptical Rail, Aluminum, 500 mm Length, M4 Threads, X48 Series | |||||
| X48-1 48 mm Aluminum Four-Sided Optical RailsOptical Rail, Aluminum, 1000 mm Length, M4 Threads, X48 Series | |||||
| X48-1.5 48 mm Aluminum Four-Sided Optical RailsOptical Rail, Aluminum, 1500 mm Length, M4 Threads, X48 Series | |||||
| X48-2 48 mm Aluminum Four-Sided Optical RailsOptical Rail, Aluminum, 2000 mm Length, M4 Threads, X48 Series |
Specifications
Features
Solid Aluminum with Dovetail Mounting
Rails and carriers of the X48 Series are made of solid aluminum to provide rigid, yet lightweight support to optical systems. The precision dovetail design allows components to be quickly attached or removed without disturbing other carriers or components. Aluminum housed, knurled knobs securely clamp carriers to the rail and eliminate contact between the screw shaft and the rail to prevent rail damage from over-tightening.
Unique Symmetrical Cruciform Shape Provides Four Mounting Surfaces

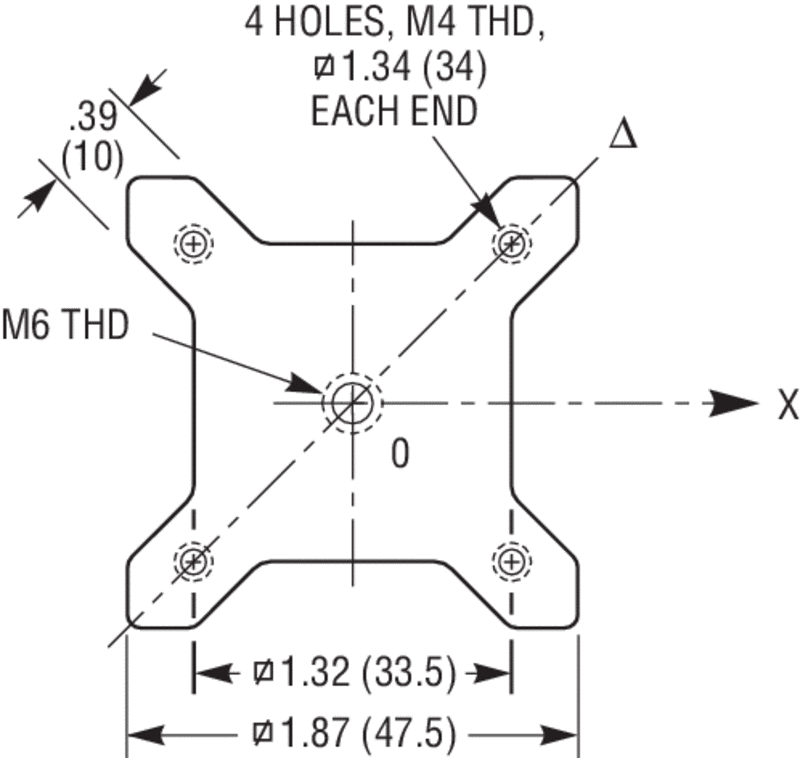

A symmetrical 47.5 mm cruciform cross-section accommodates dovetail-style carriers on all four sides for easy mounting and removal. The unique rail shape increases its longitudinal and torsional stiffness, despite its versatile profile.
48 mm Aluminum Optical Rail Carriers
CXL48 Series Carriers enable fast, easy mounting and secure clamping of components at any point along the rail. CXL48-50 and CXL48-80 Carriers are specially designed to support positioners with the 50 and 80 module size, respectively. Knurled knobs are used to securely clamp the carriers to the rail. A unique clamp design eliminates contact between the screw shaft and the rail for smoother sliding, more stable positioning, and prevention of possible rail damage from over-tightening. A stable optical bench can be built using the X48 rail with the BCX48S Single Foot and the BCX48D Double Foot. The feet are adjustable in height to assist in leveling the rail.
