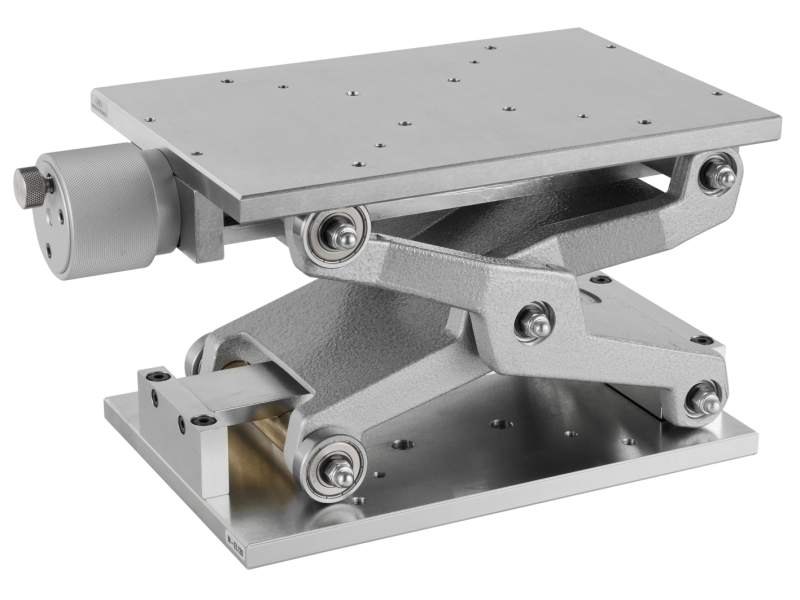

Lab Jack, Fast Travel, 120 mm Travel, 160 x 240 mm, 500 N, M5 and M6

The M-EL120 Fast Travel Lab Jack is a heavy-duty positioner with a high, 500 N, load capacity. This labjack is useful for 120 mm range positioning of heavier components with high precision and stability. Labjacks combine precision height adjustment in a stable design with a high load capacity.

When choosing a labjack, be sure to consider the vertical travel requirements, the load to be positioned, and the size of the lab jack. The upper and lower mounting plates have hole patterns that are compatible with many metric Newport products.

Specifications

Technical Specs

Travel Range
120 mm
Load Capacity
500 N
Thread Type
M5 and M6
Minimum Height
100 mm
Maximum Height
220 mm
Drive Screw Pitch
1.5 mm
Sensitivity
4.2 µm
Platform Size
160 x 240 mm
Material
Alloy Steel

Bearings
Bushing
Axes of Travel
Z
Drive Location
Center drive
Deflection Under Load
0.01 mm/N
Parallelism
5 mrad over travel range
Weight
11.2 kg

Travel Range
120 mm
Load Capacity
500 N
Thread Type
M5 and M6
Minimum Height
100 mm
Maximum Height
220 mm
Drive Screw Pitch
1.5 mm
Sensitivity
4.2 µm
Platform Size
160 x 240 mm
Material
Alloy Steel

Bearings
Bushing
Axes of Travel
Z
Drive Location
Center drive
Deflection Under Load
0.01 mm/N
Parallelism
5 mrad over travel range
Weight
11.2 kg

Resources & Downloads

Drawings And Cad

M-EL120-S(89.5 kB, PDF)

Other

M-EL M-EN RoHS Certificate.pdf(116.9 kB, PDF)
M-EL120 REACH Certificate.pdf(119.7 kB, PDF)
