Complete Platform Assembly, 6.0 in. Height, 1/4-20 Thread

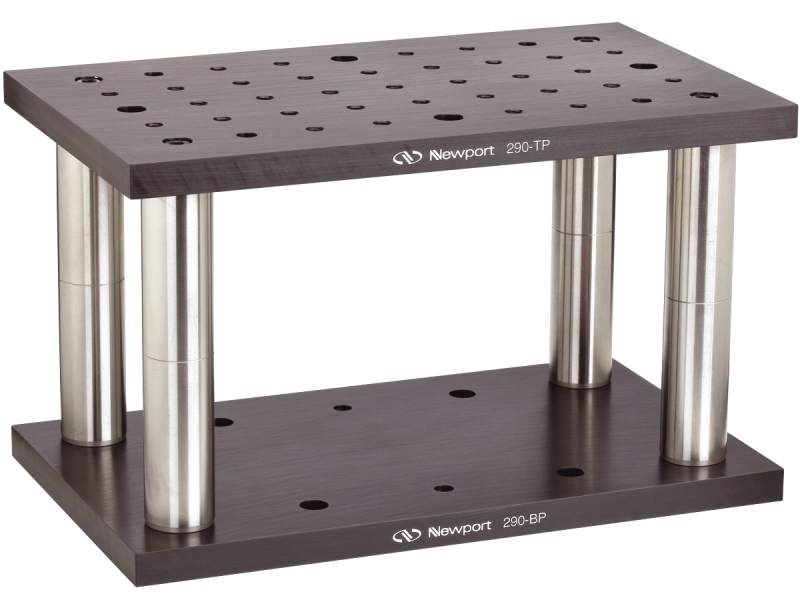

The 290-6 Fixed Height Platform Assembly provides a stable, 6.0 in. fixed-height mounting platform for large components and assemblies. The platform is comprised of thick anodized aluminum plates and rigid steel posts with a durable, satin-chrome finish. The top plate is 6.0 x 10.0 in. and has (12) 1/4-20 CLR holes and (33) 1/4-20 thread mounting holes for attaching components. The base plate is 6.0 x 10.0 in. and has (10) 1/4-20 CLR holes for tie-down to tables or magnetic bases. Four steel posts connect the plates. All components are available in sets or separately.

Specifications

Technical Specs

Type
Platform Assembly
Height
152.4 mm

Material
Aluminum

Type
Platform Assembly
Height
152.4 mm

Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

290 DWG-S(131.3 kB, PDF)

Other

290-6 RoHS Certificate(0, PDF)
