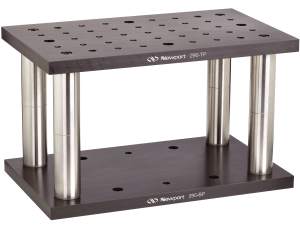

290 Series Platforms provide stable, fixed-height mounting for large components and assemblies. The 6 x 10 in. (152.4 x 254 mm) platforms are comprised of thick anodized aluminum plates mounted atop four rigid 1 in. (25.4 mm) diameter stainless steel posts.
- Stable, fixed height platform for large components
- Rigid stainless steel posts
- 4 in. (100.4 mm), 6 in. (150.4 mm), or 8 in. (200.4 mm) heights See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 290-4 Fixed Height Optical PlatformsComplete Platform Assembly, 4.0 in. Height, 1/4-20 Thread | |||||
 | 290-6 Fixed Height Optical PlatformsComplete Platform Assembly, 6.0 in. Height, 1/4-20 Thread | |||||
 | 290-8 Fixed Height Optical PlatformsComplete Platform Assembly, 8.0 in. Height, 1/4-20 Thread | |||||
 | 290-SET Fixed Height Optical PlatformsComplete Platform Set, 4, 6, and 8 in. Height, 1/4-20 Thread | |||||
 | M-290-4 Fixed Height Optical PlatformsComplete Platform Assembly, 100.4 mm Height, M6 Thread | |||||
 | M-290-6 Fixed Height Optical PlatformsComplete Platform Assembly, 150.4 mm Height, M6 Thread | |||||
 | M-290-8 Fixed Height Optical PlatformsComplete Platform Assembly, 200.4 mm Height, M6 Thread | |||||
| M-290-SET Fixed Height Optical PlatformsComplete Platform Set, 100.4, 150.4, and 200.4 mm Height, M6 Thread |
Features
Stable Fixed Height Mounting Platform
290 Series platforms use 1.0 inch (25.4 mm) diameter pedestal pillars and 0.5 inch (12.7 mm) thick solid aluminum breadboard plates to create very stable mounting platforms at a fixed 4 in. (100.4 mm), 6 in. (150.4 mm), or 8 in. (200.4 mm) height. They are available with metric or Imperial threads.
Versatile Top Mounting Plate
The top plate has an array of tapped and clearance mounting holes for attaching components. The bottom plate has two rows of clearance holes for tie-down to tables or magnetic bases. Both plates are included with the assembly and can be also ordered independently.
Accessories
Platform Pillars
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-P-3 Optical Post, 75 mm Height, 25.4 mm Diameter, M6, 290 Series Platform | |||||
 | M-P-5 Optical Post, 125 mm Height, 25.4 mm Diameter, M6, 290 Series Platform | |||||
 | M-P-7 Optical Post, 175 mm Height, 25.4 mm Diameter, M6, 290 Series Platform | |||||
| P-3 Optical Post, 3 in. Height, 1 in. Diameter, 1/4-20, 290 Series Platform | |||||
| P-5 Optical Post, 5 in. Height, 1 in. Diameter, 1/4-20, 290 Series Platform | |||||
 | P-7 Optical Post, 7 in. Height, 1 in. Diameter, 1/4-20, 290 Series Platform |
Platform Plates
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 290-BP Base Plate, Fixed Height Platform, 10 in. x 6 in., (10) 1/4-20 CLR. | |||||
 | 290-TP Top Plate, Fixed Height Platform, 6 x 10 in., 1/4-20 Thread, (12) 1/4-20 CLR. | |||||
 | M-290-BP Top Plate, Fixed Height Platform, 254 mm x 152.5 mm, M6 Thread, (10) M6 CLR. | |||||
 | M-290-TP Top Plate, 254.0 mm x 152.5 mm, 33 holes M6 Thread, 12 holes M6 CLR. |
