Complete Platform Assembly, 150.4 mm Height, M6 Thread

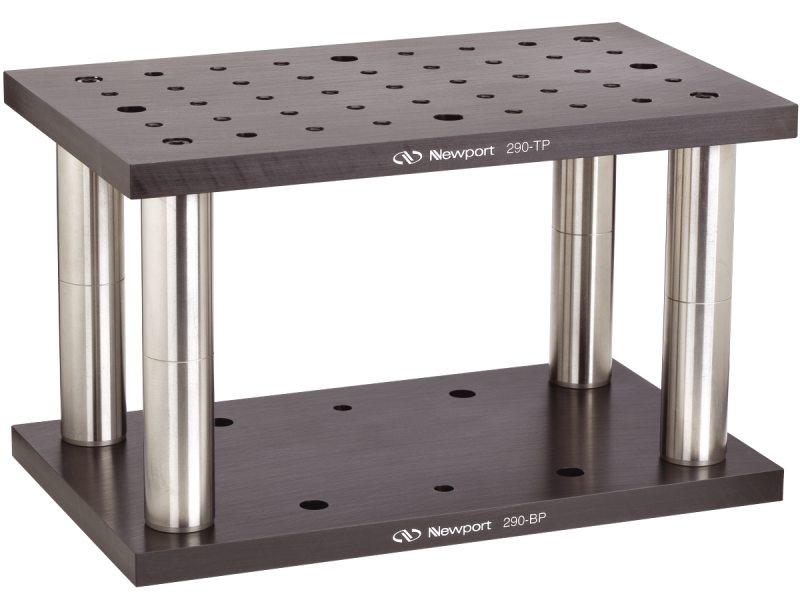

The M-290-6 Fixed Height Platform Assembly provides a stable, 150.4 mm fixed-height mounting platform for large components and assemblies. The platform is comprised of thick anodized aluminum plates and rigid steel posts with a durable, satin-chrome finish. The top plate is 254 x 152.5 mm and has (12) M6 CLR holes, and (33) M6 thread holes for attaching components. The base plate is 254 x 152.5 mm and has (10) M6 CLR holes for tie-down to tables or magnetic bases. Four steel posts connect the plates. All components are available in sets or separately.

Specifications

Technical Specs

Type
Platform Assembly
Height
150.4 mm

Material
Aluminum

Type
Platform Assembly
Height
150.4 mm

Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

290 DWG-S(131.3 kB, PDF)

Other

M-290-6 RoHS Certificate(284.6 kB, PDF)
