XY Linear Stage, 13 mm Travel, M6 Thread, Aperture

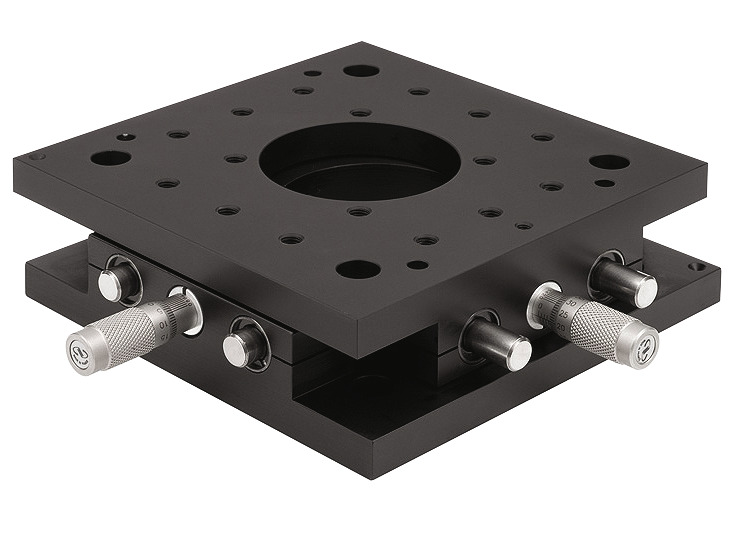

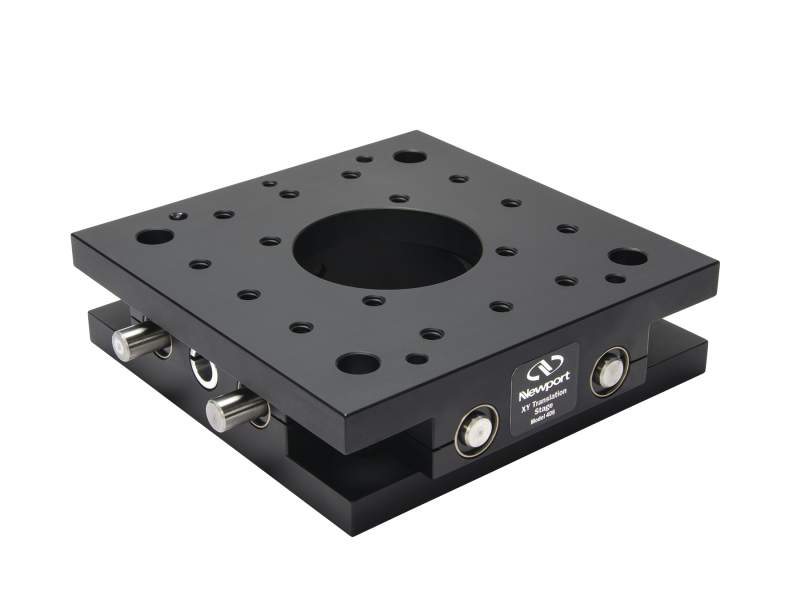

The M-406 High-Performance Large Platform Integrated Two-Axis Linear Stage integrates two orthogonal positioners into a single low profile unit. This stage offers high load capacity in a design based on three parallel plates. Bearing blocks in the top and bottom plates hold pre-loaded linear ball bushings. The inner plate supports pairs of hardened and polished steel rods that ride in the bushings. Backlash is eliminated by spring loading the moving assemblies against the tip of the actuator. The stages may be mounted in any orientation. This stages has a 57.1 mm diameter aperture platform and features a convenient array of M6 tapped holes. Actuators are not included. We recommend our SM-13, DM-13, HR-13, or DM-13L micrometers, our AJS-100-0.5 adjustment screw, and our LTA-HS motorized actuator.

Integrated Orthogonal Translation for Minimal Profile

These stages are comprised of two orthogonal, translating supports to provide a low profile for dual-axis translation of the mounting surface. Either a solid or apertured mounting plate is available, and each axis supports either manual or motorized Newport actuators.

Large Working Area

A large working area and robust design of three parallel plates provides smooth translation of up to 100 lb. of load, despite the lightweight aluminum construction. Backlash is prevented by as spring loaded actuator assembly. Additionally, these stages can be mounted in any orientation and maintain specifications. The mounting platform features a full array of 1/4-20 or M6 tapped holes. The 2.25 in. (57.2 mm) diameter aperture of Model 406 closes to a minimum of 1.875 in. (47.6 mm) at the maximum diagonal displacement of the stage.

Easy Interchange Actuators

The stages are sold without actuators to allow the comprehensive selection of manual or motorized actuators to choose from. The video shows quick and easy actuator changes on any axis, at any time.

Ball-bearings Provide Smooth Travel

Pre-loaded, stainless steel ball-bearings provide smooth travel for the high load capacity of these stages over each axis over 0.5 in. with <200 µrad deviation.

Specifications

Technical Specs

Stage Type
Aperture Platform
Axes of Travel
X, Y
Maximum Stage Travel
13 mm
Centered Normal Load Capacity
450 N
Vertical Axial Load Capacity
67 N
Angular Deviation
<200 µrad
Material
Aluminum
Bearings
Single-Row Ball Bearings
Drive Location
Center drive
Platform Size
139.7 x 139.7 mm
Aperture Diameter
57.1 mm

Height
43.7 mm
Thread Type
M6
Recommended Adjustment Screw
AJS100-0.5
Recommended Vernier Micrometer
SM-13
Recommended DM Differential Micrometer
DM-13
Recommended Lockable Micrometer
DM-13L
Recommended TRA Motorized Actuator
TRA12CC or TRA12PPD
Recommended TRB Motorized Actuator
TRB12CC or TRB12PP

Stage Type
Aperture Platform
Axes of Travel
X, Y
Maximum Stage Travel
13 mm
Centered Normal Load Capacity
450 N
Vertical Axial Load Capacity
67 N
Angular Deviation
<200 µrad
Material
Aluminum
Bearings
Single-Row Ball Bearings
Drive Location
Center drive
Platform Size
139.7 x 139.7 mm
Aperture Diameter
57.1 mm

Height
43.7 mm
Thread Type
M6
Recommended Adjustment Screw
AJS100-0.5
Recommended Vernier Micrometer
SM-13
Recommended DM Differential Micrometer
DM-13
Recommended Lockable Micrometer
DM-13L
Recommended TRA Motorized Actuator
TRA12CC or TRA12PPD
Recommended TRB Motorized Actuator
TRB12CC or TRB12PP

Resources & Downloads

Drawings And Cad

406-DWG-S(107.5 kB, PDF)

Other

M-406 RoHS Certificate(279.1 kB, PDF)
