Large Platform, XY Aluminum Linear Stages
Large Platform, XY Aluminum Linear Stages

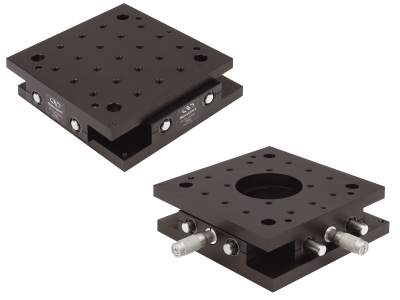

The 401 and 406 Series High-Performance Large Platform Two-Axis Linear Stages are comprised of two orthogonal, translating supports to provide a single low profile unit with a large working area capable of supporting up to 100 lb. load.
- Integrated, orthogonal translation provides minimal profile for XY travel
- Large working area provides XY translation for multiple components
- Linear shaft-bushing with recirculating ball bearings for smooth travel with <200 µrad deviation
- Compatible with Newport manual and motorized actuators See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 401 Large Platform, XY, Ball Bearing StagesXY Linear Stage, 13 mm Travel, 1/4-20 Thread | |||||
 | 406 Large Platform, XY, Ball Bearing StagesXY Linear Stage, 13 mm Travel, 1/4-20 Thread, Aperture | |||||
| M-401 Large Platform, XY, Ball Bearing StagesXY Linear Stage, 13 mm Travel, M6 Thread | |||||
| M-406 Large Platform, XY, Ball Bearing StagesXY Linear Stage, 13 mm Travel, M6 Thread, Aperture |
Specifications
Recommended Actuators
Features
Integrated Orthogonal Translation for Minimal Profile
These stages are comprised of two orthogonal, translating supports to provide a low profile for dual-axis translation of the mounting surface. Either a solid or apertured mounting plate is available, and each axis supports either manual or motorized Newport actuators.
Large Working Area

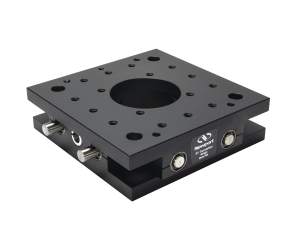

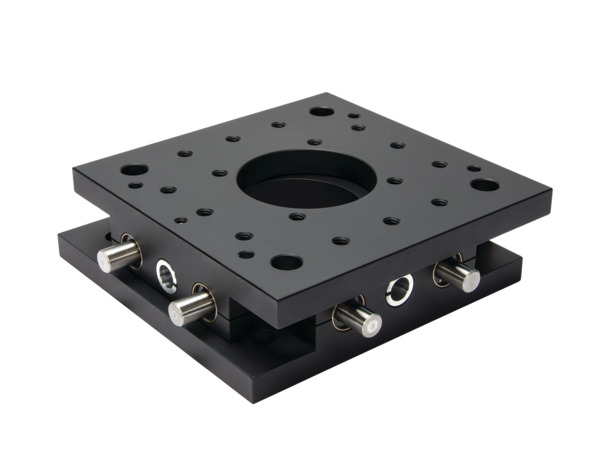

A large working area and robust design of three parallel plates provides smooth translation of up to 100 lb. of load, despite the lightweight aluminum construction. Backlash is prevented by as spring loaded actuator assembly. Additionally, these stages can be mounted in any orientation and maintain specifications. The mounting platform features a full array of 1/4-20 or M6 tapped holes. The 2.25 in. (57.2 mm) diameter aperture of Model 406 closes to a minimum of 1.875 in. (47.6 mm) at the maximum diagonal displacement of the stage.
Easy Interchange Actuators
The stages are sold without actuators to allow the comprehensive selection of manual or motorized actuators to choose from. The video shows quick and easy actuator changes on any axis, at any time.
Ball-bearings Provide Smooth Travel
Pre-loaded, stainless steel ball-bearings provide smooth travel for the high load capacity of these stages over each axis over 0.5 in. with <200 µrad deviation.
Accessories
Recommended Actuators
401/406 Stages require 2 actuators that are not included. See recommended actuators below.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | AJS100-0.5 Adjustment Screw, 100 TPI, 12.7 mm Travel, Small Knob, Side Lock | |||||
 | DM-13 Differential Micrometer Head, 13.0 mm Coarse, 0.2 mm Fine, 5 lb. Load | |||||
 | DM-13L Lockable Differential Micrometer, 13 mm Coarse, 0.2 mm Fine, 11 lb. | |||||
 | HR-13 Micrometer Head, High Resolution, 0.5 µm Sensitivity, 13 mm Travel | |||||
 | SM-13 Vernier Micrometer, 13 mm Travel, 9 lb. Load Capacity, 50.8 TPI |
