AJS High-Precision Adjustment Screws

AJS Series fine adjustment screws have precision rolled or cut threads and proprietary lubrication for exceptionally smooth adjustment and higher sensitivity than standard micrometers. With sub-micron sensitivity, they are a cost-effective alternative to micrometers where position readout is not required.

Up to 254 TPI thread pitch
Patented non-influencing end locks
Industry-Standard mounting interface
Knob or Hex-Key driven versions

See All Features

Show Filters:

Showing 30 of 30 total products

Compatibility:

Description	Compatibility	Travel Range	Adjustment Screw Thread	Drive Type	Axial Load Capacity	Lock	Price

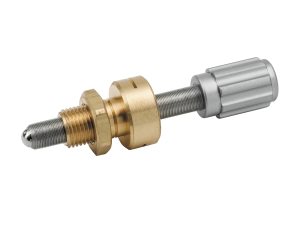

AJS100-0.5 AJS High-Precision Adjustment Screws Adjustment Screw, 100 TPI, 12.7 mm Travel, Small Knob, Side Lock	UNIVERSAL	12.7 mm	1/4-100	Knob	90 N	Side Lock	$39

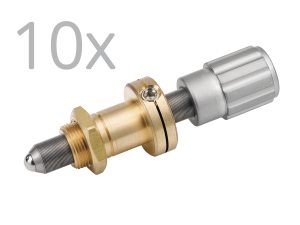

AJS100-0.5-PK AJS High-Precision Adjustment Screws Adjustment Screw, 100 TPI, 12.7 mm, Small Knob, Side Lock, Pack of 10	UNIVERSAL	12.7 mm	1/4-100	Knob	90 N	Side Lock	$351

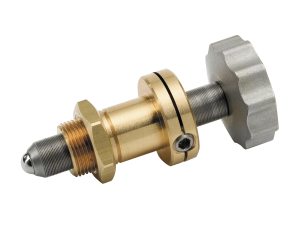

AJS100-0.5K AJS High-Precision Adjustment Screws Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob, Side Lock	UNIVERSAL	12.7 mm	1/4-100	Knob	90 N	Side Lock	$39

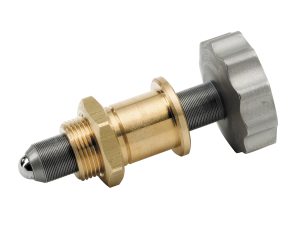

AJS100-0.5K-NL AJS High-Precision Adjustment Screws Adjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob	UNIVERSAL	12.7 mm	1/4-100	Knob	90 N	No Lock	$32

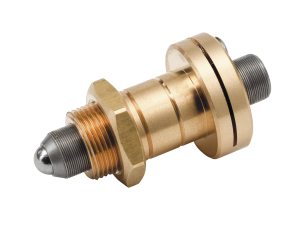

AJS100-02H AJS High-Precision Adjustment Screws Hex Adjustment Screw, 100 TPI, 6.35 mm Travel, End Lock	UNIVERSAL	6.4 mm	1/4-100	Hex	90 N	End Lock	$39

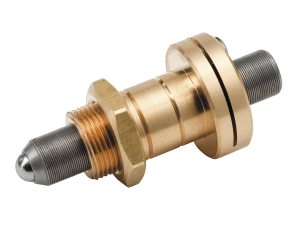

AJS127-02H AJS High-Precision Adjustment Screws Hex Adjustment Screw, 127 TPI, 6.35 mm Travel, End Lock	UNIVERSAL	6.4 mm	1/4-127	Hex	90 N	End Lock	$53

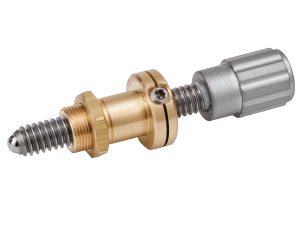

AJS20-0.5 AJS High-Precision Adjustment Screws Adjustment Screw, 20 TPI, 12.7 mm Travel, Small Knob, Side Lock	UNIVERSAL	12.7 mm	1/4-20	Knob	90 N	Side Lock	$56
AJS8-100-0.5 AJS High-Precision Adjustment Screws Miniature Adjustment Screw, 100 TPI, 12.7 mm, Small Knob, Side Lock	UNIVERSAL	12.7 mm	8-100	Knob	45 N	Side Lock	$36

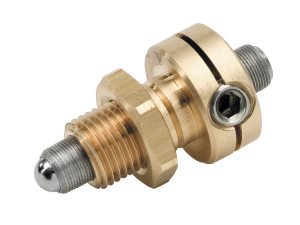

AJS8-100-0.5H AJS High-Precision Adjustment Screws Hex Adjustment Screw, Miniature, 100 TPI, 12.7 mm Travel, Side Lock	UNIVERSAL	12.7 mm	8-100	Hex	45 N	Side Lock	$36

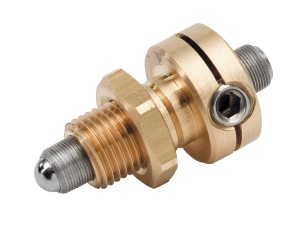

AJS8-100-02H AJS High-Precision Adjustment Screws Hex Adjustment Screw, Miniature, 100 TPI, 6.35 mm Travel, Side Lock	UNIVERSAL	6.4 mm	8-100	Hex	45 N	Side Lock	$36

Show All

Features

TPI for Every Application

TPI stands for threads per inch and Newport's AJS screws are available in five different thread pitches to cover the sensitivity requirements of every application. Higher TPI provides for a shorter thread pitch with higher sensitivity to a 1° rotation of the adjustment screw. High-precision 254, 170, 127, 100, or 20 TPI, rolled stainless steel threads are mated with the collet and proprietary lubricant for stictionless movement.

Patented Non-influencing Locks

Our patented thread-pitch lock secures the adjustment screw from turning by simply tightening a setscrew. Engaging or disengaging the thread-pitch lock, now standard, won't influence the screw position. Versions with knobs have the lock screw on the side, while hex versions have the lock screw conveniently located on the end next to the drive screw. A single wrench is used for both adjustment and locking. Non-locking, 12.7 mm travel versions are also available for use in optical mounts.

Faster Alignment Times

High TPI adjusters have a clear sensitivity and alignment time advantage. This graph shows the results of alignment time testing of the Ultima Mirror mount with adjustment screws having 80, 100, 127 and 170 TPI.

Choose the Sensitivity You Need

170 TPI AJS adjustment screws provide a significant improvement in sensitivity over typical adjustment screws. 254 TPI versions are now available.

Sized to Fit Mounts and Stages

Newport's AJS adjustment screws have 9.5 mm industry standard mounting shanks allowing them to fit most optical mounts and linear stages where micrometer heads can be used.

One Hex Tool for Both Adjustment and Locking

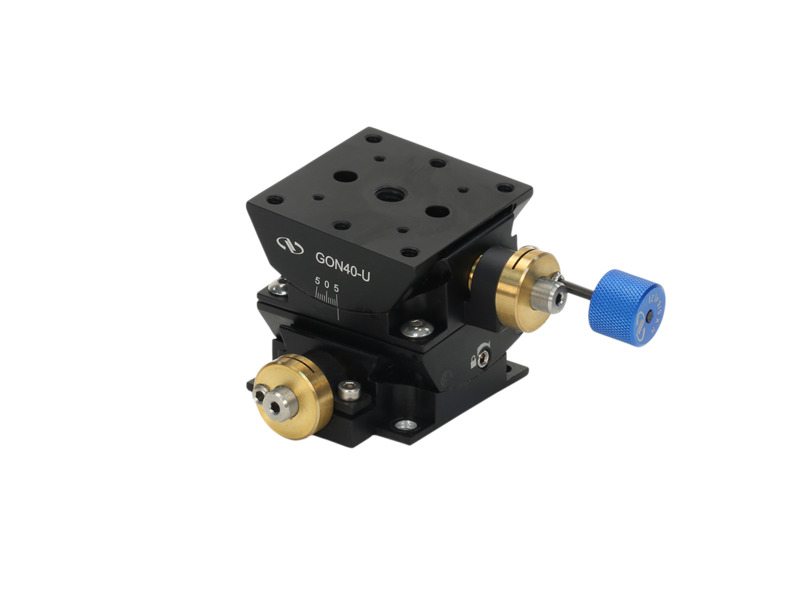

New hex adjustment knobs are now available for precise fingertip control of the hex adjustment screws in a compact optical system. Longer hex than competitor products allows access to both the adjuster and the lock, enabling convenient adjustment and locking by the same tool HX.078-2M-PK.

Optional Adjustment Knobs

AJS adjustment screws are offered with a knob or hex adjustment. KD.37 and KD.75 stainless steel knobs are available as an accessory for use with the hex adjustment versions. The knobs feature an integral 5/64-in. (2-mm) hex hey for increased adjustment sensitivity.

Cost Saving Packs

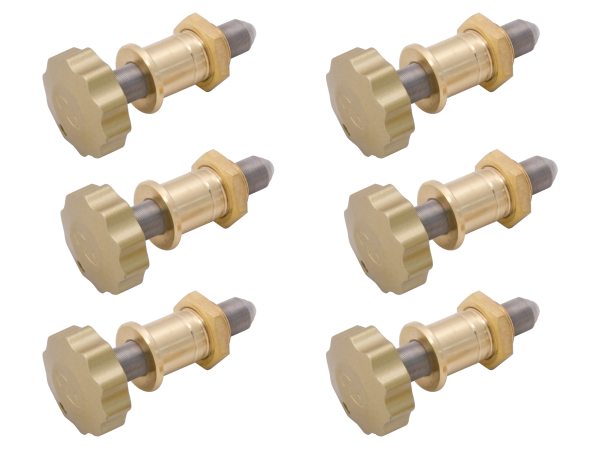

AJS adjustment screws are offered in cost saving packs of 6 or 10 for OEM applications or to facilitate the upgrade of Ultima and Suprema mirror mounts.

Accessories

Adjustment Knobs

These knobs are designed to work with hex adjustable AJS Series adjustment screws.

Description	Compatibility	Price
HX.078-2M-PK Hex Adjustment Knob, 5/64" (2.0 mm), 4 Pack	UNIVERSAL	$29
KD.37 Small Adjustment Knob, 2.0 mm Hex Key, Silver	UNIVERSAL	$9.30
KD.75 Large Adjustment Knob, 2.0 mm Hex Key, Silver	UNIVERSAL	$10.70
