Our low outgassing adjustment screws are designed for demanding vacuum environments.
- 100 or 170 TPI thread pitch
- Designed for 10-6 Torr Vacuum Applications
- Integrated Locks, Allen Key Adjustment
- Miniature and Standard Versions See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
![]() | AJS100-0.5H-V6 Low Outgassing Adjustment ScrewsHex Adjustment Screw, 100 TPI, 12.7 mm Travel, End Lock, Vacuum | |||||

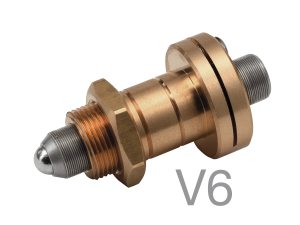

![]() | AJS100-02H-V6 Low Outgassing Adjustment ScrewsHex Adjustment Screw, 100 TPI, 6.35 mm Travel, End Lock, Vacuum | |||||
![]() | AJS100-1H-V6 Low Outgassing Adjustment ScrewsHex Adjustment Screw, 100 TPI, 25.4 mm Travel, End Lock, Vacuum | |||||
![]() | AJS170-0.5H-NL-V6 Low Outgassing Adjustment ScrewsHex Adjustment Screw, 170 TPI, 12.7 mm Travel, Vacuum | |||||

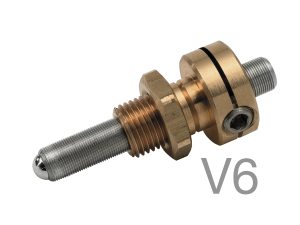

![]() | AJS8-100-0.5H-V6 Low Outgassing Adjustment ScrewsMiniature Adjustment Screw, 100 TPI Hex, 12.7 mm, Side Lock, Vacuum |
Specifications
Features
Designed for Vacuum Applications

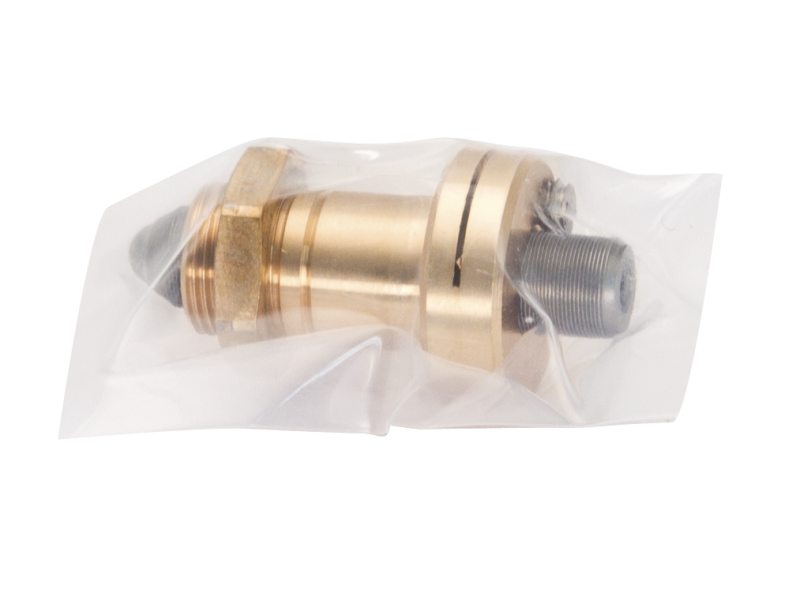

Our low outgassing adjustment screws are designed for demanding vacuum environments. Several key steps are taken in the design, assembly and packaging of these parts. We incorporate metals into our designs that are known to be vacuum compatible and desired or approved for use in vacuum systems. In particular, bronze is used in place of brass to eliminate the presence of zinc, which will actually sublimate in a vacuum environment. Following the machining of the screw and bushing, each component is chemically cleaned in an ultrasonic bath to remove contaminating substances. These screws are cleanroom assembled using vacuum compatible lubricants.
