Vacuum Compatible Picomotor™ Piezo Linear Actuators

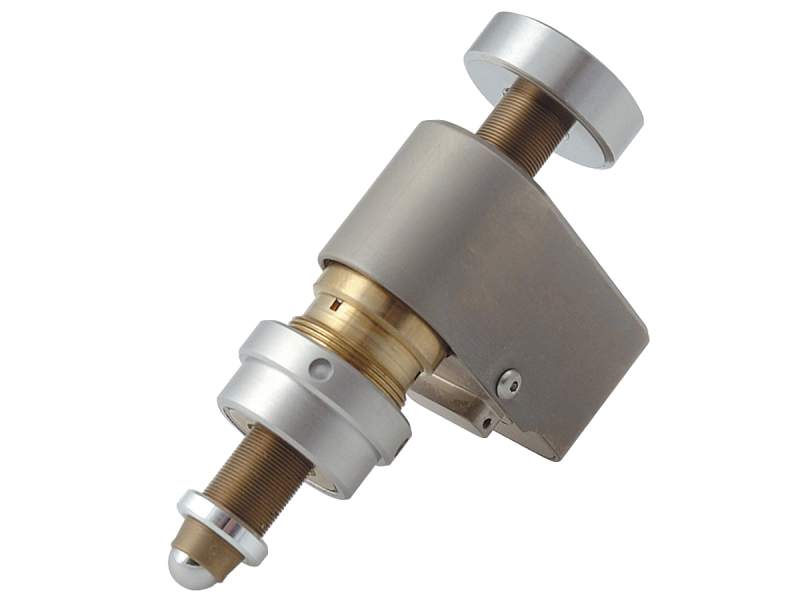

Our popular Picomotor™ piezo linear actuators are available in non-magnetic, vacuum and ultra-high vacuum compatible versions. They offer the same exceptional precision, small step sizes, and set-and-forget stability as the standard Picomotor actuators. Ultra-High Vacuum Picomotor™ Actuators with Kapton wires can be used in high radiation applications, as well as for VUV/EUV applications.

Non-Magnetic, Vacuum and ultra-high vacuum versions
<30 nm linear resolution
Set-and-forget long-term stability
Teflon or Kapton wires

See All Features

Description	Compatibility	Price
8301-UHV Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, Ultra-High Vacuum, 0.5 in. Travel, 0.375 in. Shank	UNIVERSAL	$1,418
8301-UHV-KAP Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, Ultra-High Vacuum, 0.5 in., .375 in. Shank, Kapton	UNIVERSAL	$1,675

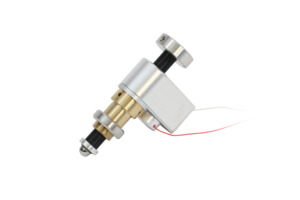

8301-V Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, 0.5 in. Travel, 0.375 in. Shank, Vacuum Compatible, Teflon	UNIVERSAL	$1,086
8302-UHV Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, Ultra-High Vacuum, 1.0 in. Travel, 0.375 in. Shank	UNIVERSAL	$1,418

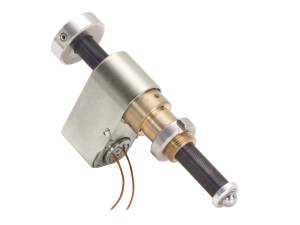

8302-UHV-KAP Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, Ultra-High Vacuum, 1.0 in., .375 in. Shank, Kapton	UNIVERSAL	$1,635
8302-V Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, Vacuum Compatible, 1.0 in. Travel, 0.375 in. Shank	UNIVERSAL	$1,086
8321-UHV Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, Ultra-High Vacuum, 0.5 in., 12 x 0.5 mm Thread	UNIVERSAL	$1,418
8321-UHV-KAP Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, Ultra-High Vacuum, 0.5 in., 12x.5 mm Thread, Kapton	UNIVERSAL	$1,657
8321-V Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, Vacuum Compatible, 12.7 mm Travel, 12x0.5 mm Thread	UNIVERSAL	$1,086
8322-V Vacuum Picomotor Piezo ActuatorsPicomotor Actuator, Vacuum Compatible, 25.4 mm Travel, 12x0.5 mm Thread	UNIVERSAL	$1,086

Show All

Features

Vacuum and Ultra-High Vacuum Compatible

The vacuum versions of the Picomotor actuators can be used in vacuum (10^-6 Torr) environments and the ultra-high vacuum versions of the Picomotor actuators can be used in UHV (10^-9 Torr) environments as well as VUV/EUV applications.

<30 nm Positioning Resolution

Our Picomotor actuators have a step size of less than 30 nm per step, allowing for very small, controlled movements. Note that the step size for open-loop picomotors varies from step to step and between forward and backward directions, and is directly related to payload – hence, position feedback should be provided by an external signal when operating an open-loop picomotor. For vacuum applications requiring absolute position calibration and high repeatability, consider a Vacuum Compatible Closed-Loop Picomotor actuator.

Teflon or Kapton Wires

All of our vacuum compatible and ultra-high vacuum compatible Picomotor actuators come with short, Teflon-coated leads so you can make connections to your vacuum-chamber feedthrough. If, however, you are working with X-rays or other high-radiation applications, we offer versions with Kapton-coated wire extensions.

Easy-to-Use, Flexible Controllers and Drivers

We offer both Open-Loop Picomotor controllers and drivers as well as Closed-Loop Picomotor controllers and drivers. You have two interface options with the controller system: hand pad or computer, both providing plug-and-play use. Alternatively for open-loop actuators, you may choose to use our TTL/Analog Picomotor driver.

Set-and-Forget Long-Term Stability

The Picomotor actuator moves when voltage is applied to the piezo, changing its length and in turn moving the jaws which turn the screw. When no power is applied, the actuator does not move. You can feel confident that your set-up will stay put, even when you power down your system.

Substantial Force

With a load capacity of 5 lbs (22 N) for our standard sized Picomotor actuators and 3 lbs (13 N) for our tiny Picomotor actuator, they feature a substantial push force.
