Fine Thread Adjustment Screw Components

Fine adjustment screw components provide the same precision rolled threads used on our AJS series of Adjustment Screws and provide exceptionally smooth adjustment for OEM systems applications. Included in this product group are 100-TPI screws with either #8 or 0.25-in. diameters, a selection of color-anodized aluminum knobs that can be screwed on to the end of the screws, brass lock nuts, and taps.

100 TPI thread pitch
Screws, knobs, locks, and taps for OEM applications
Knobs thread on to screws and available in five colors
#8-100 or 1/4-100 Taps and chucks available

See All Features

Show Filters:

Showing 29 of 29 total products

Compatibility:

Description	Compatibility	Type	Adjustment Screw Thread	Length	Material	Pack Quantity	Price

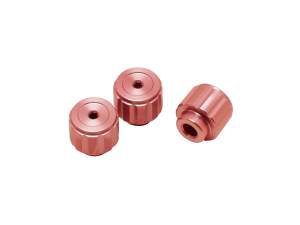

KN-10ER-3Threaded Knob, 8-100, Red Anodized, 3-Pack	UNIVERSAL	Threaded Knob	8-100		Red Anodized Aluminum	3	$23
KN-10EB-3Threaded Knob, 8-100, Blue Anodized, 3-Pack	UNIVERSAL	Threaded Knob	8-100		Blue Anodized Aluminum	3	$23
KN-10EG-3Threaded Knob, 8-100, Green Anodized, 3-Pack	UNIVERSAL	Threaded Knob	8-100		Green Anodized Aluminum	3	$21

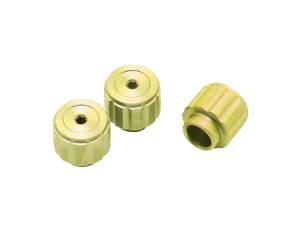

KN-10EY-3Threaded Knob, 8-100, Yellow Anodized, 3-Pack	UNIVERSAL	Threaded Knob	8-100		Yellow Anodized Aluminum	3	$21

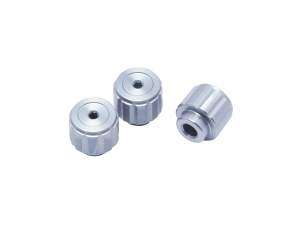

KN-10ES-3Threaded Knob, 8-100, Silver Anodized, 3-Pack	UNIVERSAL	Threaded Knob	8-100		Silver Anodized Aluminum	3	$23
KN-10QR-3Threaded Knob, 1/4-100, Red Anodized, 3-Pack	UNIVERSAL	Threaded Knob	1/4-100		Red Anodized Aluminum	3	$23

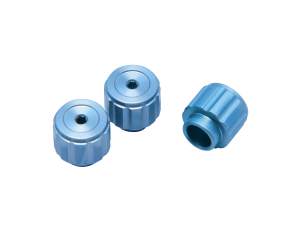

KN-10QB-3Threaded Knob, 1/4-100, Blue Anodized, 3-Pack	UNIVERSAL	Threaded Knob	1/4-100		Blue Anodized Aluminum	3	$21
KN-10QG-3Threaded Knob, 1/4-100, Green Anodized, 3-Pack	UNIVERSAL	Threaded Knob	1/4-100		Green Anodized Aluminum	3	$21
KN-10QY-3Threaded Knob, 1/4-100, Yellow Anodized, 3-Pack	UNIVERSAL	Threaded Knob	1/4-100		Yellow Anodized Aluminum	3	$20
KN-10QS-3Threaded Knob, 1/4-100, Silver Anodized, 3-Pack	UNIVERSAL	Threaded Knob	1/4-100		Silver Anodized Aluminum	3	$21

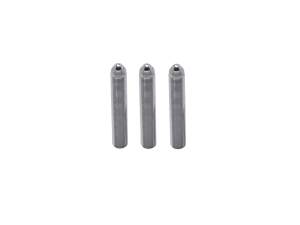

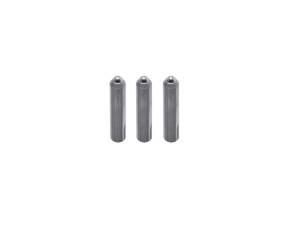

SW-10E1-3Adjustment Screw Pack, 8-100 Thread, 15.2 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	8-100	15.2 mm	Stainless Steel	3	$18.70
SW-10E2-3Adjustment Screw Pack, 8-100 Thread, 22.4 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	8-100	22.4 mm	Stainless Steel	3	$23
SW-10E3-3Adjustment Screw Pack, 8-100 Thread, 29.5 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	8-100	29.5 mm	Stainless Steel	3	$27
SW-10E4-3Adjustment Screw Pack, 8-100 Thread, 32.8 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	8-100	32.8 mm	Stainless Steel	3	$29
SW-10E5-3Adjustment Screw Pack, 8-100 Thread, 51.8 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	8-100	51.8 mm	Stainless Steel	3	$32
SW-10E6-3Adjustment Screw Pack, 8-100 Thread, 63.5 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	8-100	63.5 mm	Stainless Steel	3	$37
SW-10Q1-3Adjustment Screw Pack, 1/4-100 Thread, 17.8 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	1/4-100	17.8 mm	Stainless Steel	3	$20
SW-10Q2-3Adjustment Screw Pack, 1/4-100 Thread, 23.4 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	1/4-100	23.4 mm	Stainless Steel	3	$24
SW-10Q3-3Adjustment Screw Pack, 1/4-100 Thread, 28.5 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	1/4-100	28.5 mm	Stainless Steel	3	$28
SW-10Q4-3Adjustment Screw Pack, 1/4-100 Thread, 32.8 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	1/4-100	32.8 mm	Stainless Steel	3	$29
SW-10Q5-3Adjustment Screw Pack, 1/4-100 Thread, 40.1 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	1/4-100	40.1 mm	Stainless Steel	3	$34
SW-10Q6-3Adjustment Screw Pack, 1/4-100 Thread, 53.3 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	1/4-100	53.3 mm	Stainless Steel	3	$38
SW-10Q7-3Adjustment Screw Pack, 1/4-100 Thread, 80.8 mm Length, Qty 3	UNIVERSAL	Fine Thread Screw	1/4-100	80.8 mm	Stainless Steel	3	$49
JN-1E-3Brass Lock Nut, 8-100 Thread, SW-10E Screws, 3-Pack	UNIVERSAL	Lock Nut	8-100		Brass	3	$36
JN-1EH-3Brass Lock Nut, 8-100, 3/16 in. Hex Broach SW-10E Screws, 3-Pack	UNIVERSAL	Lock Nut	8-100		Brass	3	$44
JN-1Q-3Brass Lock Nut, 1/4-100 Thread, SW-10Q Screws, 3-Pack	UNIVERSAL	Lock Nut	1/4-100		Brass	3	$34
ST-CHUCKTap Guide, For Use with ST-Q100 or ST-E100 Taps	UNIVERSAL	Tap Guide			Steel	1	$84

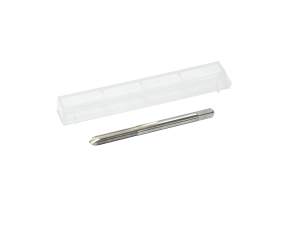

ST-Q100Specialty Tap, 1/4-100 Thread	UNIVERSAL	Tap	1/4-100		Tool Steel	1	$49
ST-E100Specialty Tap, 8-100 Thread	UNIVERSAL	Tap	8-100		Tool Steel	1	$57

Show Less

Features

Screw Components for OEM Applications

These 100-TPI screws, knobs, locks and tool are ideal for integration into optical systems or wherever precision adjustment is needed.

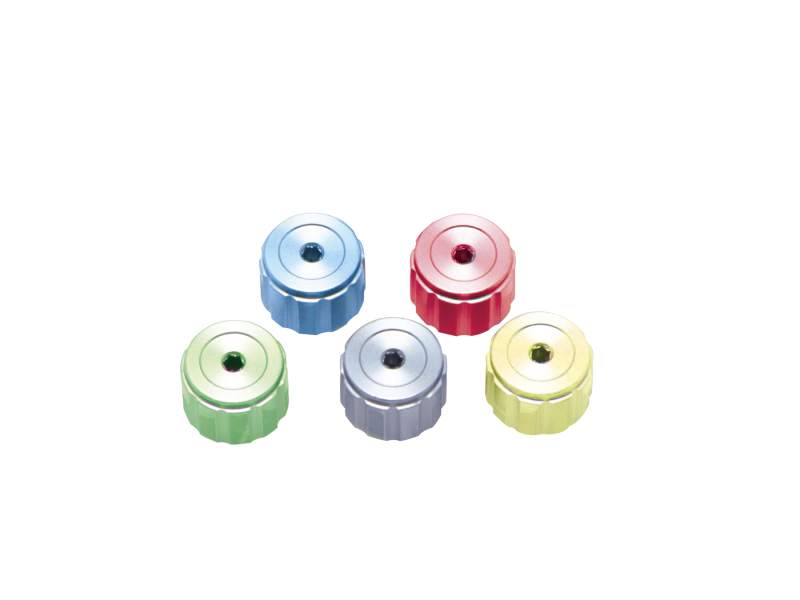

Colored Knobs are Easy to Identify

The knobs are available in five different colors to make their function easy to identify in a system. For example you can use red knobs for power adjustment and blue knobs for alignment.

Easy To Assemble

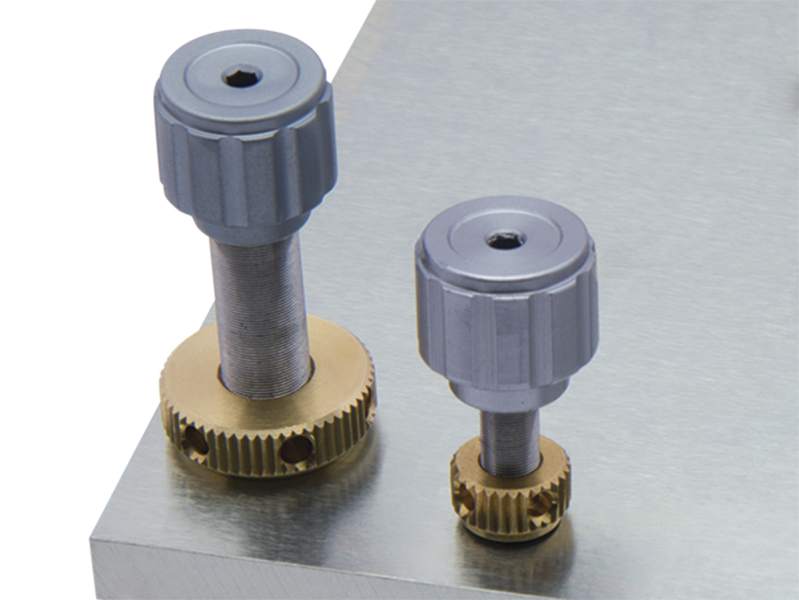

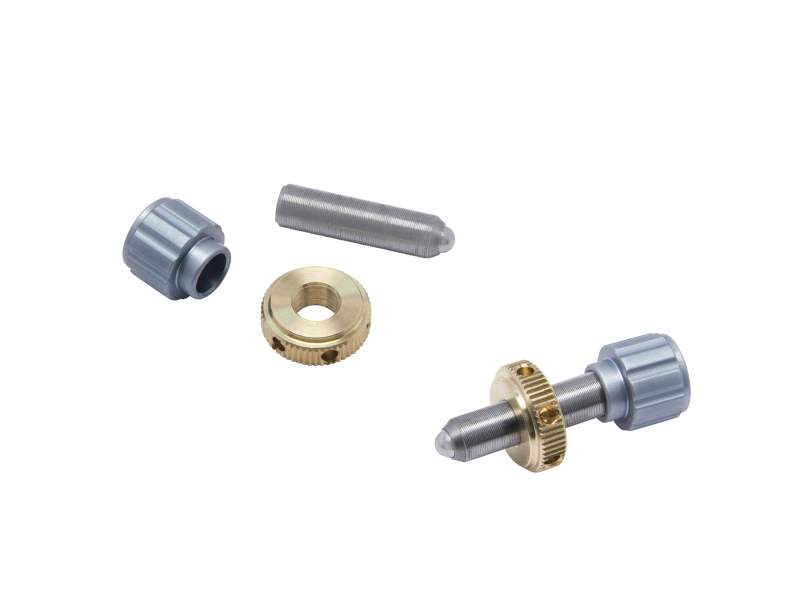

Fine-thread screw components are made to work together. The ST-Q100 tap threads 1/4-100 holes for the SW-10Q series screws. The JN-1Q-3 lock nuts threads on to the screw as do any of the KN-10Q series knobs. This is true for the smaller #8-100 series of fine-thread screw components.

Many Lengths From Which to Choose

The SW-10 series of screws are available in several lengths to meet your travel requirement. 1/4-100 screws are available in seven different lengths ranging from 0.7 to 3.2 in. (18 to 81 mm). #8-100 screws are available in six different lengths ranging from 0.6 to 2.5 in. (15 to 64 mm).

Accessories

Hex Key Knobs

Description	Compatibility	Price
KD.75Large Adjustment Knob, 2.0 mm Hex Key, Silver	UNIVERSAL	$10.70
KD.37Small Adjustment Knob, 2.0 mm Hex Key, Silver	UNIVERSAL	$9.30
HX.078-2M-PKHex Adjustment Knob, 5/64" (2.0 mm), 4 Pack	UNIVERSAL	$29
