Lab Jack, Fast Travel, 70 mm Travel, 60 x 60 mm, 20 N Load, M3

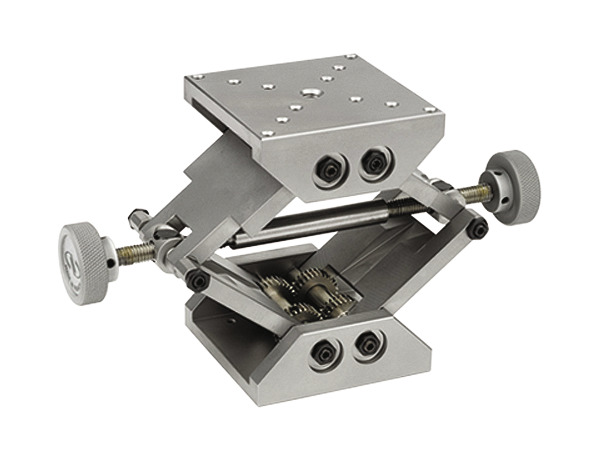

The M-EN60 Fast travel Lab Jack is a light-duty positioner with a 20 N load capacity. This lab jack is useful for 70 mm range positioning with high stability. For it's size, this lab jack has a significant amount of travel. Labjacks combine precision height adjustment in a stable design. When choosing a labjack, be sure to consider the vertical travel requirements, the load to be positioned, and the size of the lab jack. The upper and lower mounting plates have hole patterns that are compatible with many metric Newport products.

Vertical Adjustment From Either Side of Jack

The EN series lab jacks have adjustment knobs on both sides for better accessibility no matter what orientation it is mounted.

Specifications

Technical Specs

Travel Range
70 mm
Load Capacity
20 N
Thread Type
M3
Minimum Height
45 mm
Maximum Height
115 mm
Drive Screw Pitch
1.0 mm
Sensitivity
2.8 µm

Material
Alloy Steel
Bearings
Bushing
Axes of Travel
Z
Drive Location
Center drive
Deflection Under Load
0.005 mm/N
Parallelism
5 mrad over travel range
Weight
0.9 kg

Travel Range
70 mm
Load Capacity
20 N
Thread Type
M3
Minimum Height
45 mm
Maximum Height
115 mm
Drive Screw Pitch
1.0 mm
Sensitivity
2.8 µm

Material
Alloy Steel
Bearings
Bushing
Axes of Travel
Z
Drive Location
Center drive
Deflection Under Load
0.005 mm/N
Parallelism
5 mrad over travel range
Weight
0.9 kg

Resources & Downloads

3D Product Models

2D Product Drawings

M-EN-S(92.5 kB, PDF)

Other

M-EL M-EN RoHS Certificate.pdf(116.9 kB, PDF)
