Modular Riser Plates, 76.2 mm x 76.2 mm x 25.4 mm, M6 Thread, Metric
Modular Riser Plates, 76.2 mm x 76.2 mm x 25.4 mm, M6 Thread, Metric

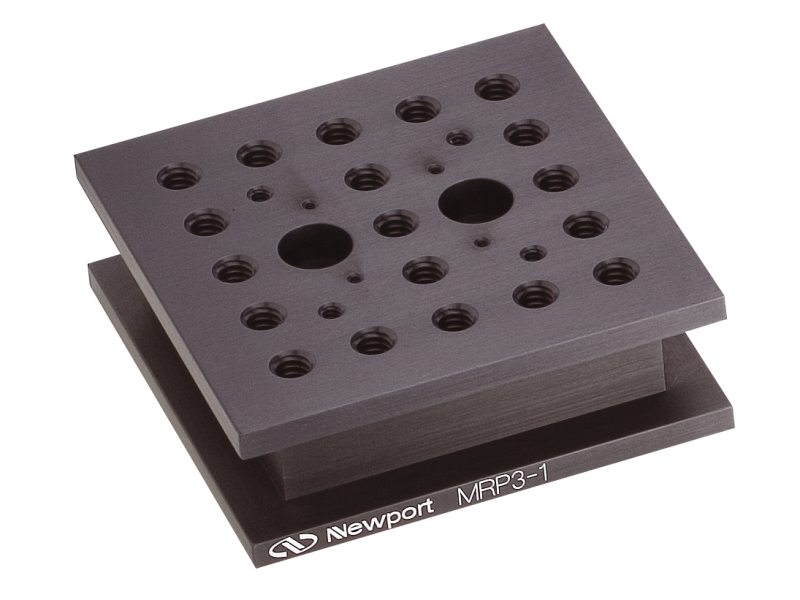

Model: M-MRP3-1
Product Series Overview
Modular Riser PlatesThe M-MRP3-1 Modular Metric Riser Plate raises the surface of an optical table, allowing components to be securely mounted at a fixed 25.4 mm height. 76.2 x 76.2 mm Modular Riser Plates can be stacked to achieve any height in 3.175 mm increments. Ample M6 threaded holes on the top surface are available to mount components to riser plates. These riser plates can be directly bolted to a table surface or mounted off the hole pattern using base clamps. 0.5 and 1.0 inch (12.7 and 25.4 mm) high versions have a groove around the base for the base clamps.
Resources & Downloads
Drawings And Cad
MRP3-25-1-S(129 kB, PDF)
Other
M-MRP3-1 RoHS Certificate(278.4 kB, PDF) M-MRP3-1_RoHS2021.pdf(682.5 kB, PDF)
