Modular Riser Plates mount to optical tables and breadboards to incrementally raise the mounting surface for components to a new, fixed height. Riser plates are stackable, available in four heights, and each of the two surface areas offered feature a full array of either 1/4-20 or M6 mounting or through holes.
- Raise and securely mount components at a fixed height
- Stack to achieve any height in 0.125 in. increments
- Aids in establishing a common optical axis height
- Aluminum with a black anodized surface finish construction See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-MRP3-0.125 Modular Riser PlatesModular Riser Plates, 76.2 mm x 76.2 mm x 3.175 mm, M6 Thread, Metric | |||||
 | M-MRP3-0.25 Modular Riser PlatesModular Riser Plates, 76.2 mm x 76.2 mm x 6.35 mm, M6 Thread, Metric | |||||
 | MRP3-0.125 Modular Riser PlatesModular Riser Plates, 3 in. x 3 in. x 0.125 in., 1/4-20 Thread | |||||
 | MRP3-0.25 Modular Riser PlatesModular Riser Plates, 3 in. x 3 in. x 0.25 in., 1/4-20 Thread | |||||
 | MRP3-0.5 Modular Riser PlatesModular Riser Plates, 3 in. x 3 in. x 0.5 in., 1/4-20 Thread | |||||
 | MRP3-1 Modular Riser PlatesModular Riser Plates, 3 in. x 3 in. x 1 in., 1/4-20 Thread | |||||
 | MRP4-0.125 Modular Riser PlatesModular Riser Plates, 4 in. x 4 in. x 0.125 in., 1/4-20 Thread | |||||
 | MRP4-0.25 Modular Riser PlatesModular Riser Plates, 4 in. x 4 in. x 0.25 in., 1/4-20 Thread | |||||
 | MRP4-0.5 Modular Riser PlatesModular Riser Plates, 4 in. x 4 in. x 0.5 in., 1/4-20 Thread | |||||
 | MRP4-1 Modular Riser PlatesModular Riser Plates, 4 in. x 4 in. x 1 in., 1/4-20 Thread |
Features
Available in a Variety of Stackable Sizes

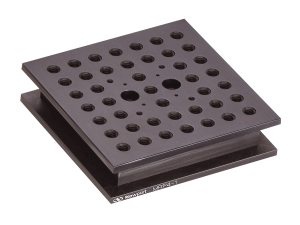

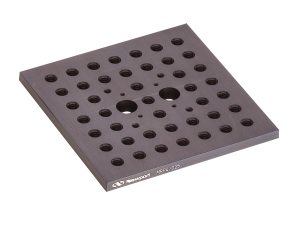

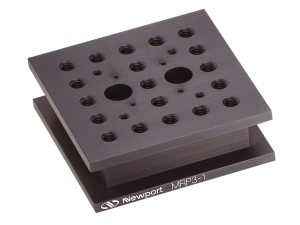

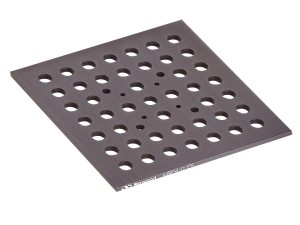

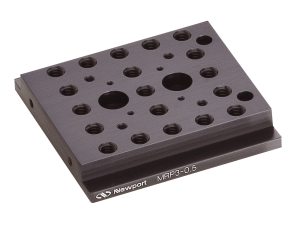

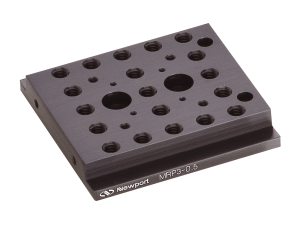

Modular Riser Plates are available in four heights and can be stacked to achieve any height in 0.125 in. (3.175 mm) increments. For each height, risers are offered with a mounting area of either 3.0 in x 3.0 in (76.2 mm x 76.2 mm) or 4.0 in. x 4.0 in. (101.6 mm x 101.6 mm) and feature a full array of 1/4-20 (M6) threaded and through holes for mounting.
Multiple Surface Mount Options
Through holes on these riser plates can be used to mount plates directly to surfaces, or alternatively can be secured using additional base clamps. The 0.5 in. and 1.0 in. (12.7 mm and 25.4 mm) tall risers include specialized grooves around the base mounting with clamps while maintaining a minimal footprint.
Create Vertical Mounting Surfaces
0.5 in. (12.7 mm) thick plates can be bolted together to create an angle bracket for a vertical mounting surface.
