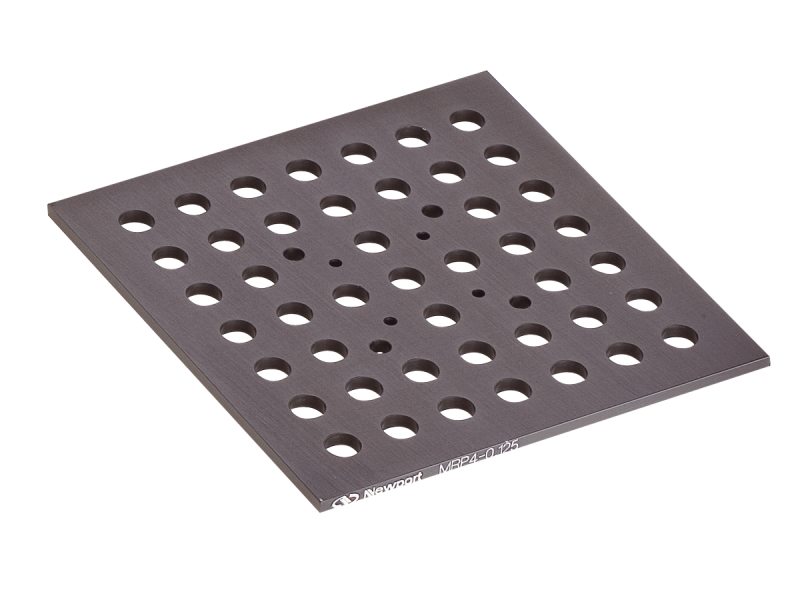

Modular Riser Plates, 4 in. x 4 in. x 0.125 in., 1/4-20 Thread

The MRP4-0.125 Modular Riser Plate raises the surface of an optical table, allowing components to be securely mounted at a fixed 0.125 inch height. 4 x 4 inch Modular Riser Plates can be stacked to achieve any height in 0.125 inch (3.175 mm) increments. Ample 1/4-20 threaded holes on the top surface are available to mount components to riser plates. These riser plates can be directly bolted to a table surface or mounted off the hole pattern using base clamps. 0.5 and 1.0 inch (12.7 and 25.4 mm) high versions have a groove around the base for the base clamps.

Specifications

Technical Specs

Type
Riser Plate
Height
3.175 mm

Width
101.6 mm
Material
Aluminum

Type
Riser Plate
Height
3.175 mm

Width
101.6 mm
Material
Aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

MRP4-125-S(137.8 kB, PDF)

Other

MRP4-0.125 RoHS Certificate(279.2 kB, PDF)
MRP4-0-125_RoHS2021.pdf(686.4 kB, PDF)
