Pedestal Adaptor, 45 Degree, Threaded, ULTIMA® Mounts, 8-32
Pedestal Adaptor, 45 Degree, Threaded, ULTIMA® Mounts, 8-32
Model: M-PS-45-ULT
Product Series Overview

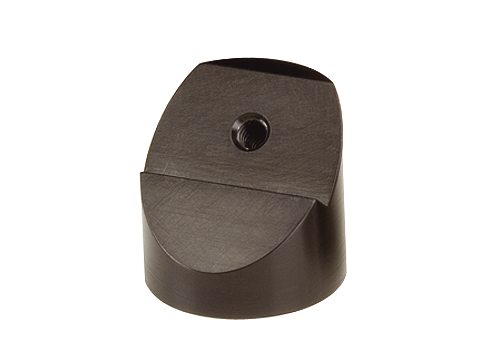

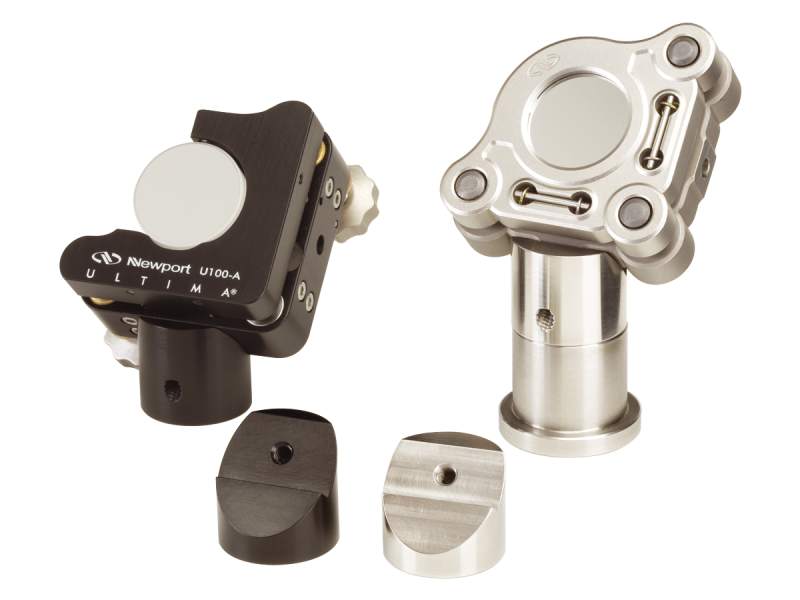

45-Degree Mirror Mount AdaptersThe M-PS-45-ULT Pedestal Adaptor allows ULTIMA® Series mirror mounts to be pedestal-mounted at a fixed +45 degree pitch angle. This adaptor has a 45-degree mounting hole which has been threaded for M4 cap-head screws. When used with a U100 mount, the center of the mirror will be aligned with the post center line and 50.8 mm above the base. The base of the adaptor has an M4 thread for mounting to Metric PS-series posts.
Resources & Downloads
Drawings And Cad
ASSY 45 DEG ULTIMA CATALOGUE(206.5 kB, PDF)
Other
M-PS-45-ULT RoHS Certificate(279 kB, PDF) M-PS-45-ULT_RoHS2021.pdf(682.1 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | BB-MOptical Beam Block, Tool Holder, Magnetic-Base, Medium | |||||
 | TA-M6Q20-10Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10 | |||||
 | M-BDK-1Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches | |||||
 | M-SK-M6ABlack Oxide Screw Kit, M6, Assortment, Qty 261 | |||||
 | AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10 |
