Pedestal Clip Set, Two Clips, Two M6 Screws
Pedestal Clip Set, Two Clips, Two M6 Screws
Model: M-PS-C-SET
Product Series Overview

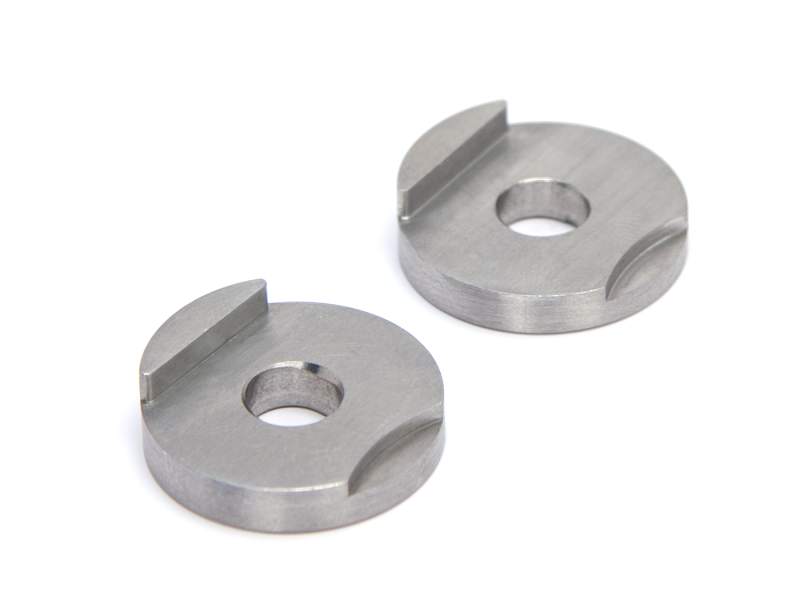

Pedestal Base Clamping ForksThe stainless steel M-PS-C-SET Pedestal Base Clipping bridles secure a 25.4 mm diameter optical pedestal or pedestal base optical post holder on an optical table. These pedestal clips decrease the amount of table real estate compared to a standard clamping fork. In addition, these clips create a symmetrical clamping force around the center of the post. This even force prevents one-sided post deflections when tightening a post fork.
Included in this set are two pedestal clips, two M6 screws, and two washers.
Included in this set are two pedestal clips, two M6 screws, and two washers.
