Mounting Plate, 101.6 X 152.4 mm, Double Density M4 & M6 Hole Pattern

Miniature Quadruple Density Double-Threaded Plates

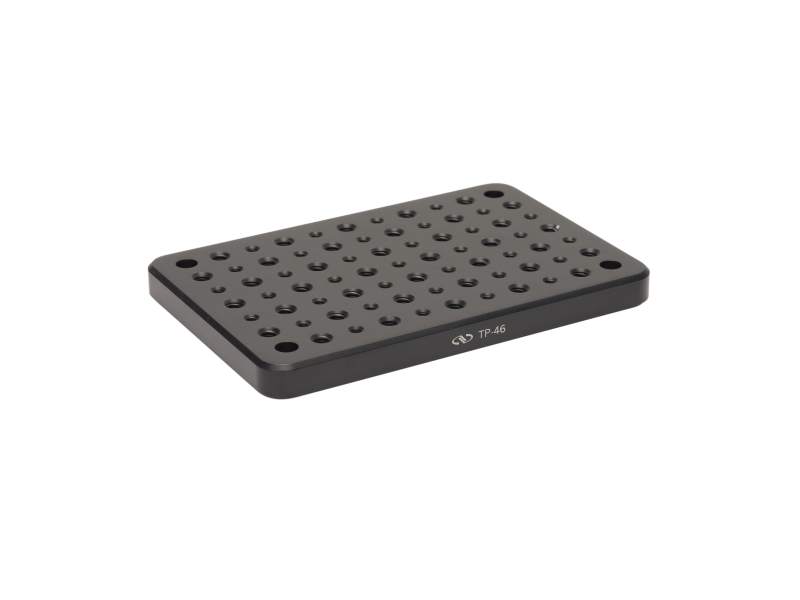

The M-TP-46 is a 101.6 X 152.4 mm threaded plate featuring a double-density pattern of M4 and M6 threaded mounting holes. Use these plates to combine several optical mounts together on to a single stable platform. Each of these plates also have counterbored thru holes which can be used for stand-off posts and pedestals. These threaded plates are made from 1/2-in. (12.7-mm) thick aluminum alloy plate and finished with a durable type 2 black anodize.

Specifications

Technical Specs

Type
Double-Density Mounting Holes
Height
12.7 mm
Length
101.6 mm
Width
152.4 mm
Dimensions
101.6 x 152.4 x 12.7 mm

Thickness
12.7 mm
Material
Aluminum
Use
Mounting Plate
Surface Flatness
±0.5 mm
Mounting Holes
M4 and M6

Type
Double-Density Mounting Holes
Height
12.7 mm
Length
101.6 mm
Width
152.4 mm
Dimensions
101.6 x 152.4 x 12.7 mm

Thickness
12.7 mm
Material
Aluminum
Use
Mounting Plate
Surface Flatness
±0.5 mm
Mounting Holes
M4 and M6

Resources & Downloads

3D Product Models

2D Product Drawings

TP Series Bases Drawing(74.2 kB, PDF)

Other

M-TP-46_RoHS2021.pdf(691.3 kB, PDF)
