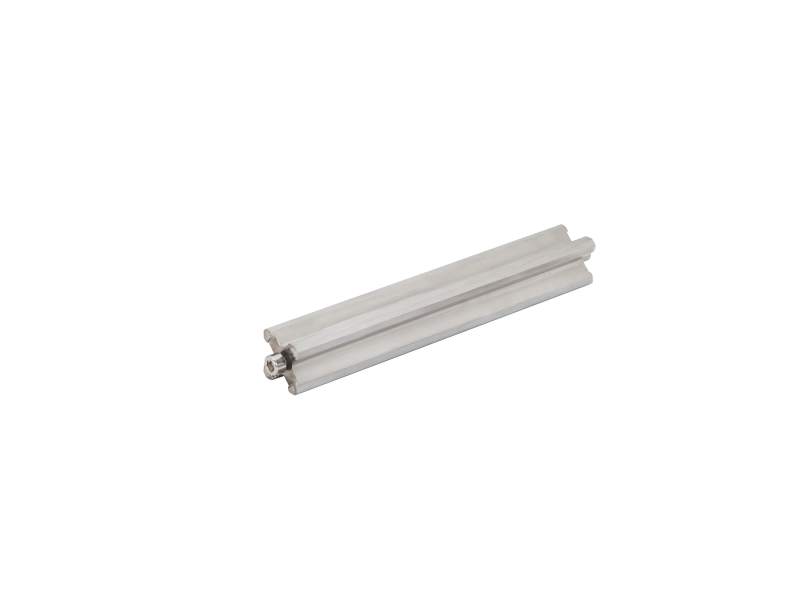

Optical Rail, Stainless Steel, 192 mm Length, 26 mm Width, M6
Optical Rail, Stainless Steel, 192 mm Length, 26 mm Width, M6
Model: X26-192
Product Series Overview

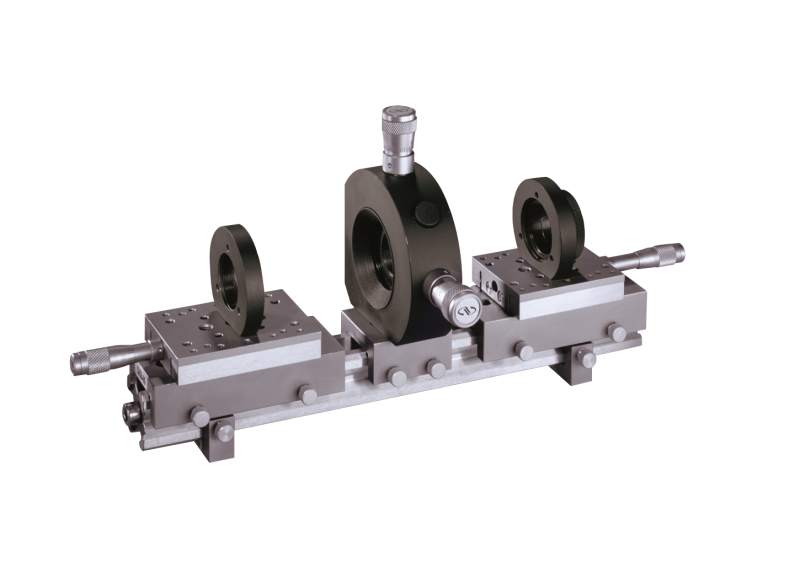

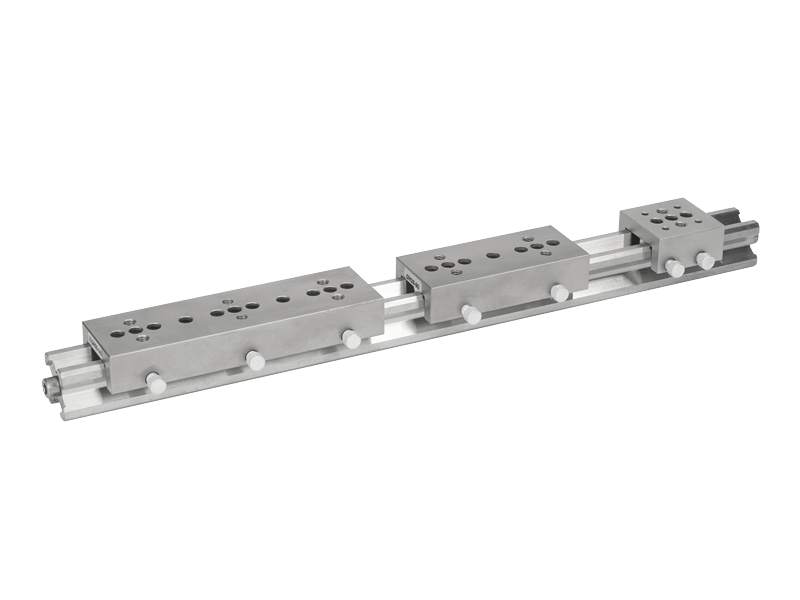

26 mm Steel Four-Sided Optical RailsThe X26-192 Stainless Steel Optical Rail is an excellent choice for construction of precision optical systems such as spatial filters, interferometers, collimators, and microscopes. This 192 mm length rail with an M6 hole on each end can be fixed to optical tables by using CN26-12 Carriers upside down as rail feet. Carriers can easily be fixed to any of the four sides of the symmetrical cross-shaped rail providing four parallel work surfaces. Dovetail construction enables fast, easy mounting and secure clamping of carriers at any point along the rail without removing other components. Compatible optical mounts, which include SL Series Gimbal Optical Mounts, SB Series Optic and Lens Barrel Mounts, and SB18YZ Series Lens Positioners, are provided a common optical axis height of 40 mm above the rail surface.
Resources & Downloads
Drawings And Cad
X26 DWG-S(77.9 kB, PDF)
Other
X26-192 RoHS Certificate(279.7 kB, PDF) X26-192_RoHS2021.pdf(682.3 kB, PDF)
