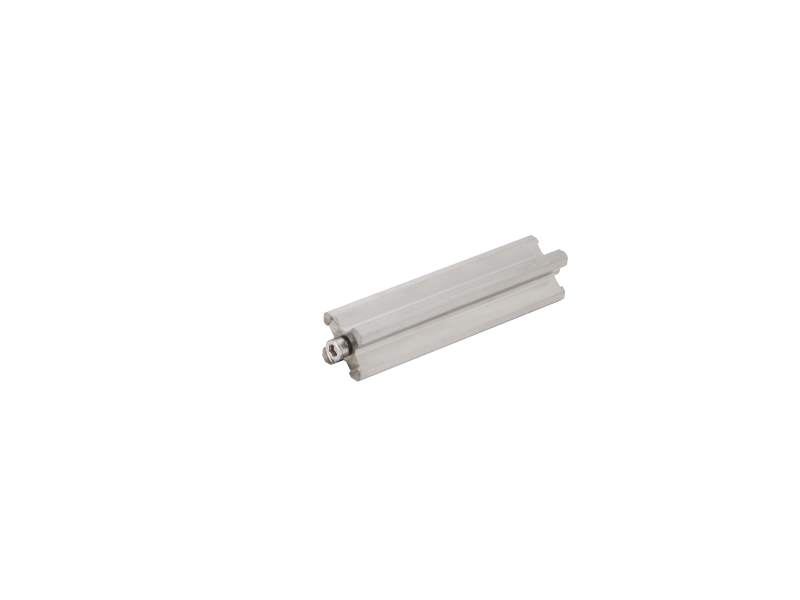

Optical Rail, Stainless Steel, 128 mm Length, 26 mm Width, M6

The X26-128 Stainless Steel Optical Rail is an excellent choice for construction of precision optical systems such as spatial filters, interferometers, collimators, and microscopes. This 128 mm length rail with an M6 hole on each end can be fixed to optical tables by using CN26-12 Carriers upside down as rail feet. Carriers can easily be fixed to any of the four sides of the symmetrical cross-shaped rail providing four parallel work surfaces. Dovetail construction enables fast, easy mounting and secure clamping of carriers at any point along the rail without removing other components. Compatible optical mounts, which include SL Series Gimbal Optical Mounts, SB Series Optic and Lens Barrel Mounts, and SB18YZ Series Lens Positioners, are provided a common optical axis height of 40 mm above the rail surface.

Specifications

Technical Specs

Type
Four Sided Optical Rail
Rail Length
128 mm
Material
Stainless Steel

Length
128 mm
Width
26 mm

Type
Four Sided Optical Rail
Rail Length
128 mm
Material
Stainless Steel

Length
128 mm
Width
26 mm

Resources & Downloads

3D Product Models

2D Product Drawings

X26 DWG-S(77.9 kB, PDF)

Other

X26-128 RoHS Certificate(277.4 kB, PDF)
X26-128_RoHS2021.pdf(0, PDF)
