Ergonomic Vision Isostation, 900 x 1200 x 59 mm SG Breadboard, I-325

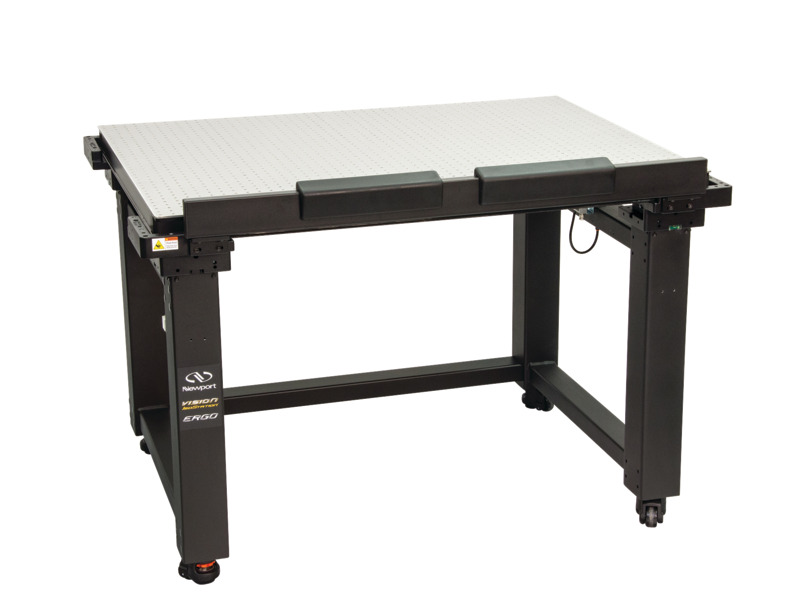

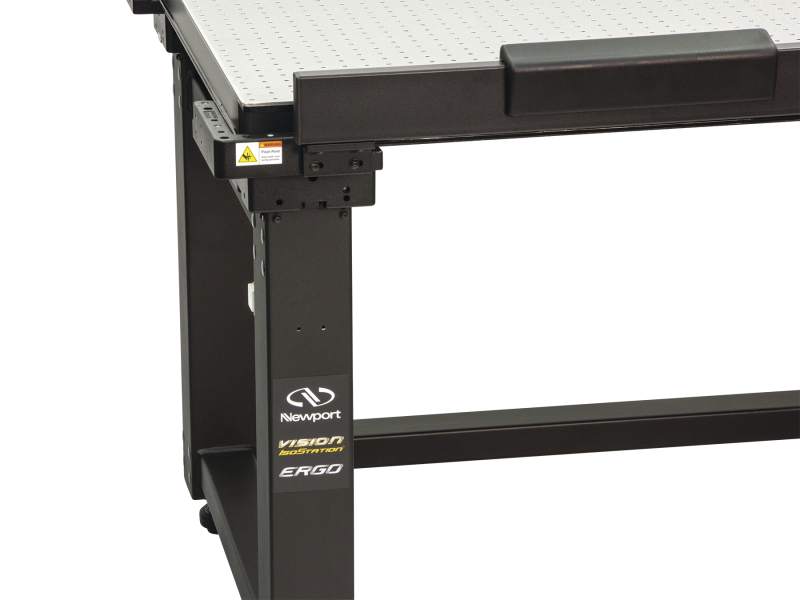

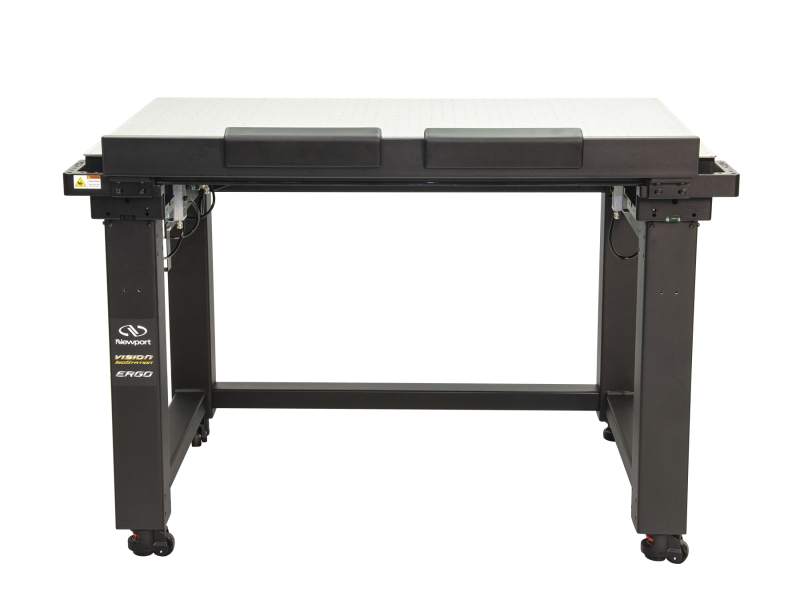

The M-VIS3648-SG2-ERGA is a metric 900 mm x 1200 mm x 858 mm working height Vision IsoStation Ergo workstation with a 59 mm thick SG Series breadboard and I-325 Series pneumatic isolators that provide a 590 kg gross load capacity. The Ergo Version of the workstation features more leg room for seated users and include the front hip guard with two arm rests. It provides effective vibration isolation for optical microscopes, optical experiments and sensitive instrumentation. The Vision IsoStation features a unique platform interface that acts as a docking surface, an accessory mount and a restraint to keep the breadboard atop the frame. The interface also features integrated float height indicators and frame bubble levels to make set-up and installation easier than ever. Integrated leveling feet and casters are included with the base model and a new roll-off crate make the Vision IsoStation easy to unpack, install and move, even for one person. Specifications
Type
Isolated Workstation
Platform
SG Series Breadboard
Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Width
900 mm
Length
1200 mm
Thickness
59 mm
Working Surface
4.8 mm thick 400 series ferromagnetic stainless steel
Surface Flatness
±0.1 mm over 600 mm square
Core Design
Trussed honeycomb, vertically bonded closed cell construction, 0.25 mm steel sheet materials, 0.76 mm triple core interface
Bottom Skin Material
3.4 mm thick carbon steel
Mounting Holes
M6
Mounting Hole Pattern
25 mm grid
Mounting Hole Borders
12.5 mm
Hole Sealing Type
Easy clean conical cup 19 mm deep, non-corrosive high impact polymer material
Load Capacity
590 kg
Load Capacity per Isolator
148 kg
Height Adjustment
6.4 mm
Horizontal Isolation, Res. 1.2 Hz
Horizontal Isolation, 5 Hz 90%
Horizontal Isolation, 10 Hz 98%
1.5 Hz
90%
Vertical Isolation, 10 Hz 98%
Maximum Air Pressure
85 psi
Releveling Accuracy
±0.250 mm
212 kg
Type
Isolated Workstation
Platform
SG Series Breadboard
Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Width
900 mm
Length
1200 mm
Thickness
59 mm
Working Surface
4.8 mm thick 400 series ferromagnetic stainless steel
Surface Flatness
±0.1 mm over 600 mm square
Core Design
Trussed honeycomb, vertically bonded closed cell construction, 0.25 mm steel sheet materials, 0.76 mm triple core interface
Bottom Skin Material
3.4 mm thick carbon steel
Mounting Holes
M6
Mounting Hole Pattern
25 mm grid
Mounting Hole Borders
12.5 mm
Hole Sealing Type
Easy clean conical cup 19 mm deep, non-corrosive high impact polymer material
Load Capacity
590 kg
Load Capacity per Isolator
148 kg
Height Adjustment
6.4 mm
Horizontal Isolation, Res. 1.2 Hz
Horizontal Isolation, 5 Hz 90%
Horizontal Isolation, 10 Hz 98%
1.5 Hz
90%
Vertical Isolation, 10 Hz 98%
Maximum Air Pressure
85 psi
Releveling Accuracy
±0.250 mm
212 kg
