4.8 mm Skin Ergonomic Vision IsoStation™ with Pneumatic Isolation
4.8 mm Skin Ergonomic Vision IsoStation™ with Pneumatic Isolation
The new Vision IsoStation™ seated optical workstations feature SG Series 4.8 mm skin optical breadboards and I-325 pneumatic isolators. They are designed with the seated user in mind and inherit many unique and innovative features from the original Vision IsoStation.
- Scientific grade 4.8 mm skin honeycomb core optical breadboard top
- I-325 pneumatic isolators with 1300 lbs. gross load capacity
- More legroom and included hip guard and arm rests for seated users
- Shipped fully assembled with a roll-off crate for fast & easy installation
- Integrated bubble levels, seismic restraints & float height indication
- Wide variety of accessories to customize your workstation See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-VIS3636-SG2-ERGA 4.8 mm Skin Ergonomic Vision IsoStation™ with Pneumatic IsolationOptical Workstation, Ergonomic, 900 x 900 x 59 mm SG Breadboard, I-325 | |||||
| M-VIS3648-SG2-ERGA 4.8 mm Skin Ergonomic Vision IsoStation™ with Pneumatic IsolationErgonomic Vision Isostation, 900 x 1200 x 59 mm SG Breadboard, I-325 | |||||
| M-VIS3660-SG2-ERGA 4.8 mm Skin Ergonomic Vision IsoStation™ with Pneumatic IsolationErgonomic Vision Isostation, 900 x 1500 x 59 mm SG Breadboard, I-325 | |||||
| VIS3636-SG2-ERGA 4.8 mm Skin Ergonomic Vision IsoStation™ with Pneumatic IsolationErgonomic Vision Isostation, 36 x 36 x 2.3 in. SG Breadboard, I-325 | |||||
| VIS3648-SG2-ERGA 4.8 mm Skin Ergonomic Vision IsoStation™ with Pneumatic IsolationErgonomic Vision Isostation, 36 x 48 x 2.3 in. SG Breadboard, I-325 | |||||
| VIS3660-SG2-ERGA 4.8 mm Skin Ergonomic Vision IsoStation™ with Pneumatic IsolationErgonomic Vision Isostation, 36 x 60 x 2.3 in. SG Breadboard, I-325 |
Features
Vision IsoStation™ Optical Workstation Overview
Vision IsoStation™ Optical Workstations provide industry leading performance and more user friendly features and accessories than any other vibration isolation workstation. All of the features and accessories have been designed specifically to improve ease of installation, set-up and lab space utilization.
SG Optical Breadboard Broadband Damping Performance

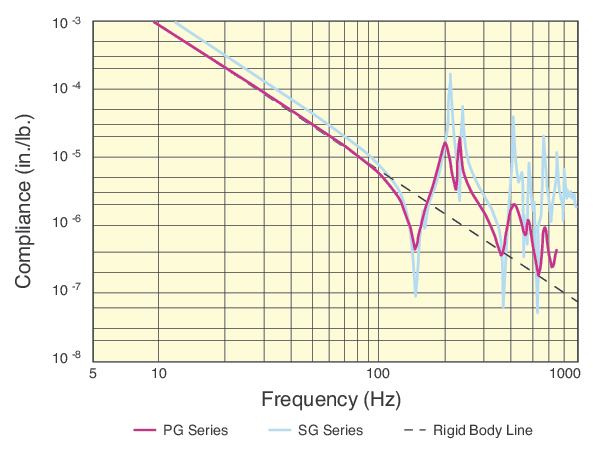

The 4.8 mm thick working surface on SG optical breadboards is bonded to a polymeric material that serves to seal the honeycomb core and damp the working surface. The trussed honeycomb is vertically bonded enabling a rigid triple core interface. Although the adhesive is rigid, its broadband damping factor is much higher than that of steel and introduces substantial damping into the core. The side panels are made of a highly damped, epoxy sealed wood composite. Compared to the metal sides used by other breadboard manufacturers, the composite wood sides offer significant damping to the structure and eliminate another source of resonance. The damping performance is evaluated and represented by a compliance curve. For better damping performance, check out our precision grade optical breadboards with patented modal damping.
Designed Workstations for Seated Users with Innovate Platform Interface

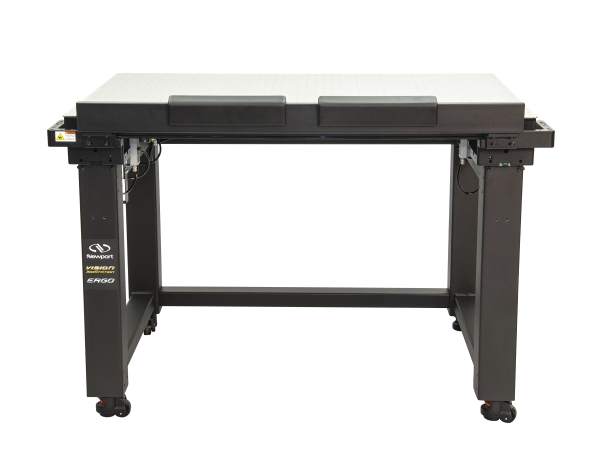

With an open-front design and included hip guard and arm rests, the Vision IsoStation Ergo has been designed for seated users. The Ergo provides extra legroom for seated people while maintaining sturdy support allowing more comfortable examinations, operations, and experiments. They feature a unique platform interface consisting of 4 corner constraints that act as a docking surface, an accessory mount and a restraint to keep the breadboard atop the frame. The interface also features float height indicators and frame bubble levels to make set-up and installation easier than ever.
Shipped Fully Assembled for Easy Installation
Vision IsoStation Optical Workstation Available Accessories
Vision IsoStation accessories are designed specifically for modern scientific and biological investigations. Visit Vision IsoStation Accessories to learn more about the ergonomic accessories offered to complete your system.
Resources
Manuals
Optical Table Pre-installation Checklist(3.7 MB, PDF)
Literature
Vision IsoStation Brochure(1.8 MB, PDF)
