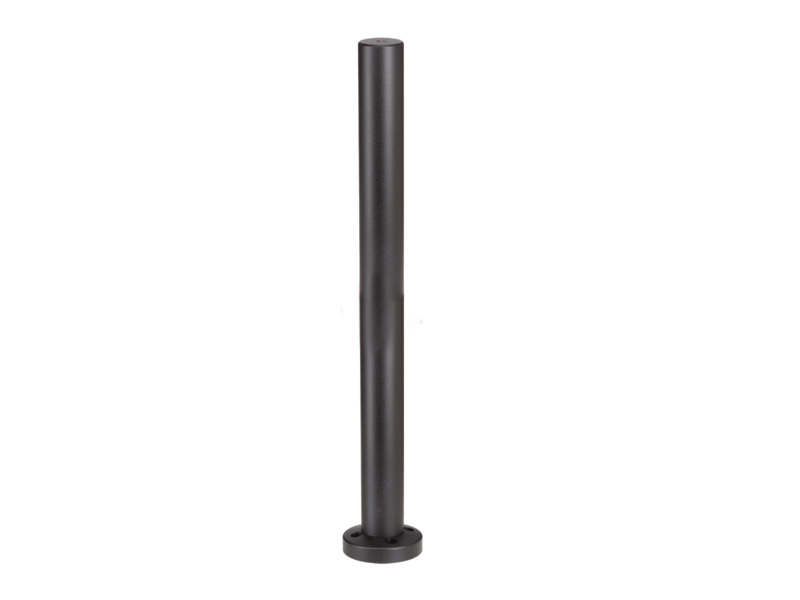

Support Rod, Microlock Breadboard, 508 mm Height, 39.7 mm Diameter, M6

1.5 in. Optical Breadboard Support Posts

The M-XP-20 Post attaches directly to Microlock™ Tiedowns in a breadboard providing a stable way to offset a breadboard from its primary support. The post has a 508.0 mm height and M6 thread. Intermediate heights can be achieved by using the SR-series spacers and extensions or Model P-3, P-5, or P-7 platform posts between the breadboard and the support post.

Specifications

Technical Specs

Type
Optical Support Post
Mounting Holes
M6
Height
508 mm

Diameter
39.7 mm

Type
Optical Support Post
Mounting Holes
M6
Height
508 mm

Diameter
39.7 mm

Resources & Downloads

Other

M-XP-20 RoHS Certificate(282.5 kB, PDF)

Drawings And Cad

XP-SERIES Drawing(76.2 kB, PDF)
