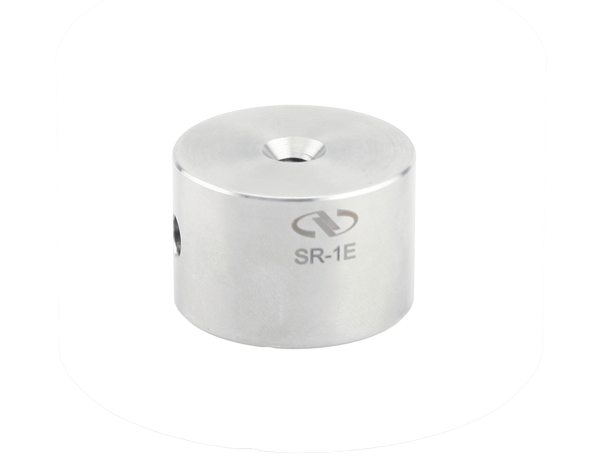

Optical Post, 25.4 mm Height, 38.1 mm Diameter, M6 Thread

The M-SR-1E Optical Pedestal Pillar Extension is 38.1 mm diameter and is used to extend height of an SR-Z pedestal pillar by 25.4 mm. It has M6 threaded holes at each end and a cross-drilled hole to assist in tightening. It can be combined with a SR-B pedestal base for a non-magnetic pedestal base configuration.

Specifications

Technical Specs

Type
Extension Post
Height
25.4 mm

Material
Stainless Steel
Diameter
38.1 mm

Type
Extension Post
Height
25.4 mm

Material
Stainless Steel
Diameter
38.1 mm

Resources & Downloads

3D Product Models

2D Product Drawings

SR-E(94.9 kB, PDF)

Other

M-SR-1E RoHS Certificate(277.6 kB, PDF)
M-SR-1E_RoHS2021.pdf(680.2 kB, PDF)
