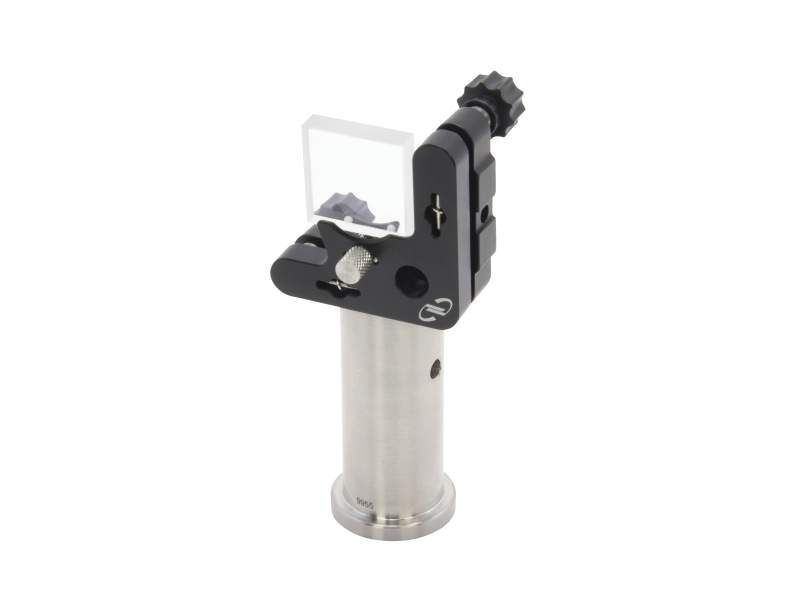

Mirror Mount, Lab Standard, EdgeGrip, 1.0 in., 2 Knob Actuators

The M1-1D Mirror Mount is designed to hold and position D-shaped mirrors. The EdgeGrip design allows it to hold standard 1 in. (25.4 mm) round mirrors as well as square mirrors up to 0.32 in. (8.1 mm) thick. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment up to ±4°.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Material
Coated Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
31.75 mm
Special Features
Edge Grip

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec
Angular Range
±4°

Material
Coated Aluminum
Drive Type
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
31.75 mm
Special Features
Edge Grip

Resources & Downloads

Drawings And Cad

M1-1D-351(277.3 kB, PDF)

Other

M1-1D RoHS Certificate(278.6 kB, PDF)
M1-1D_RoHS2021.pdf(681.9 kB, PDF)
