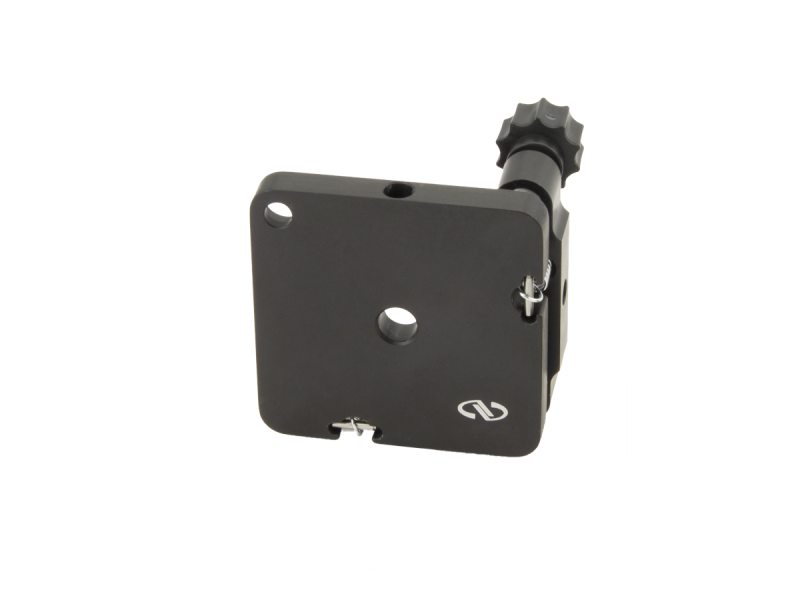

Platform Optical Mount, 2.0 x 2.0 in., 2 Knob Actuators

The M1-P2 Platform Optical Mount is ideal for general purpose applications requiring a compact, robust, kinematic design at an economical price. The M1-P2 is a 2.0 inch platform version for holding mounted mirrors, prisms, or cube beamsplitters. UPA-series adaptors allow other sized mirrors to be securely held and positioned. Two precision 100-TPI adjustment screws are standard providing exceptionally smooth, high-resolution adjustment.

Specifications

Technical Specs

Mechanism
Kinematic
Platform Size
50.8 x 50.8 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy

Angular Range
±4°
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Platform Thread
1/4-20 (M6) CLR
Mounting Holes
8-32 (M4) CLR

Mechanism
Kinematic
Platform Size
50.8 x 50.8 mm
Number of Actuators
2
Actuator Locks
No
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy

Angular Range
±4°
Material
Anodized Aluminum
Drive Type
Knob, non-locking
Platform Thread
1/4-20 (M6) CLR
Mounting Holes
8-32 (M4) CLR
