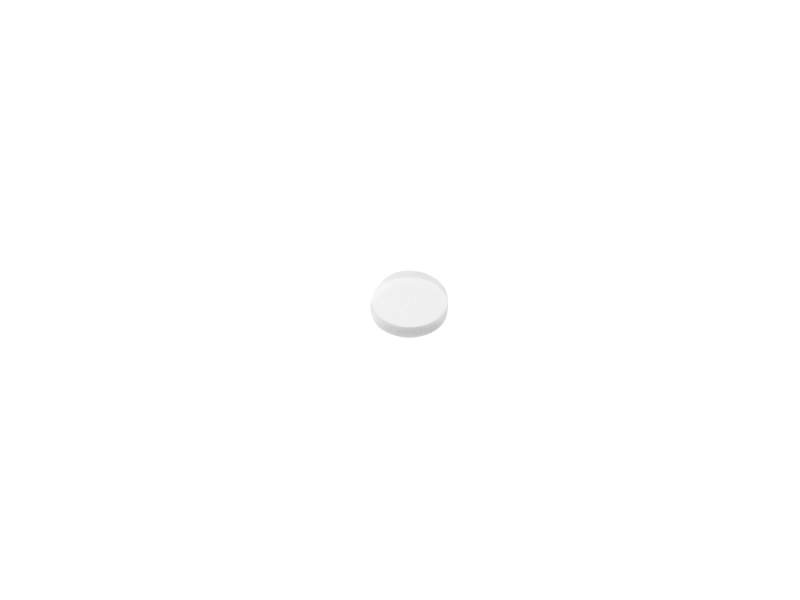

Optical Window, Magnesium Fluoride, 5.0 mm Diameter, 1.0 mm Thick

The MGW10 is a 5.0 mm in diameter and 1.0 mm thick Magnesium Fluoride window. Magnesium fluoride has a wide spectral range with high transmission between 0.15 μm and 6.5 μm, making it an excellent choice for deep UV to IR applications. MgF₂ has high resistance to thermal and mechanical shock, as well as laser damage. For selected applications MgF₂ can also be used without an anti-reflective coating as it has a low index of refraction leading to a low refracted light from the second surface.

Specifications

Technical Specs

Diameter
5.0 mm
Material
Magnesium Fluoride
Antireflection Coating
Uncoated
Surface Flatness
λ/2 @ 632.8 nm
Surface Quality
40-20 scratch-dig
Thickness
1.0 mm
Thickness Tolerance
± 0.1 mm

Parallelism
< 1 arc minute
Cleaning
See How to Clean Optics
Clear Aperture
Central 90% of diameter
Diameter Tolerance
+0.0/-0.1 mm
Wavelength Range
150-6500 nm

Diameter
5.0 mm
Material
Magnesium Fluoride
Antireflection Coating
Uncoated
Surface Flatness
λ/2 @ 632.8 nm
Surface Quality
40-20 scratch-dig
Thickness
1.0 mm
Thickness Tolerance
± 0.1 mm

Parallelism
< 1 arc minute
Cleaning
See How to Clean Optics
Clear Aperture
Central 90% of diameter
Diameter Tolerance
+0.0/-0.1 mm
Wavelength Range
150-6500 nm

Resources & Downloads

Other

MGW10 RoHS Certificate(701.7 kB, PDF)

Drawings And Cad

MGWxx Drawing.pdf(86.9 kB, PDF)
