Pockels Cell Positioner, 80 TPI Hex Head Screws
Pockels Cell Positioner, 80 TPI Hex Head Screws
Model: PCH-1
Product Series Overview

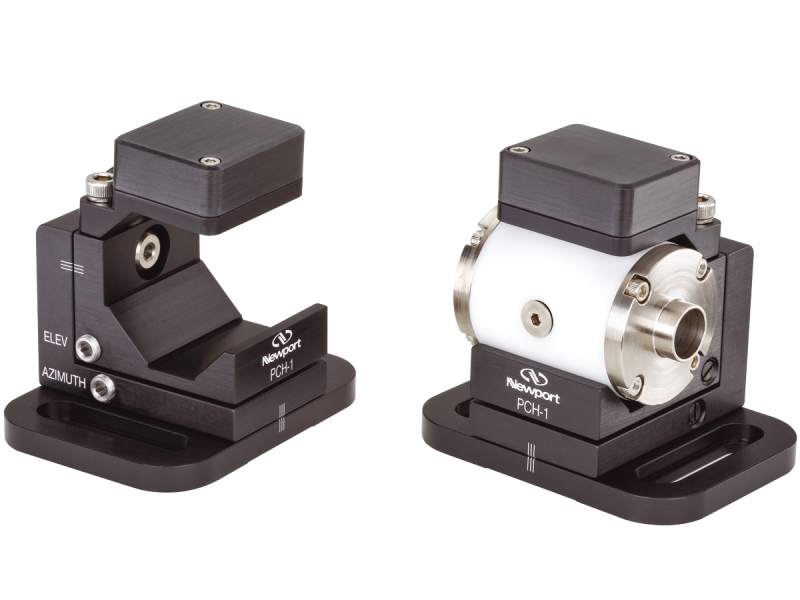

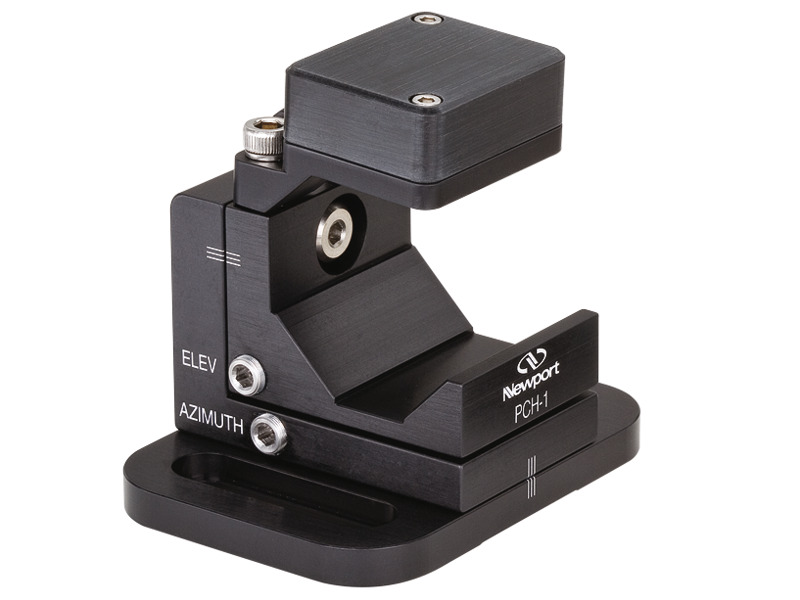

Pockels Cell PositionerNewport’s PCH-1 is the first commercially available device to accurately and repeatedly position various electro-optical devices, such as pockels cells. The compact size allows integration of the PCH-1 in optical systems where space is at a premium. Angular adjustments are accomplished using two high precision 80 TPI hex head screws. Special opposing screws are provided for locking the position. The addition of kinematic contact pads provide rock stable translation. Rotation is accomplished by rotating the device prior to securing the insulating Delrin retaining cap. Height adjustments can be made in increments of 0.125 in. by using spacers.
Resources & Downloads
3D Product Models
2D Product Drawings
PCH-1 DWG-S(93.4 kB, PDF)
