Optical Pedestal, Magnetic Base, 4.0 in. Height, 1 in. Diameter, 8-32

1.0 in. Optical Pedestals, Magnetic Base

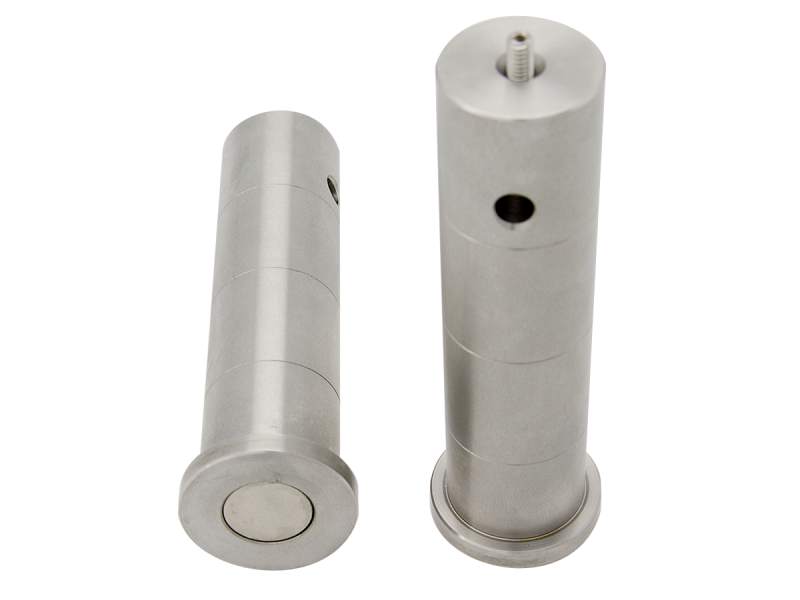

The PS-4Z Magnetic Pedestal provides a strong 5 lb. magnetic hold, allowing experimenters to securely position and align their optical mounts prior to clamping them down. Not only does this reduce the potential for damaging optical components, it also greatly increases the speed and efficiency with which an experiment can be set up. With the PS-Series Magnetic Pedestals, post-mounted optic holders can be quickly positioned to the approximate location on an optical table and securely aligned prior to clamping them down. This magnetic pedestal post is the dimensional equivalent to the standard PS pedestal post but does not have an 8-32 thread on the bottom.

Specifications

Technical Specs

Type
Magnetic Optical Pedestal
Height
101.6 mm
Thread Type
8-32
Material
Stainless Steel

Diameter
25.4 mm

Type
Magnetic Optical Pedestal
Height
101.6 mm
Thread Type
8-32
Material
Stainless Steel

Diameter
25.4 mm

Resources & Downloads

Other

PS-4Z RoHS Certificate(279.1 kB, PDF)
PS-4Z_RoHS2021.pdf(684 kB, PDF)

Drawings And Cad

PS-Z family.pdf(182.6 kB, PDF)
