Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 150 mm EFL, 650-1000nm
Bi-Convex Lens, Fused Silica, 25.4 mm Diameter, 150 mm EFL, 650-1000nm
Model: SBX031AR.16
Product Series Overview

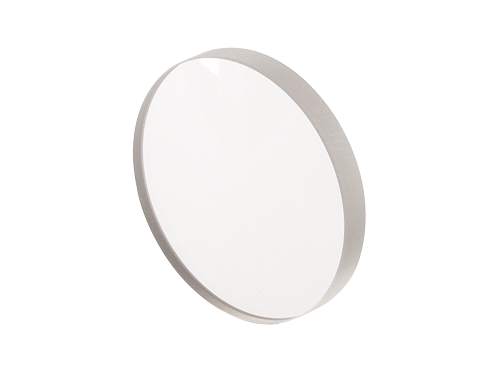

NIR UVFS Bi-Convex LensesThe SBX031AR.16 Fused Silica Bi-Convex Lens is a 25.4 mm diameter, 650 to 1000 nm anti-reflection coated, fused silica bi-convex lens with an effective focal length of 150 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's UV grade fused silica precision bi-convex lenses are polished to tight tolerances using master test plates to ensure minimum wavefront distortion. UV grade fused silica will not fluoresce under UV light and is resistant to radiation. And for high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.
Resources & Downloads
3D Product Models
2D Product Drawings
BI-CONVE-XLE-S(89.3 kB, PDF) SBX031AR.16 Zemax File(5.3 kB, ZMX)
Other
SBX031AR.16 RoHS Certificate(708.4 kB, PDF) AR.16 Raw Data.xlsx(100.4 kB, XLSX)
