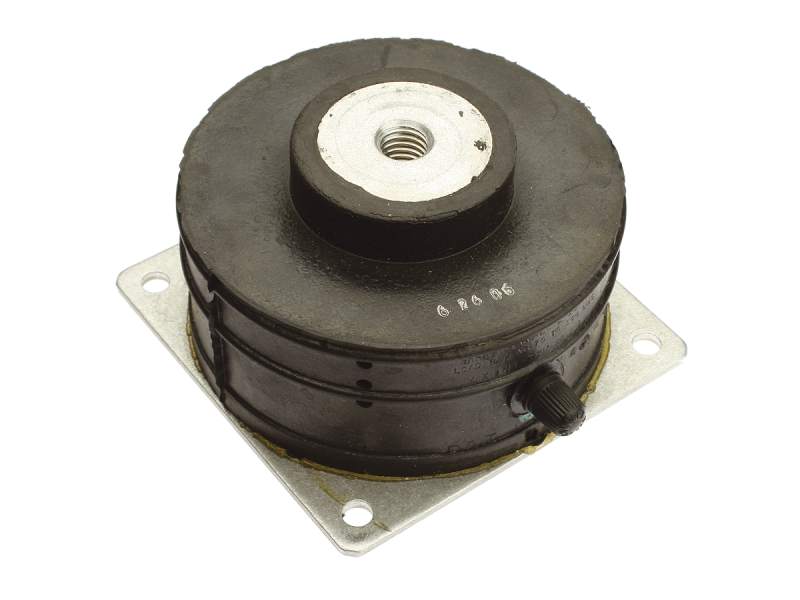

Compact Air Mount, 300 lb. Max. Load, 60 psi Max. Air Pressure

The SLM-3A Compact Air Mount without Self Leveling offers excellent support for high shock or applications requiring lower levels of vibration isolation. This mount supports 300 lb maximum loads and has an 60 psi air pressure maximum. It can be used to isolate machinery from floor vibrations or the floor from machinery vibrations. The rigid wall design is far superior to conventional air bladders. SLM mounts also offer excellent protection against high static deflection, drift and permanent set. Once filled with air they are virtually maintenance free.
Pneumatic Isolation Solution at an Affordable Price
These isolators use an air spring elastomeric isolator with integral heavy wall construction. The rigid wall design of the air mount provides better isolation than traditional air bladder design, delivering 96% vertical isolation and 98% horizontal isolation at 10 Hz. Once filled with air they are virtually maintenance free.
Air Spring and Elastomeric Neoprene Material Provides Superior Isolation
SLM mounts also offer excellent protection against high static deflection, drift and permanent set, thanks to the combination of resiliency of the material and air spring. Neoprene elastomer has an operating temperature range of -20°F to +180°F (-30 °C to +82 °C) and is resistant to oils, most solvents and ozone. The isolator itself will have natural frequency in 3-5 Hz when inflated, however, even if there is no air pressure the isolator still has natural frequency as low as 10 Hz. SLM isolator mount is your ideal solution for machinery and equipment isolation.
Resources & Downloads
3D Product Models
2D Product Drawings
SLM Installation Instructions (SLM-1A & SLM-3A)(98.1 kB, PDF) 06953 Dwg new-S(115.9 kB, PDF)
