Plano-Convex Lens, Fused Silica, 25.4 mm, 88.3 mm EFL, Uncoated

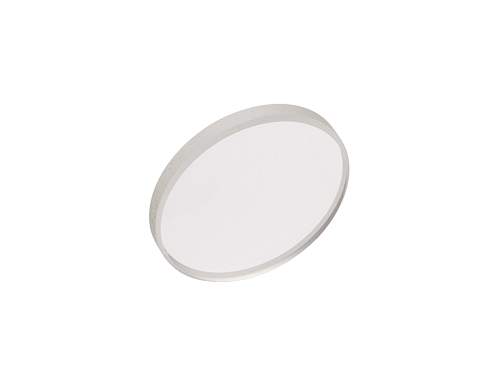

uv fused silica plano-convex lens 1.0 inch (25.4 mm) diameter

The SPX020 Fused Silica Plano-Convex Lens is an uncoated, 1 inch (25.4 mm) diameter, fused silica plano-convex lens with an effective focal length of 88.3 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's UV grade fused silica precision plano-convex lenses are polished to tight tolerances using master test plates to ensure minimum wavefront distortion. UV grade fused silica will not fluoresce under UV light and is resistant to radiation. And for high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.

Specifications

Technical Specs

Lens Shape
Plano-Convex
Diameter
25.4 mm
Lens Material
UV Fused Silica
Antireflection Coating
Uncoated
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/2
Surface Accuracy, Irregularity
λ/8
Surface Accuracy, Power
1.5 λ
F/#
3.5
Effective Focal Length (EFL)
88.3 mm
Back Focal Length (BFL)
84.85 mm
Radius of Curvature (R)
40.625 mm

Center Thickness (Tc)
5.040 mm
Principal Plane 2 (P2)
-3.45 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Lens Shape
Plano-Convex
Diameter
25.4 mm
Lens Material
UV Fused Silica
Antireflection Coating
Uncoated
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/2
Surface Accuracy, Irregularity
λ/8
Surface Accuracy, Power
1.5 λ
F/#
3.5
Effective Focal Length (EFL)
88.3 mm
Back Focal Length (BFL)
84.85 mm
Radius of Curvature (R)
40.625 mm

Center Thickness (Tc)
5.040 mm
Principal Plane 2 (P2)
-3.45 mm
Design Wavelength
589 nm
Centration
≤3 arc min
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Focal Length Tolerance
±1 %
Diameter Tolerance
+0/-0.1 mm
Center Thickness Tolerance
±0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Resources & Downloads

3D Product Models

2D Product Drawings

SPX020_ZEMAX(958 B, ZIP)
PLANOCO1 VEX-S(89.6 kB, PDF)

Other

SPX020 RoHS Certificate(705.6 kB, PDF)
