Optical Post, 4.0 in. Height, 1.5 in. Diameter, 1/4-20 Thread

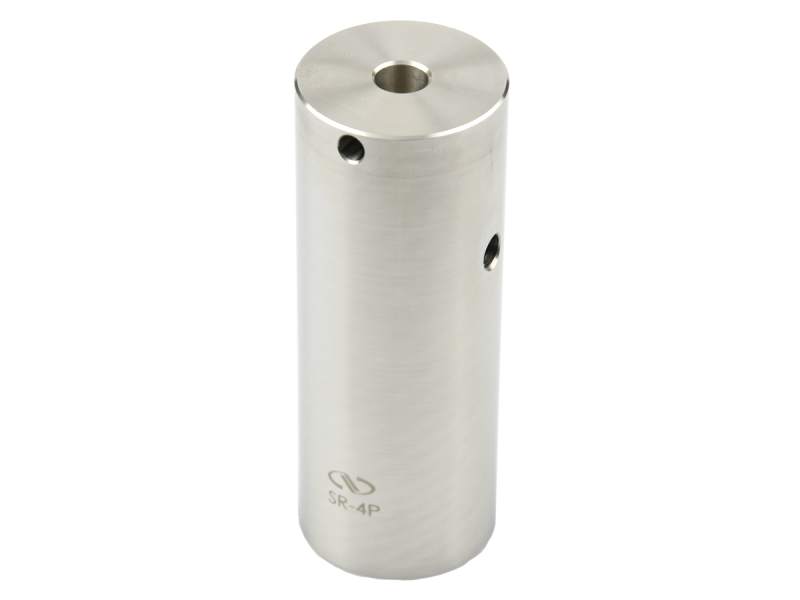

For use with the SR-SC sliding clamp, the SR-4P is a special purpose extension rod. It features a “V” groove running axially down the length of the rod and includes Newport’s patented peg fastener. The “V” groove allows the SR-SC sliding clamp with its spring-loaded ball detent to ride linearly along the SR-4P’s preventing unintentional rotation during height adjustment. The peg fastener allows two SR-4P to be combined and then aligned for extended travel, owing to the fact that the alignment cannot be accomplished with a standard threaded set screw.

Specifications

Technical Specs

Type
Grooved Extension Post
Height
101.6 mm

Material
Stainless Steel
Diameter
38.1 mm

Type
Grooved Extension Post
Height
101.6 mm

Material
Stainless Steel
Diameter
38.1 mm

Resources & Downloads

3D Product Models

2D Product Drawings

SR-P(122.7 kB, PDF)

Other

SR-4P RoHS Certificate(278.5 kB, PDF)
SR-4P_RoHS2021.pdf(681.7 kB, PDF)
