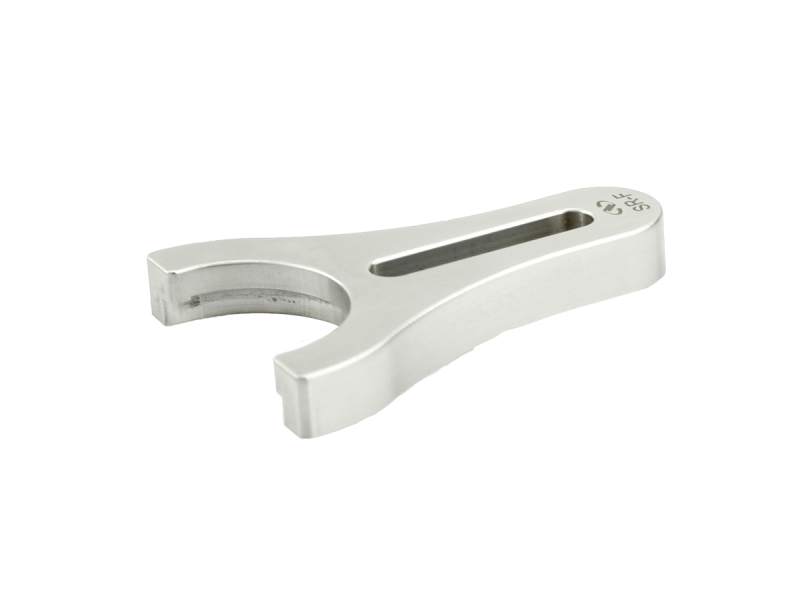

Clamping Fork, 1.5 in. Diameter Pedestal Pillar, 1/4-20 (M6) Slot

The SR-F Pedestal Pillar Clamping Fork is made with stainless steel and used to provide fixed mounting of any of the SR Series 1.5 in. (38.1 mm) diameter pedestal pillars. A 1/4-20 (M6) slot provides a full 1.0 in. (25.4 mm) of adjustment and is compatible with either 1/4-20 or M6 socket-head cap screws.

Specifications

Technical Specs

Type
Pillar Clamping Fork

Material
Stainless Steel

Type
Pillar Clamping Fork

Material
Stainless Steel

Resources & Downloads

3D Product Models

2D Product Drawings

SR-F-304(81.6 kB, PDF)

Other

SR-F RoHS Certificate(276.3 kB, PDF)
SR-F_RoHS2021.pdf(675.5 kB, PDF)
