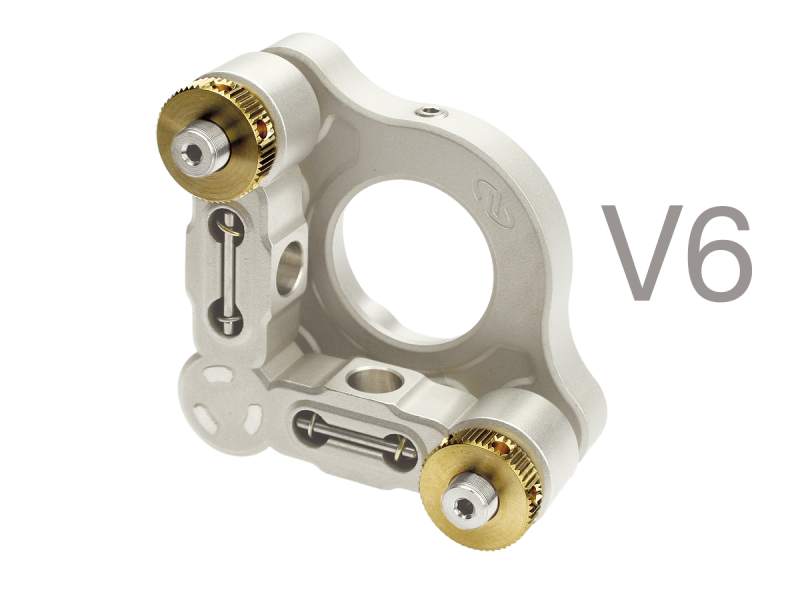

Mirror Mount, Suprema^®, 1.0 in, (2) 100-TPI Locking Hex Actuators, Vacuum

The SS100-F2H-V6 vacuum compatible Suprema^® Stainless Steel Kinematic Optical Mounts are fabricated from powdered stainless steel and specially prepared high vacuum environments.The SS100 has Full Aperture version with 100-TPI actuators. Polished and lapped carbide pads enable smooth, repeatable motion and outstanding stability. These mounts have a two-actuator configuration with locking Hex Adjustment Screws providing tip and tilt adjustability. Convenient 8-32 (M4) counterbored clearance holes provide quick, precise, secure and stable mounting. Suprema mounts are compatible with standard post and post holder systems for adjustable height and pedestal posts for a stable fixed height.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
Yes
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec

Optic Loading
Front
Material
Stainless Steel
Drive Type
Allen-Key, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Vacuum Compatibility
10^-6 Torr

Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
2
Actuator Locks
Yes
Adjustment Screw Thread
100 TPI
Adjustments
θx, θy
Sensitivity
3.8 arc sec

Optic Loading
Front
Material
Stainless Steel
Drive Type
Allen-Key, locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Vacuum Compatibility
10^-6 Torr

Resources & Downloads

3D Product Models

2D Product Drawings

SS100 and SC100(630.9 kB, PDF)
Vaccum Compatible Products Brochure(3.8 MB, PDF)

Other

MKS EU RoHS3 - SN100C-F2H-V6 and SS100-F2H-V6(222.1 kB, PDF)
