Motorized Actuator, Compact, 12 mm Travel, DC Servo Motor, 90N

Motorized Actuator, Compact, 12 mm Travel, DC Servo Motor, 90N

Model: TRB12CC

$1,658

Compare

Product Series Overview

The TRB12CC Compact DC Servo Actuator provides 12 mm travel with sub-micron MIM, very good repeatability and high push force. TRB actuators can replace micrometers which are used a wide variety of linear stages, mirror mounts, and OEM applications.

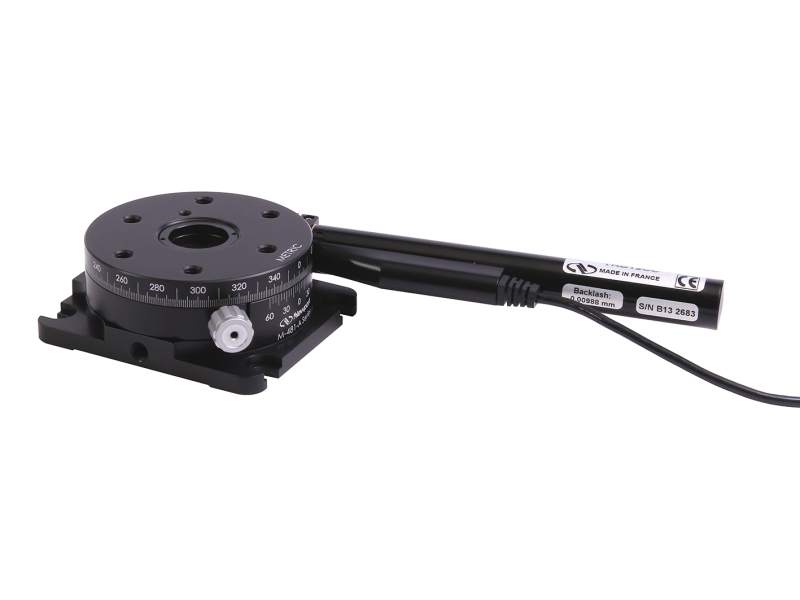

Replace Manual Actuators on Stages and Mounts

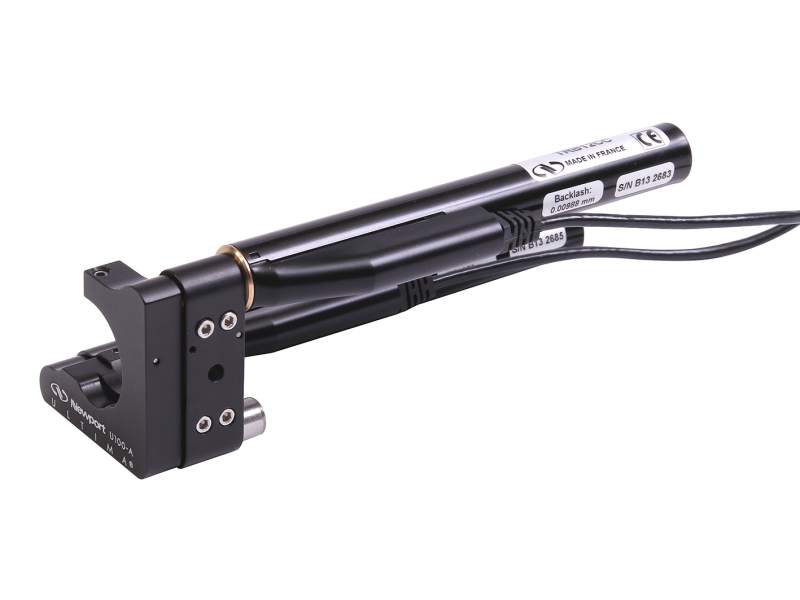

TRB actuators work great as replacements for adjustment screws or micrometers on manual stages and optical mounts. For more details refer to the TRA and TRB Series Compatibility guide. Once upgraded, the set-up can be automated for hands-free positioning or controlled remotely.

Specifications

Technical Specs

Travel Range
12 mm
Maximum Speed
2 mm/s
Minimum Incremental Motion
0.10 µm
Push Force
90 N
Accuracy, Typical
±2.0 µm
Accuracy, Guaranteed
±4.0 µm
Bi-directional Repeatability, Typical
±0.13 µm
Bi-directional Repeatability, Guaranteed
±0.75 µm
Uni-directional Repeatability, Typical
±0.08 µm
Uni-directional Repeatability, Guaranteed
±0.25 µm

Origin Repeatability
±2 µm
Cable Length
1.5 m
Power Consumption
10 W
Weight
0.23 kg
MTBF
10000 h (25N load, 10% duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Travel Range
12 mm
Maximum Speed
2 mm/s
Minimum Incremental Motion
0.10 µm
Push Force
90 N
Accuracy, Typical
±2.0 µm
Accuracy, Guaranteed
±4.0 µm
Bi-directional Repeatability, Typical
±0.13 µm
Bi-directional Repeatability, Guaranteed
±0.75 µm
Uni-directional Repeatability, Typical
±0.08 µm
Uni-directional Repeatability, Guaranteed
±0.25 µm

Origin Repeatability
±2 µm
Cable Length
1.5 m
Power Consumption
10 W
Weight
0.23 kg
MTBF
10000 h (25N load, 10% duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Resources & Downloads

Drawings And Cad

TRB12(401.6 kB, PDF)

Literature

TRB Data Sheet.pdf(1.4 MB, PDF)

Manuals

TRB User's Manual.pdf(1.4 MB, PDF)

Related Products

Frequently Purchased Together

Description	Compatibility	Price
ESP302-3NMotion Controller & Driver, 3-Axis, Ethernet, RS232	UNIVERSAL	$5,853
SMC100CCMotion Controller, Single-axis DC Motor	UNIVERSAL	$1,383
SMC-PS80Power Supply, SMC100 Series, 80W, 100-240 VAC, 47-63 Hz, 1.9 A max.	UNIVERSAL	$176
XPS-DRV01PWM Drive Module, DC and Stepper Motors	UNIVERSAL	$907
XPS-D8Universal Motion Controller, High Performance, 8-axis, Ethernet	UNIVERSAL	$11,822

Compatible Controllers

Based on axis required, choose a specific controller to pair with the stage. Along with an XPS-D or XPS-RLD controller, a driver module is required.

Description	Compatibility	Price
xps-rl-universal-high-performance-motion-controller¹XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver	UNIVERSAL
xps-d-universal-motion-controller²XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver	UNIVERSAL
esp301-3-axis-dc-and-stepper-motion-controllerESP302 3-Axis DC and Stepper Motion Controller	UNIVERSAL
SMC100CCMotion Controller, Single-axis DC Motor	UNIVERSAL	$1,383

Notes:

Requires XPS-DRV01 driver module. plug XPS-DRV01 to slots other than slot 1.
Requires XPS-DRV01 driver module

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CONEX-TRA25CCLinear Actuator, DC Servo, 25 mm Travel, TRA25CC and CONEX-CC Controller	UNIVERSAL			$1,775
		LTA-HSMotorized Actuator, High Speed, 50 mm Travel, 3/8-40 Thread	UNIVERSAL			$2,463
