Offset Gimbal adapter, 0.5 inch, For U50-A Mount

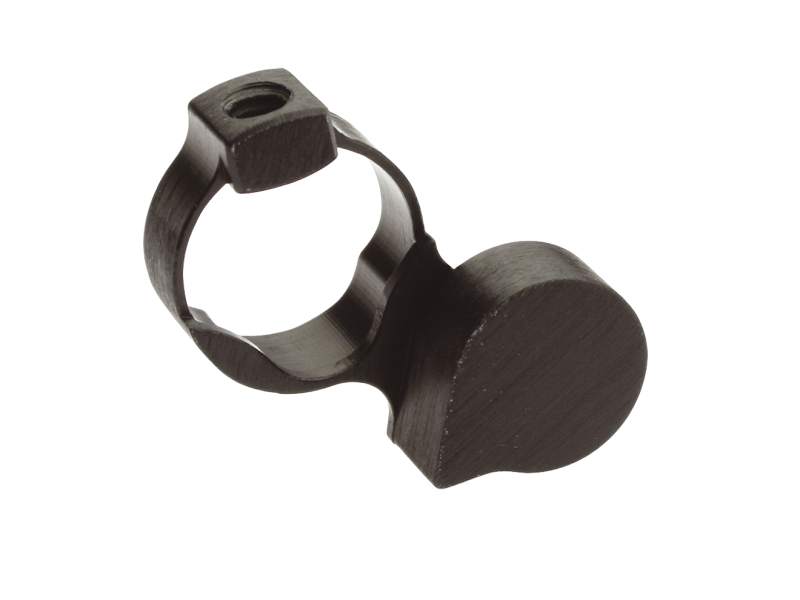

The UPA-PUZ.5 Offset Gimbal Adaptor inserts into U50-A aperture mounts and provides gimbal motion (tilt without translation) by adjusting two adjacent actuators. This is accomplished by placing the center of the optic in the corner, at the intersection of the actuator axes.

Specifications

Technical Specs

Optic Diameter
12.7 mm

Special Features
Mounting adapter

Optic Diameter
12.7 mm

Special Features
Mounting adapter
