Mirror Mount Size Adapters
Mirror Mount Size Adapters
Mirror size adapters offered by Newport cover a broad range of sizes and configurations. They are easily adaptable between various optic diameter standards.
- Various size adapters for mounting a broad range of optics
- Mirror size adapters for kinematic and gimbal mounts
- Mirror size adapters for platform mounts See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 605A-2-1 Mirror Mount Size Adapters Optical Diameter Adapter, 605-2 Gimbal Mount, 2.0 to 1.0 in. | |||||
 | 605A-4-3 Mirror Mount Size Adapters Optical Diameter Adapter, 605-4 Gimbal Mount, 4.0 to 3.0 in. | |||||

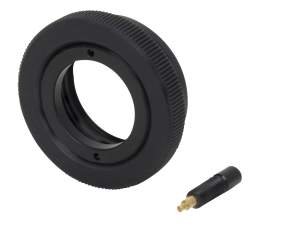

 | A-1.25-1 Mirror Mount Size Adapters Thin Optic Adapter, 1 inch (25.4 mm) Diameter | Discontinued | ||||

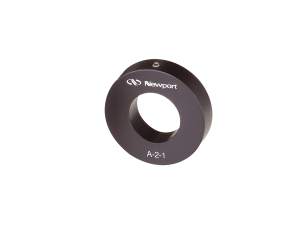

 | A-2-1 Mirror Mount Size Adapters Optical Mount Adaptor, 50.8 mm to 25.4 mm (2 to 1 inch) | |||||

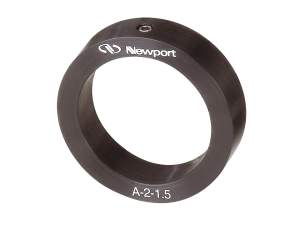

 | A-2-1.5 Mirror Mount Size Adapters Optical Mount Adaptor, 50.8 mm to 38.1 mm (2 to 1.5 inch) | |||||

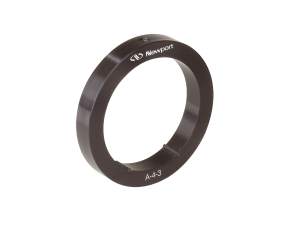

 | A-4-3 Mirror Mount Size Adapters Optical Mount Adaptor, 101.6 mm to 76.2 mm (4 to 3 inch) | |||||

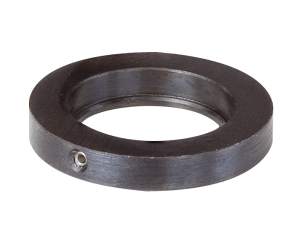

 | A-75-50 Mirror Mount Size Adapters Optical Mount Adaptor, 19.1 mm to 12.7 mm (0.75 to 0.5 inch) | |||||

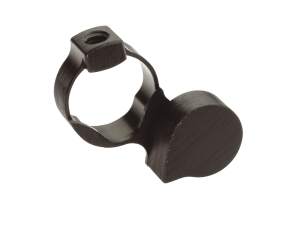

 | UPA-PUZ.5 Mirror Mount Size Adapters Offset Gimbal adapter, 0.5 inch, For U50-A Mount | Discontinued | ||||
 | UPA-PUZ1 Mirror Mount Size Adapters Offset Gimbal adapter, 1 inch, For U100-A Mount | Discontinued | ||||

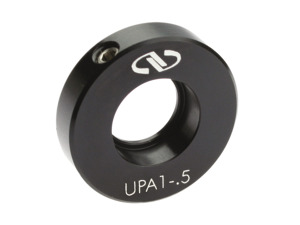

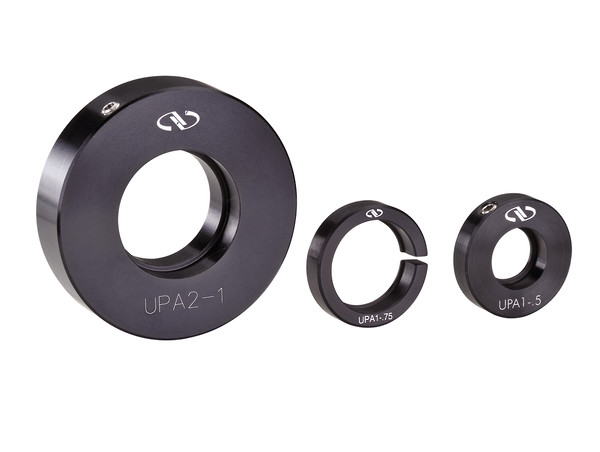

 | UPA1-.5 Mirror Mount Size Adapters Mirror Mount Adapter, 25.4 mm to 12.7 mm Diameter, For ULTIMA<sup>®</sup> | |||||
Features

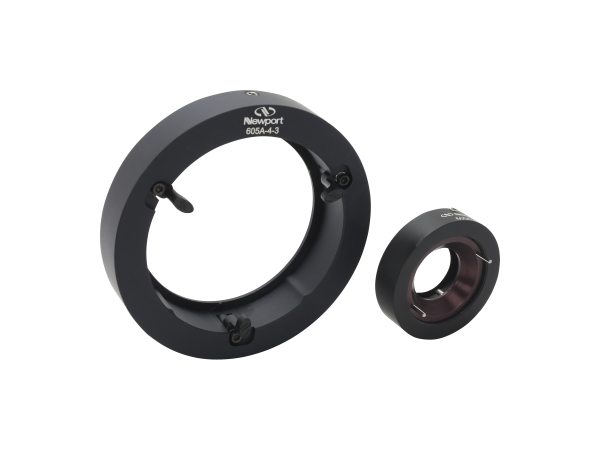

Low Wave Front Distortion Adapters
Designed for full range Gimbal Mounts 605-4 and 605-2, the 605A series adapters have an axial three-point mounting mechanism to gently, but securely, hold optics with tight flatness tolerances. With the axial 3-point mounting, because there are twice as many mounting points, the forces that would cause distortion are essentially cut in half, more distributed, and axially opposite to eliminate bending.

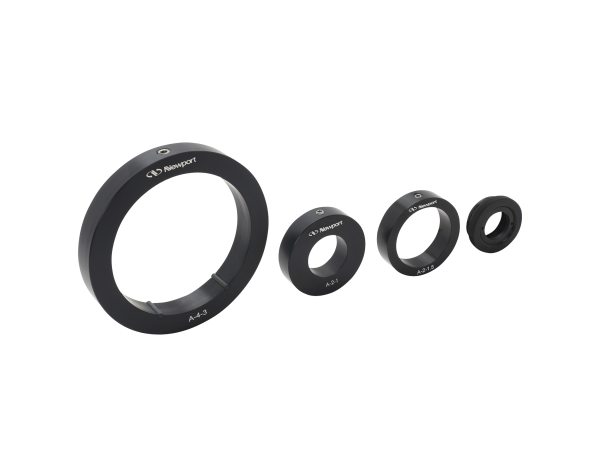

Optic Mount Adapters
A-1.25-1, A-2-1, A-2-1.5 and A-4-3 are basic size adapters that work with your existing optical mounts and extend their compatibility to different size optics.
