UV Beam Viewer, 66 mm Diameter, 48.3 mm Clear Aperture, 193-355 nm

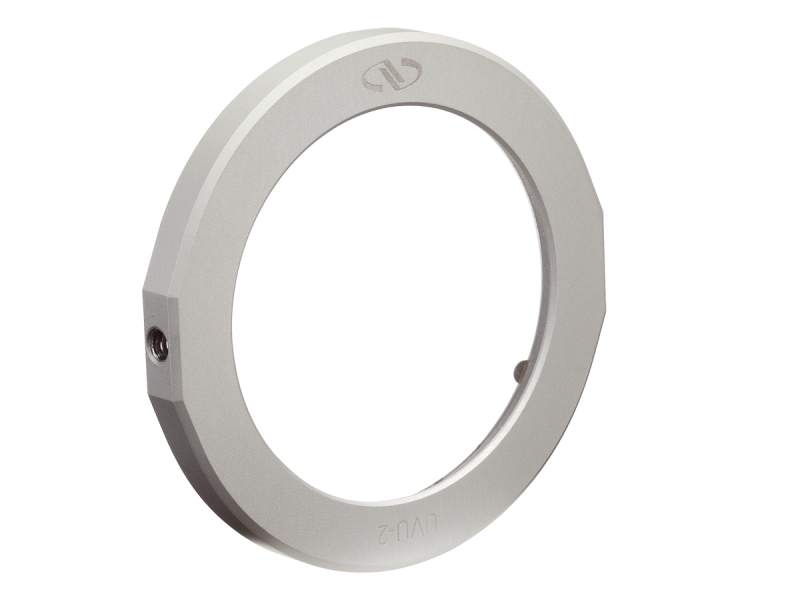

The UVU-2A UV Beam Viewer is suitable for high power applications, is cleanroom-compatible, and it is transmissive (resulting in much easier beam alignment). By placing this optically clear device into the optical path of a UV laser, beam characteristics such as laser mode structure, beam shape, and beam alignment can be observed because the optical glass will glow green when exposed to UV radiation. The UVU-2 housing provides threaded 8-32 and M4 holes to enable use as a wand or to be fixed on a bench using our standard posts.

Specifications

Technical Specs

Type
UV Beam Viewer
Wavelength Range
193 - 355 nm
Sensor Size
Ø48.3 mm
Damage Threshold
6.0 J/cm² @ 355 nm, 10 ns, 20 Hz

Thickness
5.0 mm
Surface Quality
80-50 scratch-dig
Wedge
30 ±10 arc min

Type
UV Beam Viewer
Wavelength Range
193 - 355 nm
Sensor Size
Ø48.3 mm
Damage Threshold
6.0 J/cm² @ 355 nm, 10 ns, 20 Hz

Thickness
5.0 mm
Surface Quality
80-50 scratch-dig
Wedge
30 ±10 arc min

Resources & Downloads

3D Product Models

2D Product Drawings

41550C(182.5 kB, PDF)
