Rectangular Optic Translation Mounts
Rectangular Optic Translation Mounts
Newport's Rectangular Optic Translation Mounts are designed for use with rectangular optics such as test & calibration targets and microscope slides that require translation in one or two directions. RTF-1 and RTF-1XY offer 50 mm travel and accept optic up to 3" wide. RTF-2X offers 100 mm travel and holds optic up to 5" wide. The mounts are compatible with other rectangular optics such as dichroic filters, diffraction gratings and thin film polarizers.
- Adjustable mounting clamps
- 50 and 100 mm translation range
- Holds optic up to 5.1 mm thick
- Vernier scale for repeatable positioning
- Threaded and through hole post mounting See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

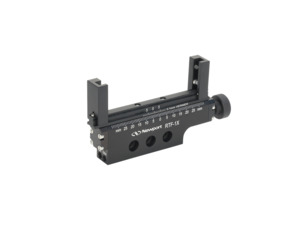

 | RTF-1X Rectangular Optic Translation MountsOne-Axis Translation Mount, 50 mm Travel, Up to 77.1 mm Wide Rectangular Optic | |||||

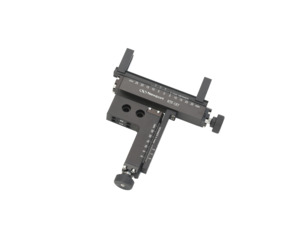

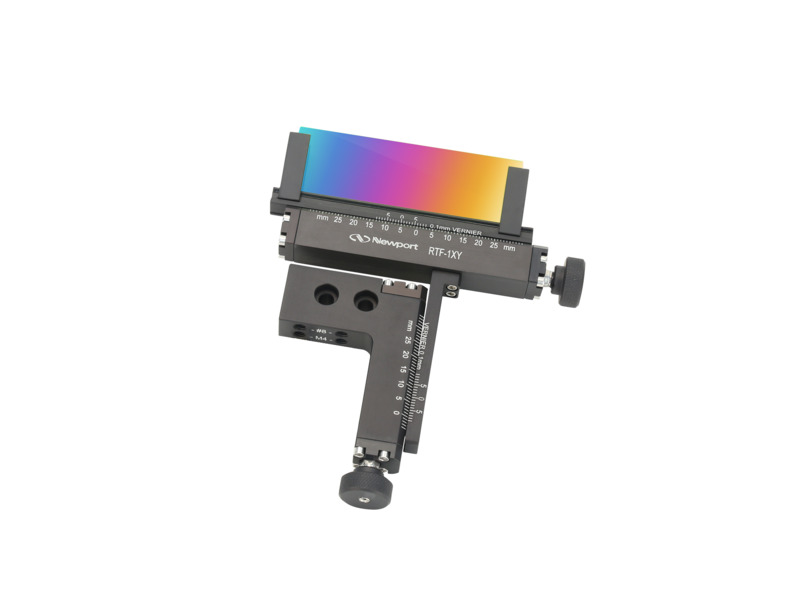

 | RTF-1XY Rectangular Optic Translation MountsTwo-Axis Translation Mount, 50 mm Travel, Up to 77.1 mm Wide Rectangular Optic | |||||

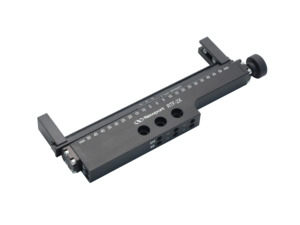

 | RTF-2X Rectangular Optic Translation MountsOne-Axis Translation Mount, 100 mm Travel, Up to 127.5 mm Wide Rectangular Optic |
Features
Adjustable Mounting with Hard Stop

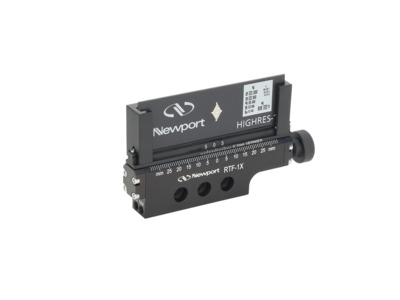

Our Rectangular Optic Translation Mounts offer one- or two-axis translation of rectangular optics such as test targets and microscope slides. The optic is secured by two clamps that can smoothly travel along the guideway to fit any optic width. A set screw at each end of the guideway prevents the clamp from oversliding.
Precise and Repeatable Positioning
Translation of the mounts in each axis is enabled by a fine pitch lead screw that provides precision adjustment of the optic position. The actuator knob can be adjusted by hand or by a 5/64" (2 mm) hex key. A bi-directional vernier scale featuring 100 µm resolution allows for repeatable positioning of the optic.

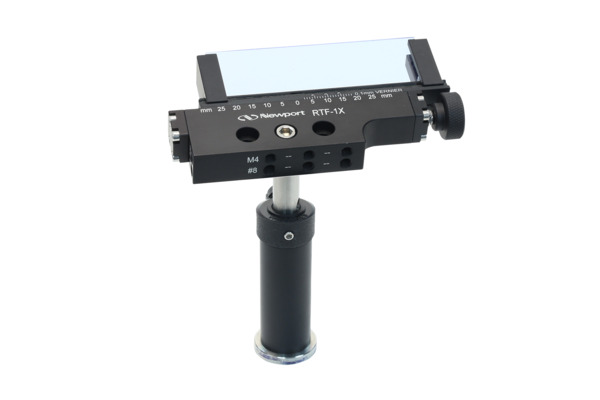

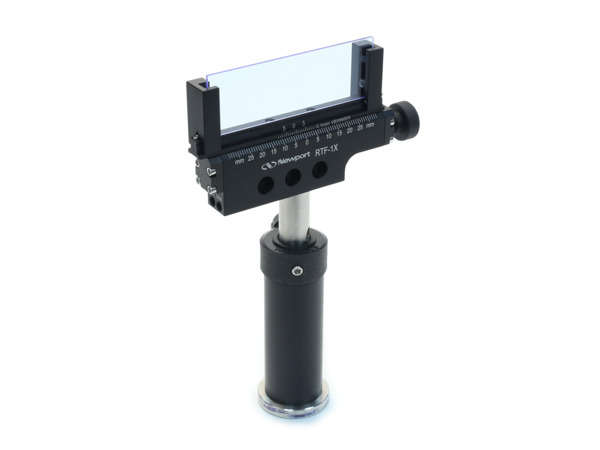

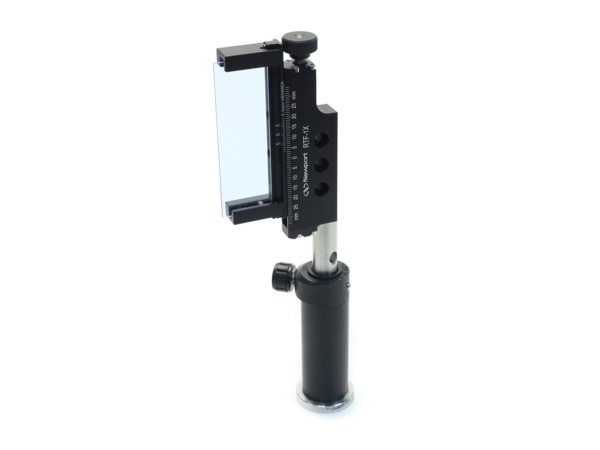

Post Mounting in Any Orientation
Each RTF mount has both 8-32 and M4 threaded holes as well as counterbored through holes. The variety of holes provides maximized flexibility to post mount it in any orientation on an optical table or under a microscope.
