High-Energy Nd:YAG Laser Thin Film Polarizers
High-Energy Nd:YAG Laser Thin Film Polarizers

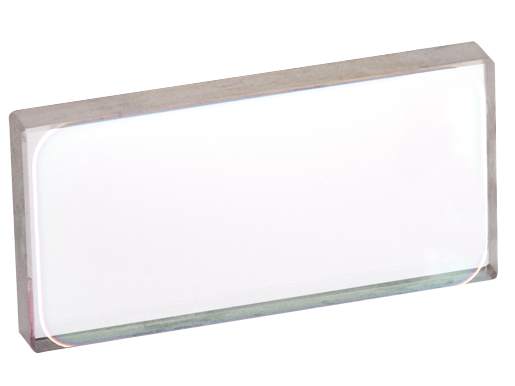

Superior high-energy polarizer performance is achieved through advanced coating design and meticulous production procedures. These optics have been developed for use in some of the most demanding lasers in the world. The polarizer coatings have been optimized for use with Nd:YAG lasers.
- High damage threshold up to 5 J/cm2
- Extinction ratio greater than 100:1
- Highly efficient, Tp >95% See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

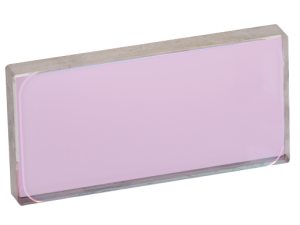

 | 11B00HP.4 High Energy Nd:YAG Laser Thin Film PolarizersThin Film Polarizer, High-Energy Nd:YAG, N-BK7, 14.3 x 28.6 mm, 532 nm | |||||
 | 11B00HP.6 High Energy Nd:YAG Laser Thin Film PolarizersThin Film Polarizer, High-Energy Nd:YAG, N-BK7, 14.3x28.6 mm, 1064 nm | |||||
| 11Q00HP.2 High Energy Nd:YAG Laser Thin Film PolarizersThin Film Polarizer, High-Energy Nd:YAG, UVFS, 14.3 x 28.6 mm, 355 nm |
Specifications
Features
Brewster’s Angle Mounting and Tuning

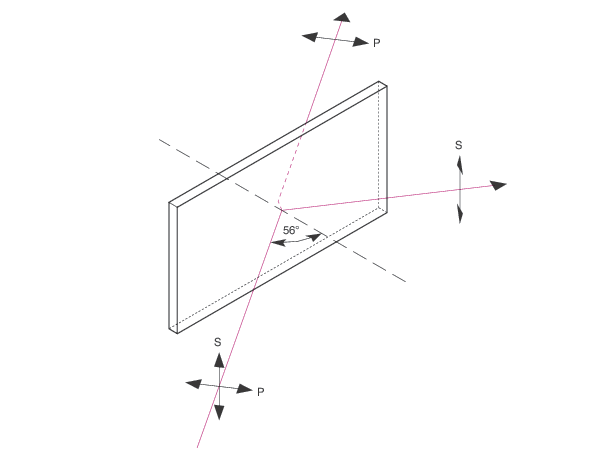

Thin film polarizers are designed to transmit p-polarized light and reflect s-polarized light. This transmission and reflection is greatest at the angle of incidence – in this case, Brewster's Angle, with extinction ratios exceeding 100:1. When setting up your experiment, fine adjustments of the polarizer's position (angular tuning) around the angle of incidence may be required to realize optimal polarization performance.
Mounting Options

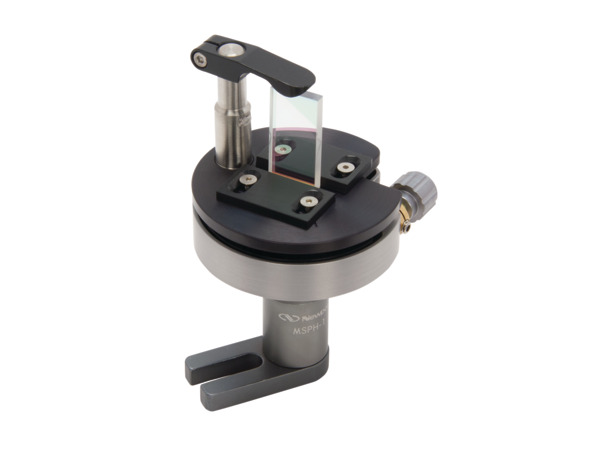

These rectangular polarizers can be mounted to a verity of our mounts such as UGP-1, M1-RQ, or CYM-2R. For applications that require angular tuning for maximized transmission, we recommend our UGP-1 Three-Axis Optic Tilt Mount, which delivers high precision yaw adjustment over a range of ±5º.
High Damage Threshold
These optics have been developed for use in some of the most demanding lasers in the industry. An advanced coating design is carefully placed on Grade A N-BK7 or UV Grade Fused Silica substrates through meticulous production procedures, resulting in damage thresholds of 5 MW/cm2 CW and 5 J/cm2 pulsed.
Advanced Coatings

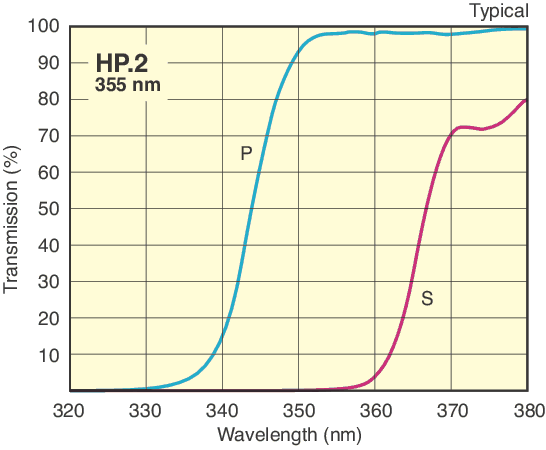

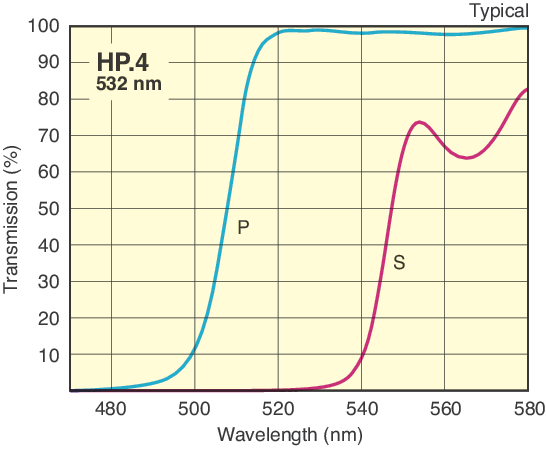

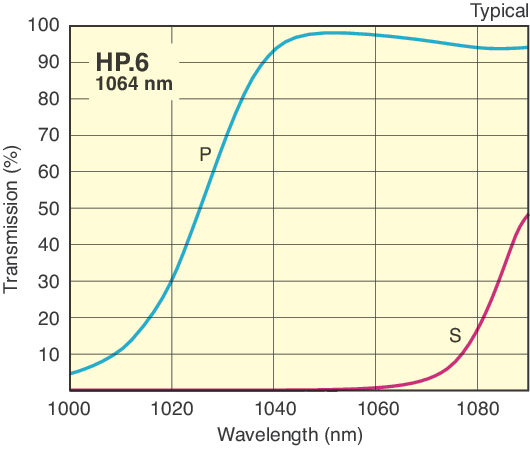

Our HP.2, HP.4 and HP.6 coatings provide 100:1 extinction ratio, high efficiency (Tp>95%) and high laser damage resistance at their design wavelengths of 355, 532 and 1064 nm, respectively.
