Thin Film Polarizer, High-Energy Nd:YAG, UVFS, 14.3 x 28.6 mm, 355 nm

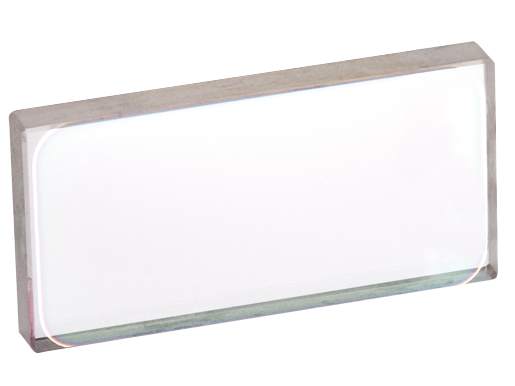

The 11Q00HP.2 is a high-energy Nd:YAG thin film polarizer, made of UV grade fused silica, with dimensions of 14.3 x 28.6 mm, and optimized for 355 nm. Superior high-energy polarizer performance is achieved through advanced coating design and meticulous production procedures, resulting in a damage threshold exceeding 5 J/cm². These optics have been developed for use in some of the most demanding lasers in the world, with polarizer coatings optimized for use with Nd:YAG lasers.

Specifications

Technical Specs

Size
14.3 x 28.6 mm
Wavelength Range
355 nm
Angle of Incidence
56° ± 3°, angular tuning required
Material
UV Grade Fused Silica
Clear Aperture
Central elliptical area, major axis ≥ 22.9 mm, minor axis ≥ 11.4 mm
Damage Threshold
5 MW/cm² CW, 5 J/cm² with 10 nsec pulses at 10 Hz @ 1064 nm
Surface Quality
10-5 scratch-dig

Extinction Ratio
100:1
Wedge
≤1 arc min
Thickness
3.2 mm
Thickness Tolerance
±0.25 mm
Size Tolerance
±0.13 mm
Efficiency
T_p > 95%, R_s > 99%, at the design wavelength
Cleaning
See How to Clean Optics

Size
14.3 x 28.6 mm
Wavelength Range
355 nm
Angle of Incidence
56° ± 3°, angular tuning required
Material
UV Grade Fused Silica
Clear Aperture
Central elliptical area, major axis ≥ 22.9 mm, minor axis ≥ 11.4 mm
Damage Threshold
5 MW/cm² CW, 5 J/cm² with 10 nsec pulses at 10 Hz @ 1064 nm
Surface Quality
10-5 scratch-dig

Extinction Ratio
100:1
Wedge
≤1 arc min
Thickness
3.2 mm
Thickness Tolerance
±0.25 mm
Size Tolerance
±0.13 mm
Efficiency
T_p > 95%, R_s > 99%, at the design wavelength
Cleaning
See How to Clean Optics

Resources & Downloads

3D Product Models

2D Product Drawings

ULTRAFA2-S(62.9 kB, PDF)

Other

11Q00HP.2 RoHS Certificate(267.6 kB, PDF)
11Q00HP.2_ROHS2-2021.pdf(281 kB, PDF)

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		Gimbal Prism Mount, ULTIMA<sup>®</sup>, 1 in., 100 TPI Adjustment Screws	UNIVERSAL				Learn More
		UGP Adapter Kit, Rectangular Optics	UNIVERSAL				Learn More
