UGP Adapter Kit, Rectangular Optics

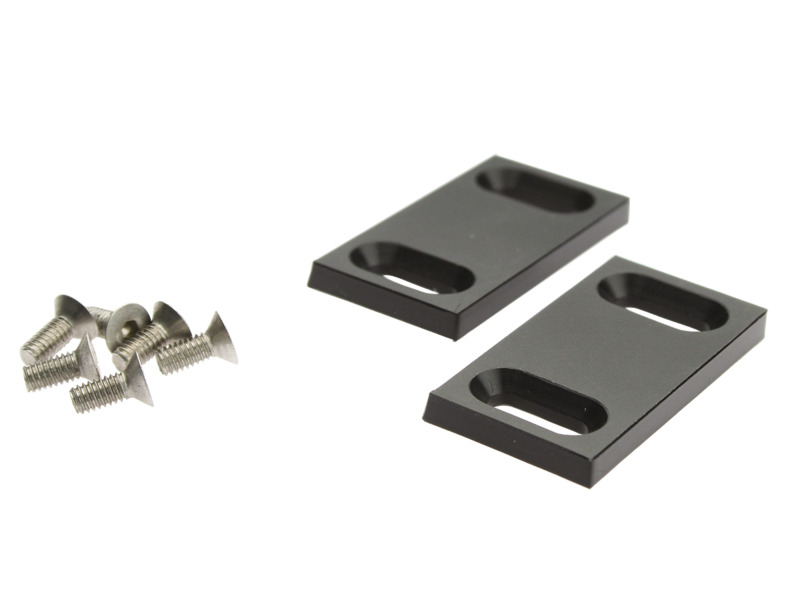

Rectangular Optics Adapter Kit for UGP-1 ULTIMA^® Gimbal Tilt Mount and OC1-CM-A OpticsCage⁺ Adjustable Cube Mount. This kit includes a pair of plates and six M2.5 flat head screws.

Resources & Downloads

3D Product Models

2D Product Drawings

UGP-KIT-2-257(173.7 kB, PDF)

Other

UGP-KIT-2_RoHS2021.pdf(682.1 kB, PDF)
