460P Series Linear Stage Base Plates
460P Series Linear Stage Base Plates

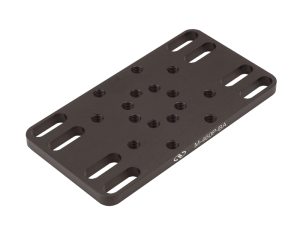

These slotted base plate are designed for use with a 460P Series high performance modular ball bearing linear stages
- For use with a 460P Series linear stages
- 1/4-20 (M6) mounting slots for adjustability
- Hole pattern for easy 460P stage mounting See All Features
Features
Slotted Base for Peg-Joining Stages

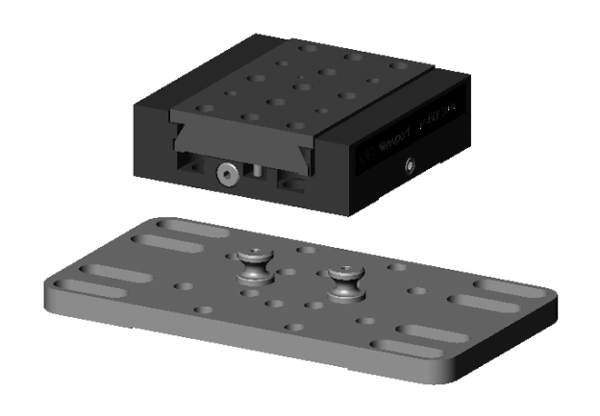

The 460P-BA Slotted Base Plate is designed for the 460P Series Modular Peg-Joining Ball Bearing Stage and 460PD Series Modular Peg-Joining Dovetail Stage for quick release and repositioning via the pegs. The slot design allows a coarse positioning of the stage within 0.524 in. (13.3 mm) range.
