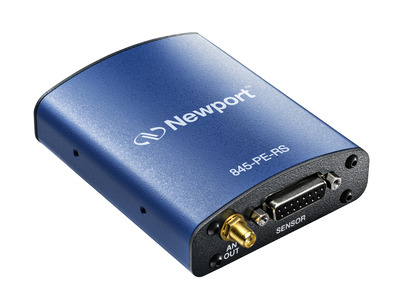

845-PE-RS Virtual Optical Power and Energy Meter
845-PE-RS Virtual Optical Power and Energy Meter
The 845-PE-RS Virtual Power Meter provides easy integration into automation systems (e.g. PLC) using RS-232. It also turns a PC or laptop into a full-fledged Newport laser power and energy meter. The 845-PE-RS also features an analog output which provides an output voltage proportional to the power/energy measured. Just install the PMManager software, plug the sensor into the 845-PE-RS and connect with a standard RS-232 cable to your PC.
- Measure down to picowatts with photodiode sensors
- Measure up to 5 kW with thermopile sensors
- RS232 interface with powerful PMManagerTM PC application
- Advanced logging and data processing with included PMManager
- Plug and play with all standard Newport smart sensors
- Analog output in autonomous mode See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 845-PE-RS 845-PE-RS Virtual Optical Power and Energy MeterVirtual Power Meter, RS232 |
Features
PMManager™ Application Software
PMManager™ is a powerful application software controlling and taking measurement data. It turns a PC into a laser power multi-channel analysis workstation. The PMManager software features include: extensive graphic display of data, advanced measurement processing, data logging for future review, printing of graphs and data, and the ability to connect additional devices during active measurements. The PMManager software package includes the latest PMManager user manual, the COM object manual, the available user command lists, and automation examples written in various programming languages. Please see below or the PMManager Tutorial for more details regarding its capabilities.
Directly Access All Detector Parameters

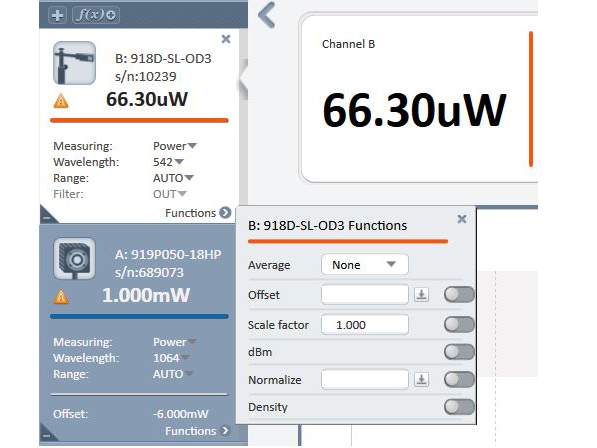

All detector parameters are directly accessible from PMManager. Major parameters are available on the detector information window, and further functions are available by clicking 'Functions' button.

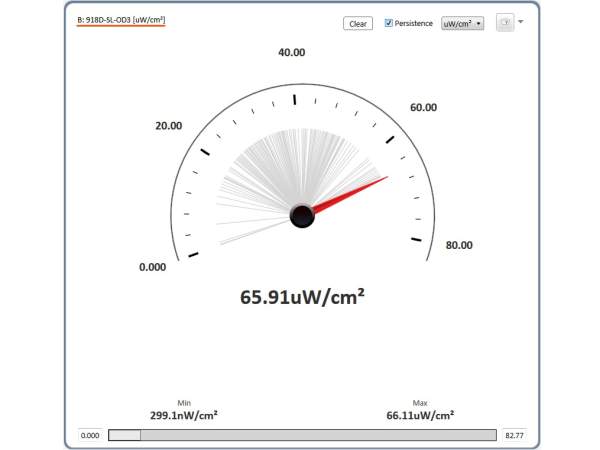

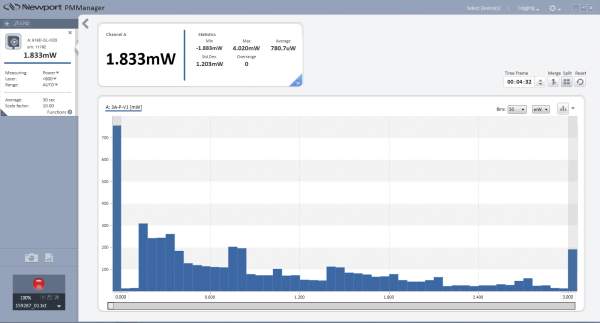

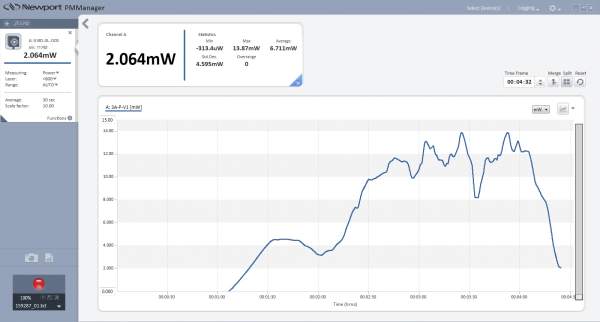

Extensive Graphic Displays

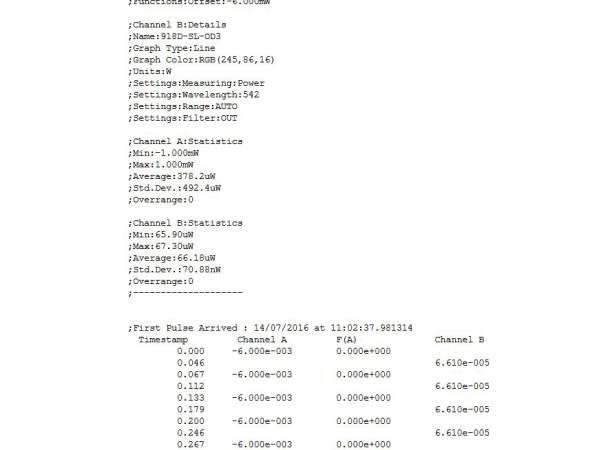

Data Logging for Future Review
- Can be displayed graphically or saved in text format

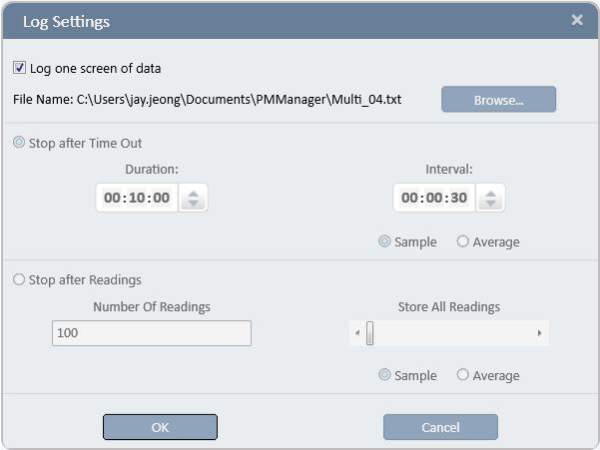

- Log data based on the time interval or on the number of data points
- Easily exported to an Excel spreadsheet
Advanced Measurement Processing
- Power/Energy Density, Scale Factor, Normalize against a reference
- Multi-channel comparisons
- User defined mathematical equations: channels A/B, (A-B)/C etc.
- Log every point at up to 10 kHz with Pyro sensors in binary mode
- Log every point at up to 1 kHz with Pyro sensors in ASCII mode

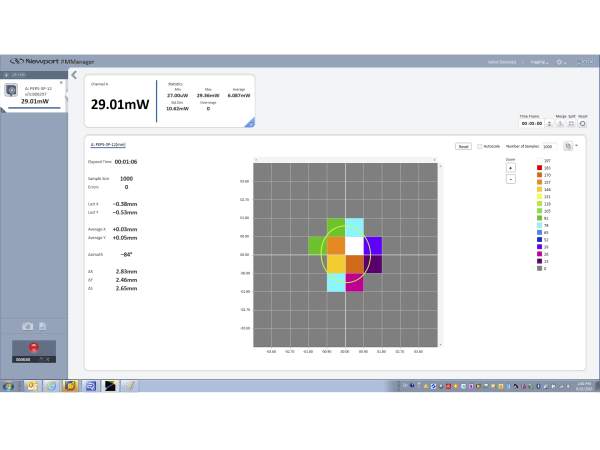

- Position & size measurement with PEPS sensors

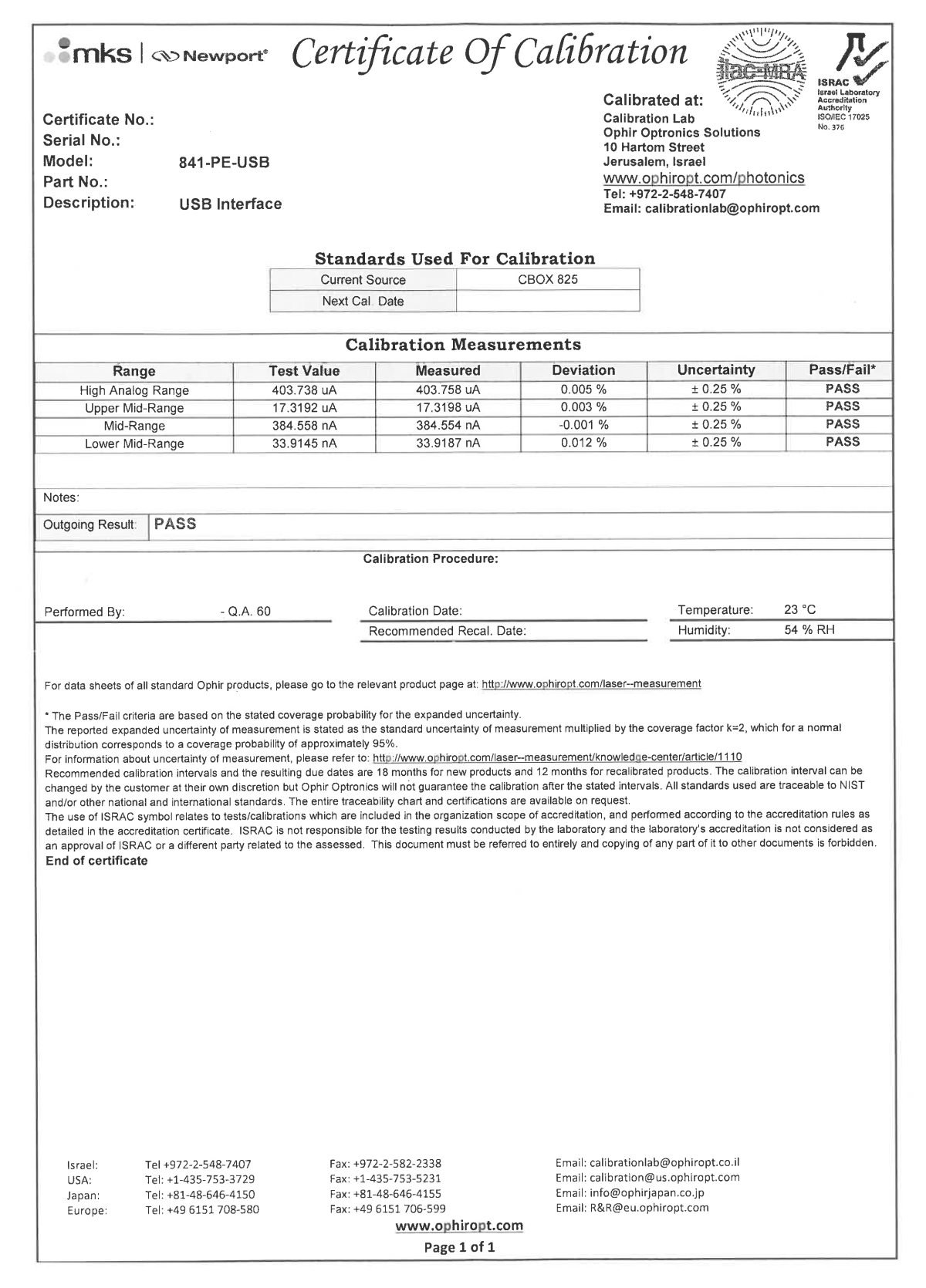

Calibration Report Included
Newport certifies calibration performed using standards traceable to the National Institute of Standards and Technology (NIST) and other recognized national standards laboratories. Included with your new instrument is a comprehensive calibration report. Newport also recommends recalibration every 12 months.
Compatible Detectors
- 918D High Performance Photodiode Sensors
- 818-xx/DB Low Power Calibrated Photodiode Sensors
- 818/918D Wand Style Calibrated Photodiode Sensors
- 818 Fiber Optic Detectors
- 819C/819D Calibrated Integrating Sphere Sensors
- 918D Fiber Optic Detectors, Sphere-Based
- 919P Thermopile Sensors
- 919E Pyroelectric Laser Pulse Energy Sensors
- Lock-in Amplifier Detectors
Please refer to Newport Power Meter and Detector Legacy Compatibility for the most up-to-date compatibility chart.
Ideal for Industrial Automation and Production
The 845-PE-RS is a Power Meter that allows connectivity of smart power sensors to automation systems and computers using RS-232 communication. When equipment space is tight or the automation system (PLC)/computer is mandating RS232 communication, 845-PE-RS is an ideal solution. In addition to RS232 output, it also has a configurable analog output which can work in two modes raw and digital. It can reach output voltage of 0-10 Vmax. Its robust connector makes it ideal for use in a semi-industrial environment, assuring firm connectivity of the cable.
The 845-PE-RS, can be integrated into 3rd party systems using a dedicated command set or used with Newport PMMmanger. PMManagerTM is a powerful, easy to install, PC application software that controls the power meter and takes measurement data. The 845-PE-RS includes a calibration certificate, power supply, RS232 cable and a PMManager quick installation guide.
Analog Output
The 845-PE-RS features an analog output, allowing easy connectivity to external controllers or test equipment. Its robust connector makes it ideal for use in a semi-industrial environment, assuring firm connectivity of the cable. There are two different optional modes of analog output available - Raw or Digital:
- ‘Digital’ analog output is a calibrated voltage representation of the precisely measured (processed) laser power, where the user selected power range is matched to user selectable full-scale values of either 1, 2, 5 or 10 Volts – useful for reading the measurements into an automation system for control and monitoring.
- ‘Raw’ analog output is a continuous non-digitized amplified signal, sourced directly from the sensor with little conditioning, and routed to the analog output voltage - useful for analyzing the temporal shape of fast laser pulses with photodiode sensors.
Additionally, the 845-PE-RS can function in an autonomous mode, meaning once configured it can measure standalone without any external communication when connected just to a sensor and it’s power supply. In autonomous mode the 845-PE-RS will continue to produce an analog output voltage relative to the measurement – even after a restart.
Low Frequency Power Mode
Low frequency power mode is useful when measuring the average power of pulsed lasers with a frequency in the 5 - 100Hz range. Using the regular power mode with such a laser source can cause beating effects and saturation of the electronics, which causes unstable or incorrect readings in many cases.
An example of such relevant laser sources are VCSEL's, which the 845-PE-RS when in “Low Frequency Power” mode can measure, with steady accurate power readings.
Resources
Manuals
PMManager User's Manual 3.50(5.7 MB, PDF) LMMeasurement COM Object Manual Version 13(580.3 kB, PDF) 845-PE-RS User Notes(84.4 kB, PDF) PMManager User Manual rev 3.90-2(5.3 MB, PDF)
Tutorials
Literature
845-PE-RS Datasheet(1.9 MB, PDF)
