Various fiber adapters and connector adapters are available for the 919P series Thermopile Sensors
- FC and SMA fiber adapters for 919P sensors
- Fiber adapter rings to accommodate various aperture sizes
- Connector adapters to connect to an oscilloscope or a legacy power meter See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 7Z11057 919P Thermopile Sensor Accessories919P-BNC Adapter, DB15 to BNC, For DVM or Scope Use | |||||

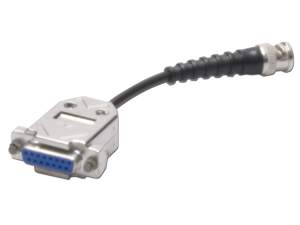

 | 818P-BNC 919P Thermopile Sensor AccessoriesAdapter, DB15 to BNC, For DVM or Scope Use | Discontinued | ||||

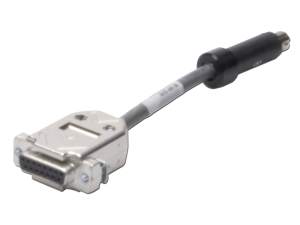

 | 818P-DIN 919P Thermopile Sensor AccessoriesAdaptor, DB15 to DIN, or 1835-C or 2835-C Power Meter Use | |||||
 | 919P-18FA 919P Thermopile Sensor AccessoriesFiber Adapter Mounting Ring, 919P Series with 18 mm Active Diameter | |||||

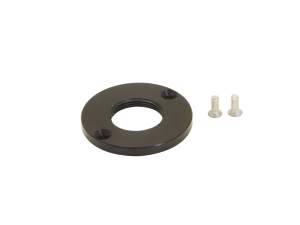

 | 919P-26FA 919P Thermopile Sensor AccessoriesFiber Adapter Mounting Ring, 919P Series with 26 mm Active Diameter | |||||

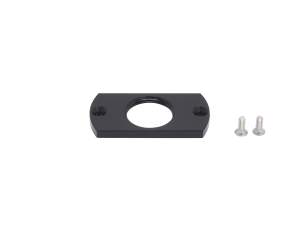

 | 919P-35FA 919P Thermopile Sensor AccessoriesFiber Adapter Mounting Ring, 919P Series with 35 mm Active Diameter | |||||
 | 919P-50FA 919P Thermopile Sensor AccessoriesFiber Adapter Mounting Ring, 919P Series with 50 mm Active Diameter | |||||

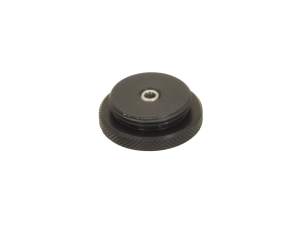

 | 919P-FC 919P Thermopile Sensor AccessoriesOptical Fiber Adapter, FC/PC, 919P Series Thermopile Power Sensors | |||||

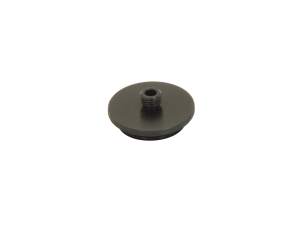

 | 919P-SMA 919P Thermopile Sensor AccessoriesFiber Adaptor, SMA, 919P Series Thermopile Power Sensors | |||||
Features
Flexible Fiber Adapters
|
Detector Model |
Required Mounting Ring |
|
919P-030-18 |
919P-18FA |
|
919P-040-50 |
919P-50FA |
|
919P-050-26, 919P-150-26 |
919P-26FA |
|
919P-250-35 |
919P-35FA |
|
919P-020-12, 919P-050-18H |
Fiber adapters not mountable |
The 919P-SMA and 919P-FC fiber adapter can be used with most of the detector models. Remove the snout for Models 919P-003-10 and 919P-010-16 and directly mount the fiber adapters on the thread. In order to accommodate various aperture sizes, we provide adapter rings as well as the fiber adapters. Refer to the table for the corresponding adapter ring for each detector model. Note that certain models do not accept a fiber adapter.
Cable Adapters
Resources
Literature
919P Detector Datasheet(1.5 MB, PDF)
