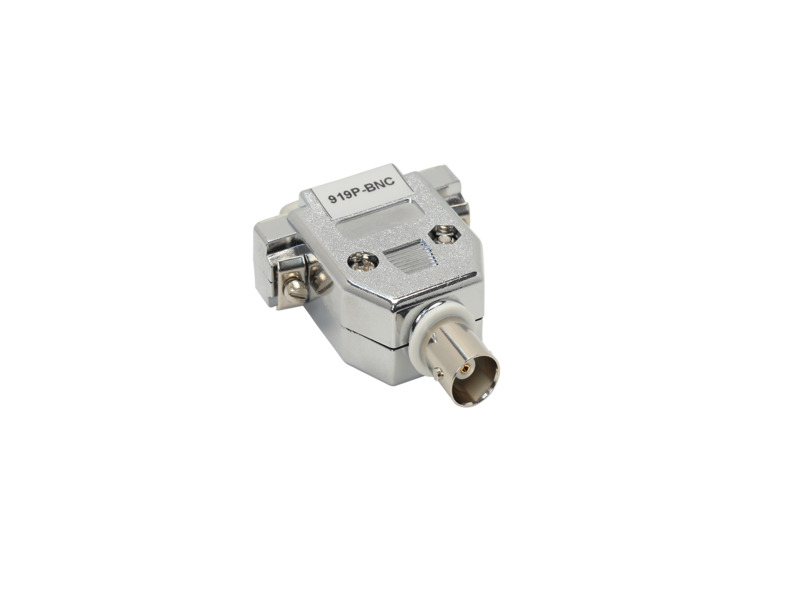

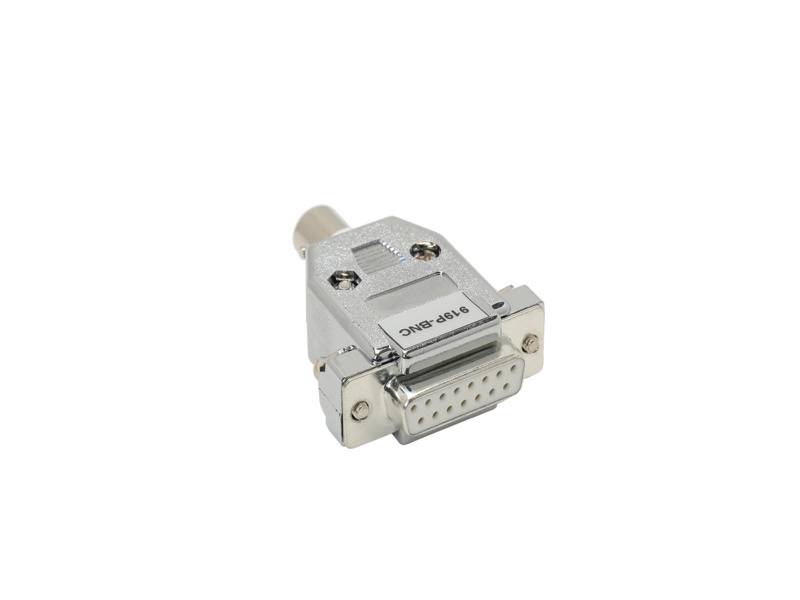

919P-BNC Adapter, DB15 to BNC, For DVM or Scope Use

The 919P-BNC (P/N 7Z11057), replacing the obsolete 818P-BNC, converts DB15 terminated optical detectors to BNC for connection to a digital voltmeter (DVM) or an oscilloscope. This part is ideal for measuring the voltage output from 818E series pyroelectric detectors, and 818P and 919P series thermopile detectors into a DVM or an oscilloscope. It can also be used as a connector adapter for connecting Newport’s 818, 818C/D, or 918D series photodiode detectors to legacy optical power meter models 1815-C and 1825-C, which have a BNC input.
Note that it is not compatible with the 919E series pyroelectric detectors.
Resources & Downloads
3D Product Models
2D Product Drawings
919P-BNC dimensional drawing.pdf(152.3 kB, PDF)
