Piezo Rotation Stage With CONEX-AGP Controller
Piezo Rotation Stage With CONEX-AGP Controller
The CONEX-AG-PR100P includes an Agilis™ piezo motor rotary stage integrated with a preconfigured closed-loop CONEX-AGP piezo motor controller and driver. Initially targeted for repeatable positioning of polarizing optics, it can also be used as a miniature rotation stage for precision positioning of other optics or lightweight samples.
- Rotary piezo stage with direct read encoder
- Integrated with ultra-compact controller and driver
- Highly repeatable angular motion and high sensitivity (MIM)
- Fast USB communication for Plug-and-Play See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CONEX-AG-PR100P Agilis™ Piezo Rotation Stage With CONEX™ ControllerPiezo Motor Rotation Stage, 1 in., Direct Encoder, Includes Controller |
Features
Closed Loop CONEX-AGP Motion Control
The CONEX-AGP is a very compact and inexpensive single axis motion controller with the same driver as the proven Agilis AG-UC2 2-axis, driver. The controller comes with the familiar CONEX GUI, simple and intuitive to use and conveniently accessible via USB, which also supplies power to the controller. For out-of-the box control, the CONEX-AGP controller is preconfigured and delivered with an Agilis AG-PR100P rotary stage or AG-GON-UP(LP) goniometric cradle. The CONEX-AGP closed-loop algorithm is a simplified version of the typical DC servo loop algorithm, and combined with the direct read encoder. For stability in-position, the user can adjust the deadband parameter that stops dithering when the stage is within a set position tolerance.
Complete Your Conex System
We also offer the CONEX-BP base plate which is used to securely mount up to 6 CONEX-AGP motion controllers to save you space and bring you convenience.
Includes Agilis Piezo Rotary Stage
The rotary stage of the CONEX-AG-PR100P is based on the Agilis AG-PR100 rotary stage, but features an innovative miniature direct read encoder. The footprint is maintained while delivering 0.002° uni-directional repeatability expected from direct read encoder technology. The rotary stage is very compact, but is capable of 340° travel. and 0.001° MIM.
Optional Top Plate
With an optional top plate AG-PR100-TP, the stage can be used for small sample positioning or other optics applications.
Accessories
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
| AG-PR100-TP Top Plate, CONEX-AG-PR100P, Mount AG-LS25 Stages or GON goniometers | |||||
 | CONEX-BP Base Plate, Mounts Multiple CONEX™ Controllers |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
| AG-PR100 Piezo Rotation Stage, 1 inch, Agilis™ | |||||
 | CONEX-AG-LS25-27P Piezo Motor Linear Stage, Direct Encoder, Integrated Controller | |||||
 | CONEX-AG-M100D Piezo Motor Mirror Mount, Absolute Positioning, Integrated Controller | |||||
 | CONEX-BGS50CC Motorized Goniometer, BGS50CC Integrated with CONEX-CC controller | |||||
 | CONEX-PR50CC Motorized Rotation Stage, PR50CC, Integrated with CONEX-CC Controller | |||||

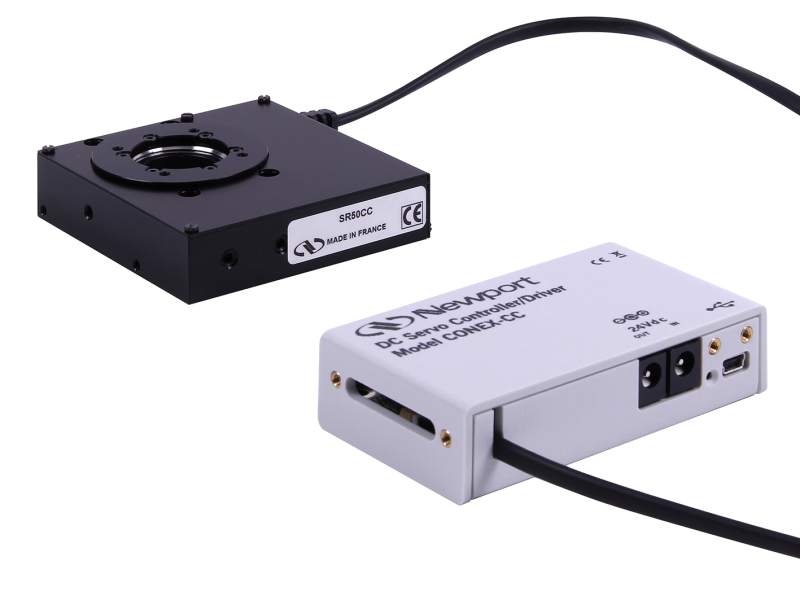

 | CONEX-SR50CC Motorized Rotation Stage, SR50CC Integrated with CONEX-CC Controller | |||||
 | CONEX-URS50BCC Motorized Rotation Stage, URS50BCC Integrated with CONEX-CC Controller | |||||
 | SR50PP Motorized Rotation Stage, Compact, 360°, Micro Step Drive Stepper, SR Series | |||||
 | URS75BPP Motorized Rotation Stage, Stepper, Continuous 360° Motion, URS75 |
