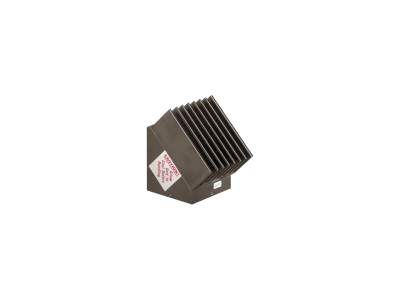

Beam Turning Assemblies

These beam turning assemblies allow the redirection of a lamp housing's output beam 90° without affecting the light's collimation properties. Each beam turning assembly consists of a heat sink integrated onto a 90 degree light tube. Mirrors are easily interchangeable within the mirror holder, allowing the user to accommodate multiple spectral output requirements for the application.

Redirect the output beam of a lamp 90° without affecting collimation
Full reflector or dichroic mirror for reflecting entire lamp output or selected wavelength range
Mirrors interchangeable within mirror holder
Can be used to protect sensitive components from damaging infrared light
Mirror holders available with 1.5 inch, 2 inch, and 3 inch Oriel^® flanges for easy coupling

See All Features

Show Filters:

Showing 9 of 9 total products

Compatibility:

Description	Compatibility	Type	Flange Series Size	Flange Type	Avail.	Price
66218 Beam Turning Assemblies Dichroic Beam Turning Mirror, 350-450 nm, Requires 66245 Housing	UNIVERSAL	Beam Turning Mirror			Discontinued
66226 Beam Turning Assemblies Dichroic Beam Turning Mirror, 280-400 nm, Requires 66246 Housing	UNIVERSAL	Beam Turning Mirror			Discontinued
66228 Beam Turning Assemblies Dichroic Beam Turning Mirror, 350-450 nm, Requires 66246 Housing	UNIVERSAL	Beam Turning Mirror			Discontinued
66236 Beam Turning Assemblies Dichroic Beam Turning Mirror, 280-400 nm, Requires 66247 Housing	UNIVERSAL	Beam Turning Mirror			Discontinued
66241 Beam Turning Assemblies Dichroic Beam Turning Mirror, 190-195 nm, Requires 66245 Housing	UNIVERSAL	Beam Turning Mirror			Discontinued
66242 Beam Turning Assemblies Dichroic Beam Turning Mirror, 190-195 nm, Requires 66246 Housing	UNIVERSAL	Beam Turning Mirror			Discontinued

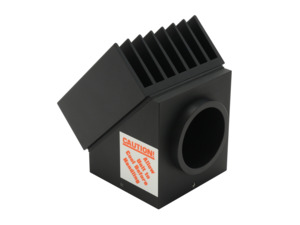

66245 Beam Turning Assemblies Beam Turning Mirror Housing, 1.5 Inch Series Flange	UNIVERSAL	Beam Turning Assembly	1.5 Inch	Male and Female		$550

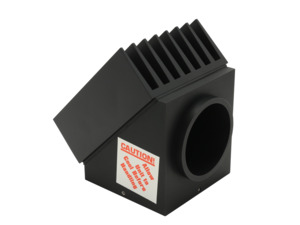

66246 Beam Turning Assemblies Beam Turning Mirror Housing, 2 Inch Series Flange	UNIVERSAL	Beam Turning Assembly	2 Inch	Male and Female		$465

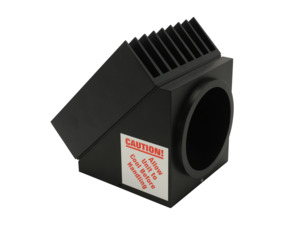

66247 Beam Turning Assemblies Beam Turning Mirror Housing, 3 Inch Series Flange	UNIVERSAL	Beam Turning Assembly	3 Inch	Male and Female		$1,815

Features

Full Reflectors Reflect Entire Lamp Output

Full Reflector type mirrors have an AlMgF₂ coating optimized to increase ultraviolet (UV) reflectivity. These mirrors reflect from 200 nm to 30 µm, making them suitable for applications in which the entire broadband output of a lamp is required.

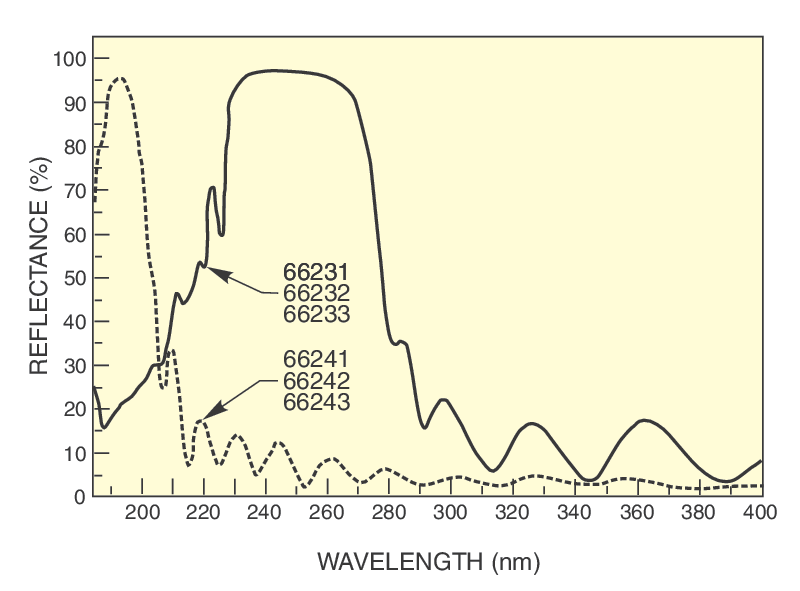

Dichroic Mirrors Reflect a Specific Portion of Lamp Output

Dichroic mirrors are designed for high reflectance and polarization insensitivity over a specific wavelength range in the UV or visible spectrums. Most of the infrared (IR) light that is potentially damaging to other components in the system is passed to an absorbing assembly behind the mirror. If additional filtering of IR light is required, a Liquid Filter can be used.

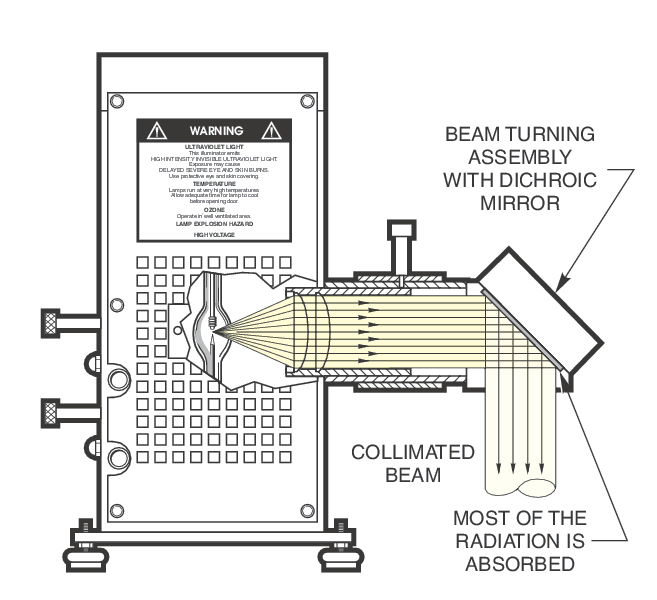

Protects Sensitive Components from Infrared Light Damage

500 and 1000 W Arc and QTH Light Sources produce high intensity IR light, which is capable of cracking bandpass filters and damaging fiber bundles. Dichroic mirrors protect optical accessories from potentially damaging IR light. Most of the IR light output is transmitted through the dichroic mirror and absorbed by the mirror housing. A heat sink dissipates the heat. It is important to be aware that the outside of the mirror housing, particularly the heat sink, becomes very hot. Caution should be used when working with these light sources and components.

1.5 Inch, 2 Inch, and 3 Inch Flange Mirror Holders Available

For easy coupling to Oriel lamp components, 1.5 inch, 2 inch, and 3 inch flanged mirror holders are available. Each mirror holder has both a male and female flange. The male flange is useful for coupling to the output of a lamp housing condenser lens. The female flange is useful for coupling to a Flanged Lens Holder, Shutter, or other male flanged component. Mirrors are interchangeable within the mirror holder, allowing the user to swap mirrors depending on the needs of his/her application.

Accessories

Mounting Flanges

Description	Compatibility	Price
66290 Flange Step Down Adapter, 3 Inch Male to 1.5 Inch Female	UNIVERSAL	$500
66292 Flange Step Down Adapter, 2 Inch Male to 1.5 Inch Female	UNIVERSAL	$160
77790 Flange Converter, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	$560
77791 Coupling Ring, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	$300
77792 Coupling Ring, Quick Connect, 1.5 Inch Series, Double Male	UNIVERSAL	$95
77829 Coupling Ring, Light Source, 1.5 Inch, Double Female, Set Screw	UNIVERSAL	$95
LT10-UADPT Adapter, Oriel<sup>®</sup> 1.5-Inch Series Flange to Newport 1-Inch LT Series	UNIVERSAL	$105
LT20-UADPT Adapter, Oriel<sup>®</sup> 1.5-Inch Series Flange to Newport 2-Inch LT Series	UNIVERSAL	$365

Full Reflector Mirrors

Description	Compatibility	Price
66215 Beam Turning Mirror, Full Reflector, 200-20,000 nm, Req. 66245 Housing	UNIVERSAL	$155
66225 Beam Turning Mirror, Full Reflector, 200 nm - 30µm, Req. 66246 Housing	UNIVERSAL	$185
66235 Beam Turning Mirror, Full Reflector, 200 nm - 30µm, Req. 66247 Housing	UNIVERSAL	$260

Dichroic Mirrors

Description	Compatibility	Price
66232 Dichroic Beam Turning Mirror, 240-255 nm, Requires 66246 Housing	UNIVERSAL	$525
66233 Dichroic Beam Turning Mirror, 240-255 nm, Requires 66247 Housing	UNIVERSAL	$1,870
66243 Dichroic Beam Turning Mirror, 190-195 nm, Requires 66247 Housing	UNIVERSAL	$700
81045 Dichroic Beam Turning Mirror, 280-420 nm, Requires 66245 Housing	UNIVERSAL	$465
