BM Thread-Mount Micrometer Heads
BM Thread-Mount Micrometer Heads

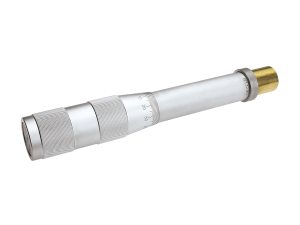

BM Series Micrometers feature micron-scale resolution and very smooth motion for precision positioning applications. They are mounted via their threaded bezel and are held in place with a threaded collar, which allows for easier front-side installation as opposed to using a back-side retaining nut.
- Threaded bezel mounting
- Large selection of sizes and travel ranges
- Compatible with UMR Series and other Newport stages See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | BM11.10 BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 10 mm Travel, 9 lb. Load | |||||
| BM11.16 BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 16 mm Travel, 9 lb. Load | |||||
 | BM11.25 BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 25 mm Travel, 9 lb. Load | |||||
 | BM11.5 BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 5 mm Travel, 9 lb. Load | |||||
 | BM17.04N BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 4 mm Travel, 23 lb. Load | |||||
 | BM17.25 BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 25 mm Travel, 23 lb. Load | |||||
 | BM17.51 BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 51 mm Travel, 23 lb. Load | |||||
 | BM25.40 BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 40 mm Travel, 100 lb. Load | |||||
 | BM25.63 BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 63 mm Travel, 100 lb. Load | |||||
 | BM30.10 BM Thread-Mount Micrometer HeadsMicrometer Head, Standard Resolution, 10 mm Travel, 90 lb. Load |
Specifications
Features
Not Just for UMR & MVN Series Stages
Although these micrometers are the standard choice of actuator on UMR and MVN series Stages, their threaded bezel allows them to be used in a variety of applications where precise positioning is required.
Threaded Lock Collar Advantages
The threaded collar found on all BM Series micrometers not only allows easy front-side installation, it also allows the user to fine tune the distance between the micrometer's tip and the contact point.
Compatible Newport Stages & Mounts
BM Series Micrometers are compatible with the following manual stages and mounts.
- UMR3 Series
- UMR5 Series
- UMR8 Series
- UMR12 Series
- MVN Series
- TGN Series
- SL Series
- SL-A Series
